SecoTest
Cross Hatch Cutter for ISO 2409 and ASTM D3359-02 Testing

Exceptionally strong and handy cross hatch cutter made on the lines of DIN EN ISO 2409 and ASTM D3359-02 to conduct cross cut tests. The SecoTest is used for the assessment of adhesiveness of single or multiple coatings (varnishes, synthetic materials, etc.) on hard (steel) and soft (wood) substrates.

Exceptionally strong and handy cross hatch cutter made on the lines of DIN EN ISO 2409 and ASTM D3359-02 to conduct cross cut tests. The SecoTest is used for the assessment of adhesiveness of single or multiple coatings (varnishes, synthetic materials, etc.) on hard (steel) and soft (wood) substrates.

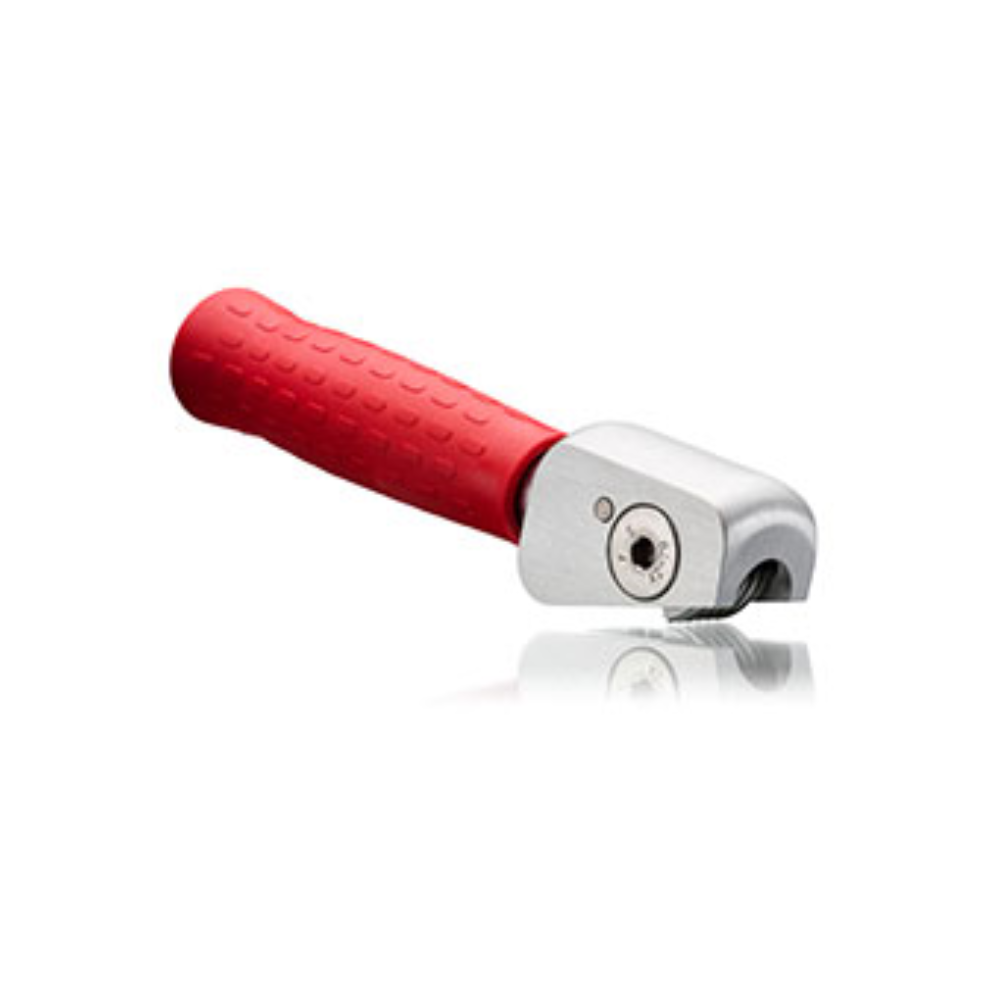

The cross cut testers of the SecoTest series consist of a sturdy holder for the six-edge multi cutting blade and a rotatable non-slip grip, which prevents the multi cutting blade from canting.

To ensure that this procedure is repeatable, put the test object through a suitable conditioning process (see DIN EN ISO 2409, section 6); while testing at construction sites make a note of the ambient conditions in the test report.

The procedure defined by ISO 4642 can be employed to measure adhesiveness.

Complete Kit

The SecoTest includes:

  • SecoTest
  • Allen key for changing the multi cutting blade
  • Magnifier
  • Brush
  • Short operating instructions
  • Works Certificate
  • Plastic carrying case

Blades are sold separately



Item Descrıptıon
80-810-0000
SecoTest Cross Hatch Cutter Handle – BLADES SOLD SEPARATELY

FEATURES

  • High-grade, tool-steel multi cutting blade in 4 different models with standard cutting-edge geometry
  • Movable cutter head
  • Multi cutting blade with 6 cutting edges
  • Versions for tests according to DIN EN ISO 2409 and ASTM D 3359
  • Cutting edges lie on the surface
  • With Magnifying glass for clear evaluation of the cut edges

SPECIFICATIONS

SecoTest 1
Coating Thickness up to 60 µm on hard substrates (e.g. metal, plastics)
6 x 1 mm Number of cutting edges x distance (mm)
Norm DIN EN ISO 2409
— —
SecoTest 2
Coating Thickness up to 60 µm on soft substrates (e.g. wood, render)
Coating Thickness from 61 µm to 120 µm on hard and soft substrates
6 x 2 mm Number of cutting edges x distance (mm)
Norm DIN EN ISO 2409
— —
SecoTest 2
Coating Thickness from 51 µm to 125 µm
6 x 2 mm Number of cutting edges x distance (mm)
Norm ASTM D 3359
— —
SecoTest 3
Coating Thickness from 121 µm to 250 µm on hard and soft substrates
6 x 3 mm Number of cutting edges x distance (mm)
Norm DIN EN ISO 2409
— —
SecoTest 4
Coating Thickness up to 50 µm
11 x 1 mm Number of cutting edges x distance (mm)
Norm ASTM D 3359
— —
Dimensions 18 x 3,8 x 3 cm
Weight 330 gram
