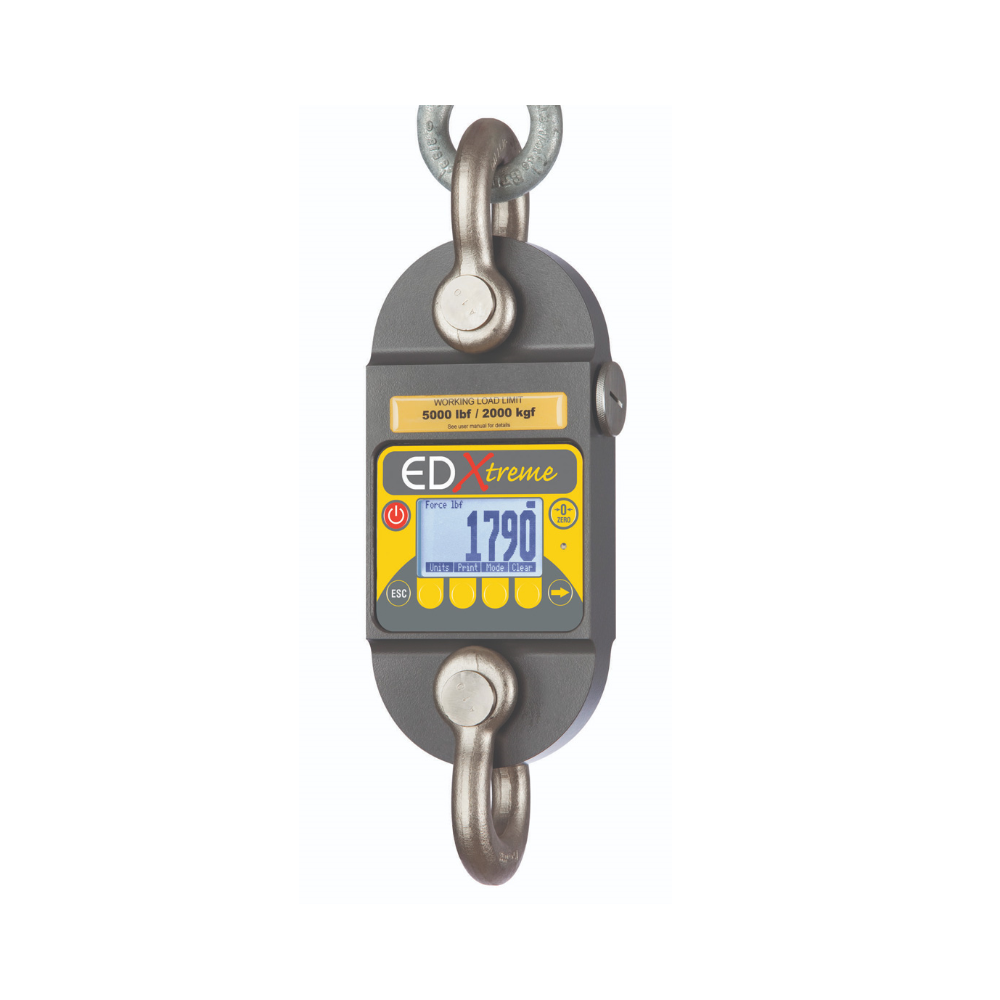

The EDxtreme exemplifies the trademark precision and rugged construction of Dillon dynanometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety.
While the EDxtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDxtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single locations – it is the definition of application versatility.
Xtreme Engineering
Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon’s experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.
- Superior strength and corrosion resistance – High capacity models are constructed of electroless nickel-plated aircraft-quality alloy steel. Lower capacity models are anodized aircraft-quality aluminum
- 5:1 factor of safety – This measure of strength and safety is maintained at all capacities. Computer modeling confirms the low stress and long product life that is inherent in the EDxtreme design.
- Retained hardware – Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging.
- NEMA 4X/IP55 – The EDxtreme is clearly the choice for reliability in any environment – in-plant or out on the job site.
Xtreme Accuracy: 0.1%
High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDxtreme meant taking the time to ensure that material characteristics, load element design and strain gage meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution mode of 1 part in 5000 provides the level of readability needed for refined weighing.
Xtreme Ease
- Exclusive SOFTKEY interface –Dillon has eliminated confusing menus for faster setup and simple operation. IN addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurements.
- Wide-angle LCD –Provides improved readability over a wider viewing angle and is available with back lighting for low light conditions.
- Battery operation –The EDxtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement.
NIST Traceable – The EDxtreme comes with a NIST traceable calibration certificate.
Force Ranges
| Model | Capacıty | Std. Res.* |
Enh. Res.* |
Body Constructıon |
|---|---|---|---|---|
| EDx-1T | 2,500 lbf 1,000 kgf 10,000 N |
2 1 10 |
0.5 0.2 2 |
Aircraft quality 2024 Aluminum 700% overload max. |
| EDx-2T | 5,000 lbf 2,000 kgf 20,000 N |
5 2 20 |
1 0.5 5 |
Aircraft quality 2024 Aluminum 700% overload max. |
| EDx-5T | 10,000 lbf 5,000 kgf 50,000 N |
10 5 50 |
2 1 10 |
Aircraft quality 2024 Aluminum 700% overload max. |
| EDx-10T | 25,000 lbf 10,000 kgf 100,000 N |
20 10 100 |
5 2 20 |
Aircraft quality E4340 Alloy Steel 500% overload max. |
| EDx-25T | 55,000 lbf 25,000 kgf 250,000 N |
50 20 200 |
10 5 50 |
Aircraft quality E4340 Alloy Steel 500% overload max. |
| EDx-50T | 100,000 lbf 50,000 kgf 500,000 N |
100 50 500 |
20 10 100 |
Aircraft quality E4340 Alloy Steel 500% overload max. |
| EDx-75T | 160,000 lbf 75,000 kgf |
100 50 |
50 20 |
Aircraft quality E4340 Alloy Steel 400% overload max. |
| EDx-100T | 220,000 lbf 100,000 kgf |
200 100 |
50 20 |
Aircraft quality E4340 Alloy Steel 400% overload max. |
| EDx-150T | 330,000 lbf 150,000 kgf |
200 100 |
100 50 |
Aircraft quality E4340 Alloy Steel 400% overload max. |
| EDx-250T | 550,000 lbf 250,000 kgf |
500 200 |
200 50 |
Aircraft quality E4340 Alloy Steel 400% overload max. |
*Enh. Res. = Enhanced Resolution
