Special Features
- 2 operation modes:
real time – display the actual tension or compression force
peak force – to measure the peak force during a test - Force measuring device with high sampling rate of 2000 times/sec for fast acquisition of peak values
- Display update time 16 times/sec
- Easy to read OLED display
- Programmable high/low set-points for go/no-go testing:
with color-coded LED display: underrun (-NG) – good (OK) – exceeding (+NG) and relay outputs - Output signal:
– RS-232 (adjustable baud rate from 9600 up to 57600 for connecting a PLC)
– analog ±2 V DC
– USB for fast data transfer to a PC - Display can be reversed for inverted use
- »Zero Set« to zero the gauge in all operating positions
- Force gauge with user switchable units: N, kN, kgf, lbt, N-m, N-cm, kgf-m, kgf-cm, lbf-in and ozf-in
Standard Features

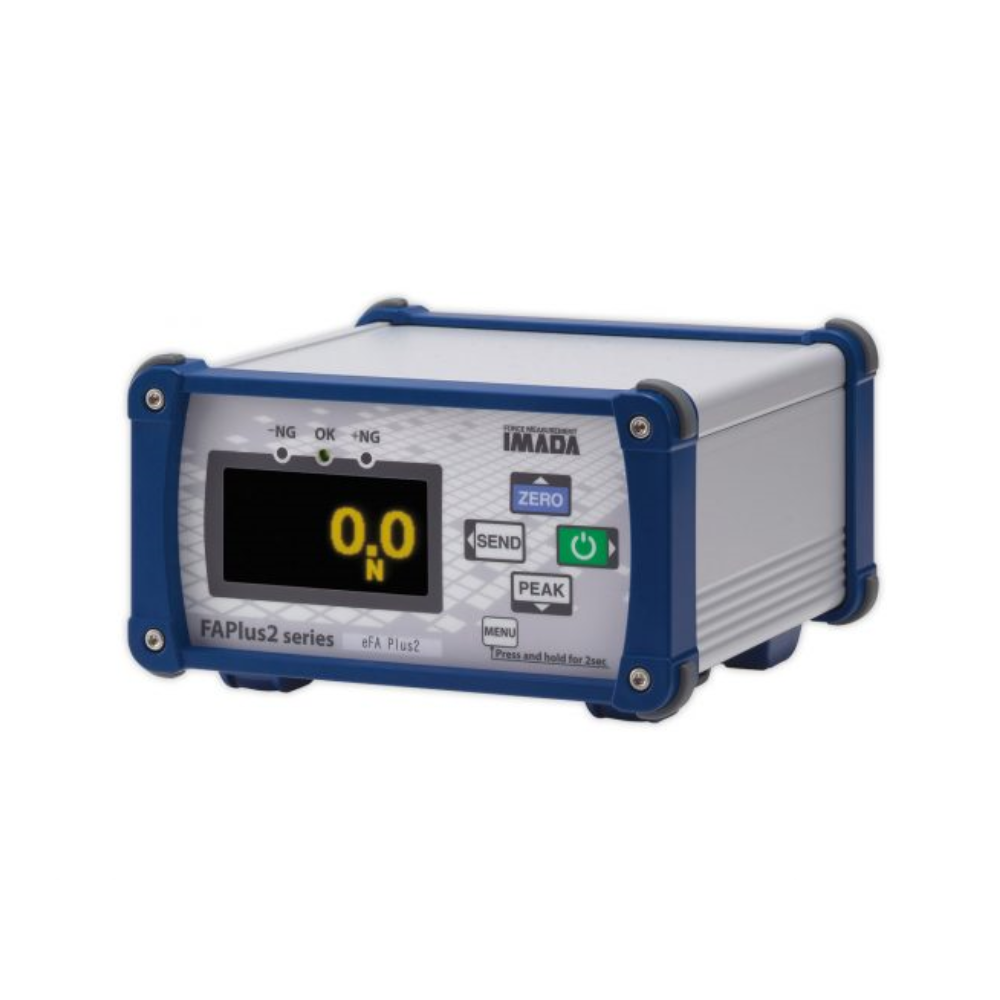

- Digital force analyzer FA Plus2 can be used with numerous load cells for different applications
- Force measuring device for exact measuring with the accuracy of connected load cell
- 200 % overload protection
- Rugged housing
- Mains operation
