S Type-Diagram push pull force gauge

Brief Introduction:

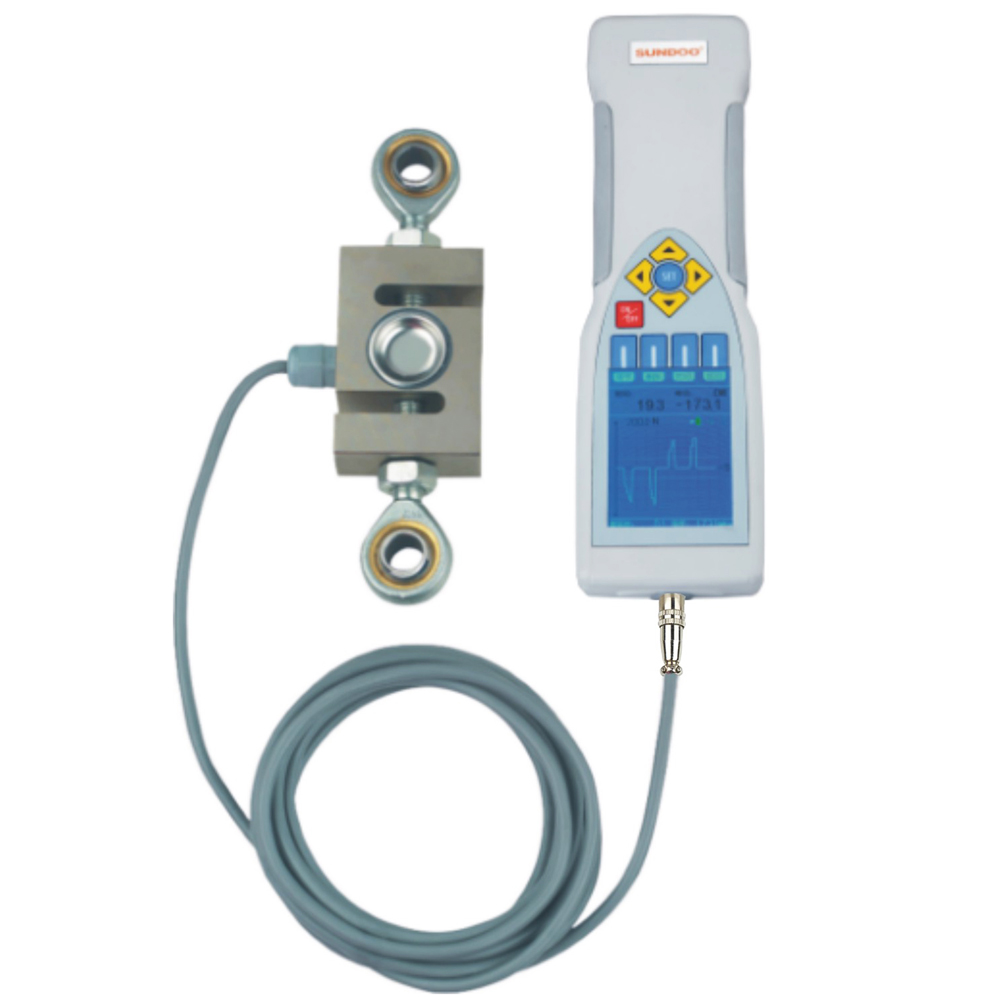

Product Name:SP Diagram push pull force gauge(S Type)
SP Series Diagram Push Pull Force Gauge with compact size and high accuracy, is the first type push pull force gauge adopting TFT LCD, and realizing peak value, instantaneous value, and curve of testing process displayed on one page of the screen. It’s easy to operate, handy to carry out. The curve monitors the whole testing process. The force gauge can be used not only for simple measurement of tension/compression force, but also used for various testing purposes, such as switch test, connector insertion/withdraw test, and fracture test. It also can be easily installed on various test stand matching with clamps/hooks to perform multipurpose measurement.

PRODUCT TRAIT

  • High accuracy and high resolution;
  • TFT LCD displaying peak value, instantaneous value, and curve of testing process on one page, monitoring and tracking the whole testing process, 240*320 pixel with color of TFT65535;
  • Overturning display screen;
  • Four units (N, kgf, lbf, ozf) convert automatically;
  • Testing the material intensity by inputting the material’s cross sectional area, displaying the material’s intensity curve;
  • USB data port, supporting hot plug;
  • Memory, transmit, track testing curve data unlimitedly by connecting PC with configured software;
  • Print form by user-defined with the matched software;
  • Design of automatic power-off when having no operation, the time is set by users;

Note:Due to updates and improvement,products shape and color depends on specific products.Please contact us if you have any problems.
