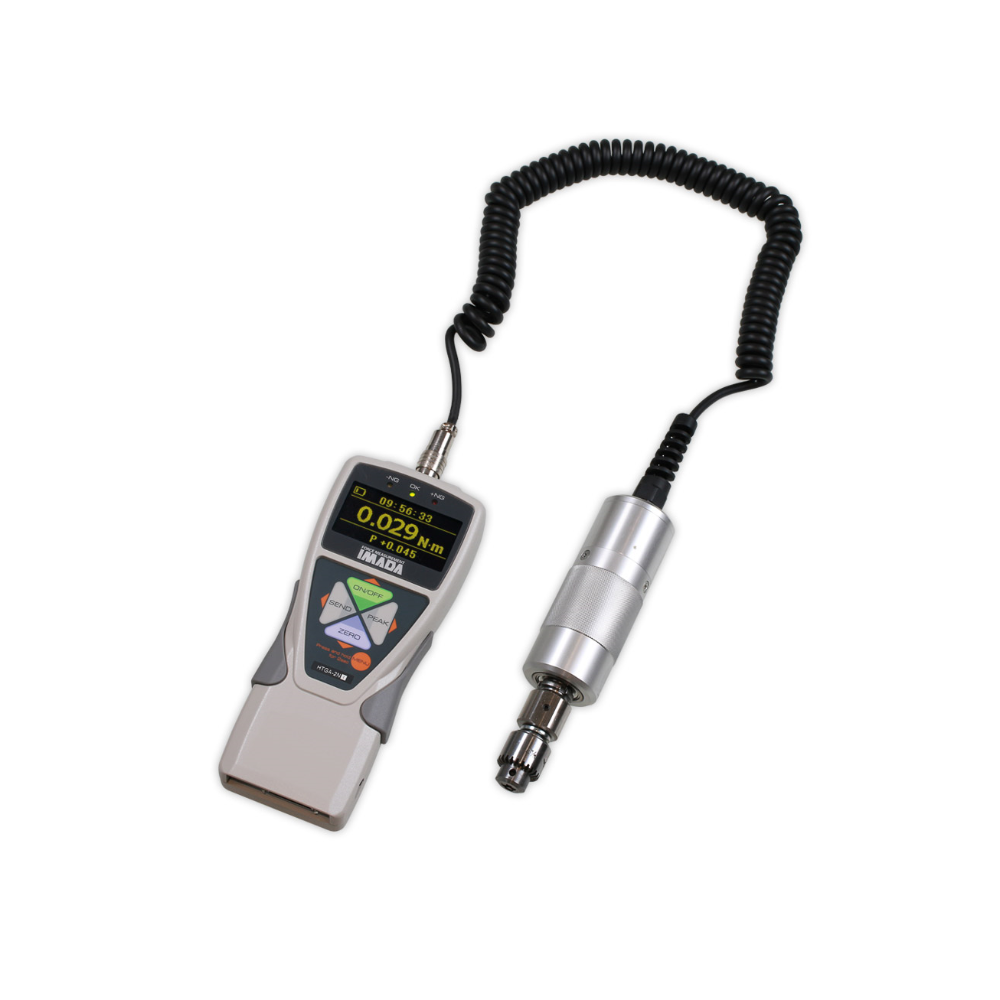

HTGS and HTGA
Torque Meter

Measuring ranges 50.00 Ncm/2.000 Nm/5.000 Nm/10.00 Nm
resolution 0.01 Ncm/0.001 Nm/0.01 Nm

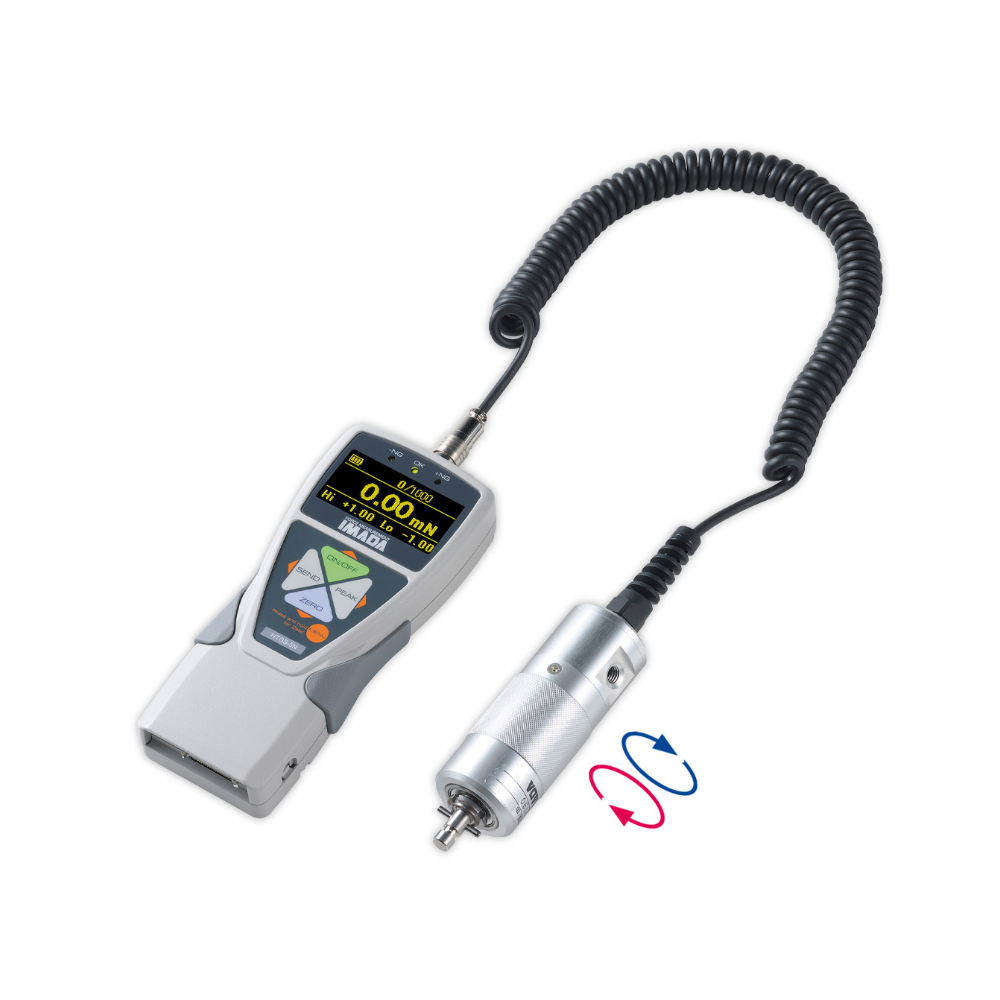

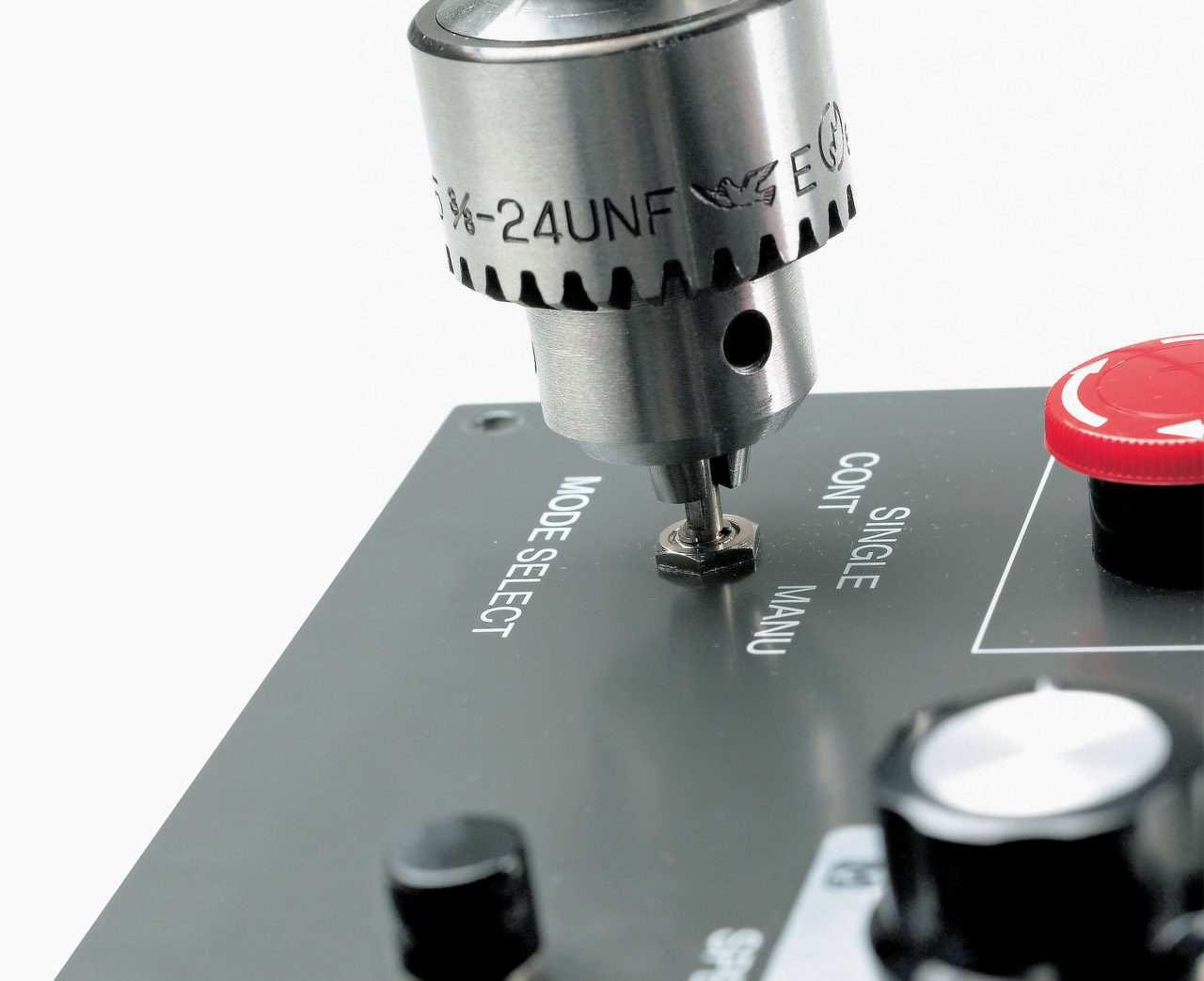

Hand-held torque meter with separate sensor for measuring the torque of screws, components, screw and plug connectors, drive shafts etc.

Mains and battery operation with memory and output signal

Torque meter with digital output signal for data processing with a PC

Special Features

  • 2 selectable modes:
    – Real Time: to display torque transition
    – Peak Mode: to capture the peak torque achieved during a test
  • Display of opening or closing torque (clockwise and counterclockwise torque)
  • Torque meter with high internal sampling rate of 2000 times/sec
  • Display update time 16 times/sec

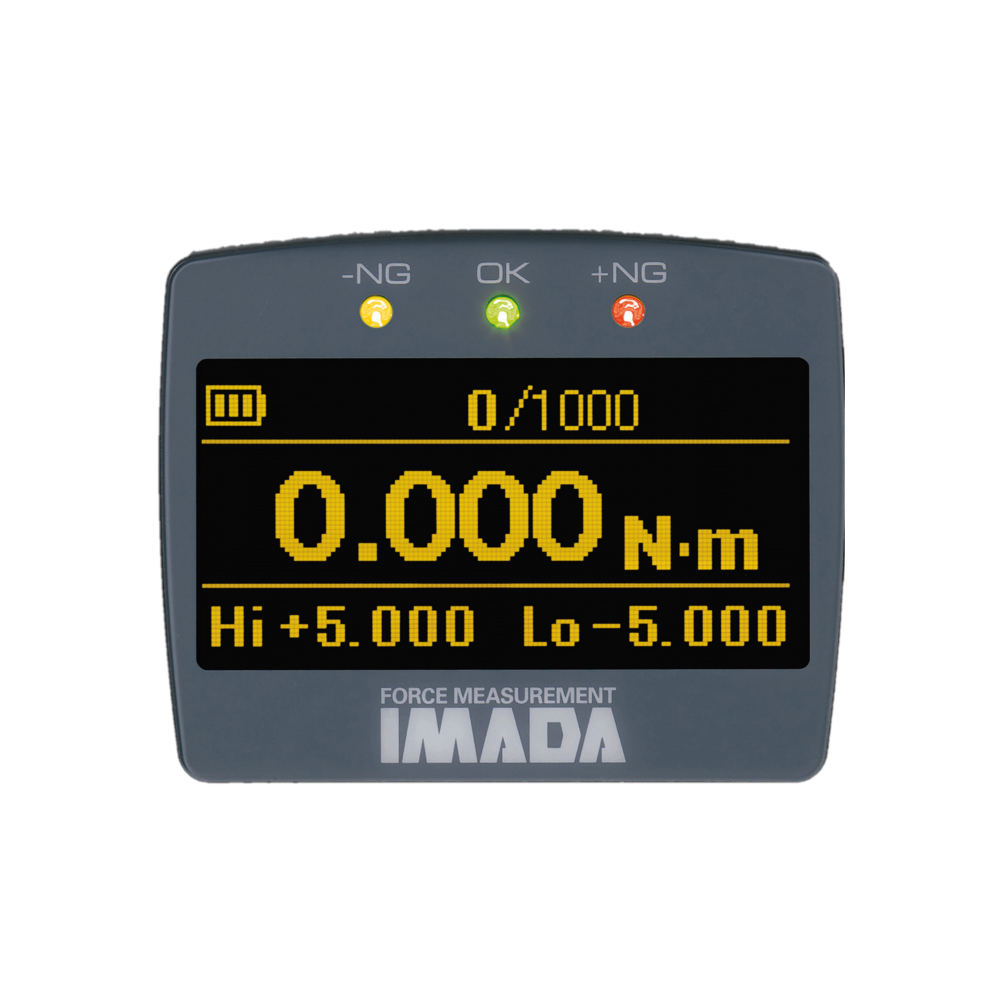

  • Easy to read Display (OLED)
  • Selectable units: Nm, Ncm, kgfm, kgfcm, Lbf.in or ozf.in
  • Multi language set up menu: English, German, Spanish, French, Italian, Chinese, Japanese, Korean
  • Programmable high/low setpoints for go/no-go testing with color-coded indicators (orange, green, red) in the LED display and relay outputs
  • Storage of 1000 values for recall:
    – on the display
    – for data transfer to PC
    – for printing with report

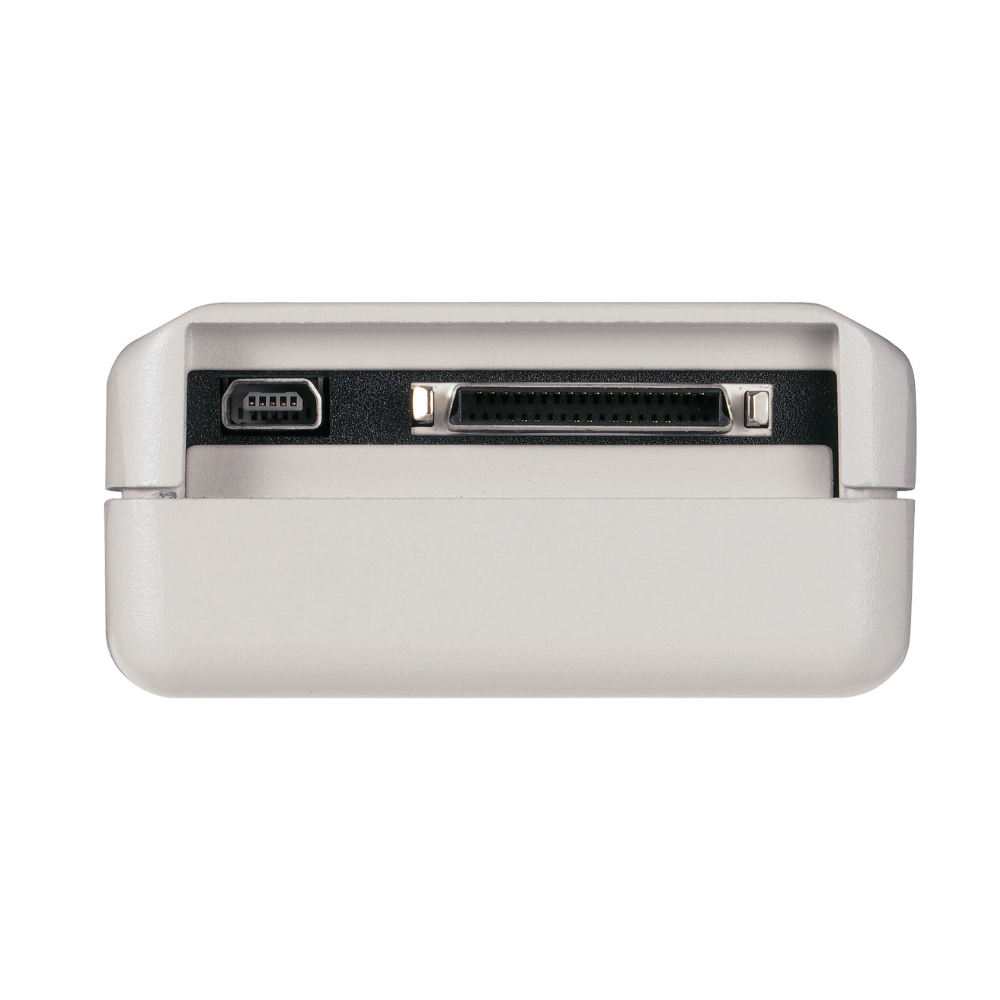

  • 4 output signals: USB, RS-232 and analog
  • 6 different sensor attachments are available
  • The torque sensors of torque meter HTGS-10N and HTGA-10N includes an additional supporting handle for better operation

Special features of model HTGA in comparison to standard unit HTGS:

  • Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
  • 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
  • Indication of two peak values per measurement.

Standard Features

  • Inclusive 30 days trial version of Software »Force Recorder Professional«
  • Torque measuring unit for fast, accurate measuring
  • High repeatability
  • Easy to use
  • Manufacturer`s certificate with measured values is included

 Available Models

Model Model Measuring Range
 Resolution
HTGS-0.5N HTGA-0.5N 0 – 50.00 Ncm 0.01 Ncm
HTGS-2N HTGA-2N 0 – 2.000 Nm (200 Ncm) 0.001 Nm (0.1 Ncm)
HTGS-5N HTGA-5N 0 – 5.000 Nm (500 Ncm) 0.001 Nm (0.1 Ncm)
HTGS-10N HTGA-10N 0 – 10.00 Nm (1000 Ncm) 0.01 Nm (1 Ncm)

 Delivery includes no sensor attachment!

SPECIFICATIONS

Accuracy: ±0.5 % full scale ±1 digit
Measuring frequency: 2000 times/sec
Selectable units: Nm, Ncm, kgfm, kgfcm, Lbf.in, and ozf.in
Display: OLED, 4 digit, 14 mm high
Overload capacity: Approx. 200 % full scale, flashing display beyond 110 % full scale
Display update: 16 times/sec
Memory: Internal memory for max. 1000 values (clockwise or counter clockwise torque and peak values)
Setpoints: MIN (-NG), MAX (+NG) programmable, with output signal
Output signal: USB
RS-232 (8, 1, N, 19200)
analog ±2 V DC
Open Collector-Comperator 3 x (+NG, Ok, -NG)
overload signal
Temperature range: 0 – 40 °C
Air humidity: 80 % RH, max.
Power supply: Rechargeable NiMH batteries (approx. 6.5 hours continuous use,
approx. 2 h charging time) and/or 100 – 240 V AC adapter
and two adapters(EU/USA)
Dimensions: Display unit: 187 x 75 x 34 mm (LxWxH)
Sensor: 183 x 39 mm (LxØ)
Weight: (approx.): Display unit: 490 g / sensor: 530 g (without pin chuck)
complete set 2000 g
Additional functions of HTGA in comparison to standard torque meter HTGS:
Torque-angle-measurement: In combination with a test stand with linear scale torque-angle-measurements are possible
Memory: Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
High low output: 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices
(e.g. PC, printer) for data recording
Extended peak mode: Indication of two peak values per measurement

Specifications subject to change without notice!

SENSOR ATTACHMENT

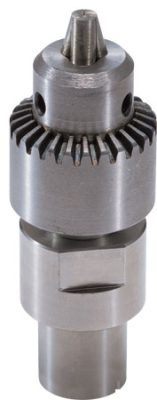

HT-DC-6.5 – Torque Pin Chuck Ø 0.5 up to 6.5 mm

Ø 0.5 to 6.5 mm (not available for torque meter HTGS and HTGA with 0.5 Nm nominal load)
Order number: HT-DC-6.5





















HT-DC-6.5SUS – Torque Pin Chuck Ø 0.5 up to 6.5 mm, Stainless Steel

Ø 0.5 to 6.5 mm, stainless steel (not available for torque meter HTGS and HTGA with 0.5 Nm nominal load)
Order number: HT-DC-6.5SUS

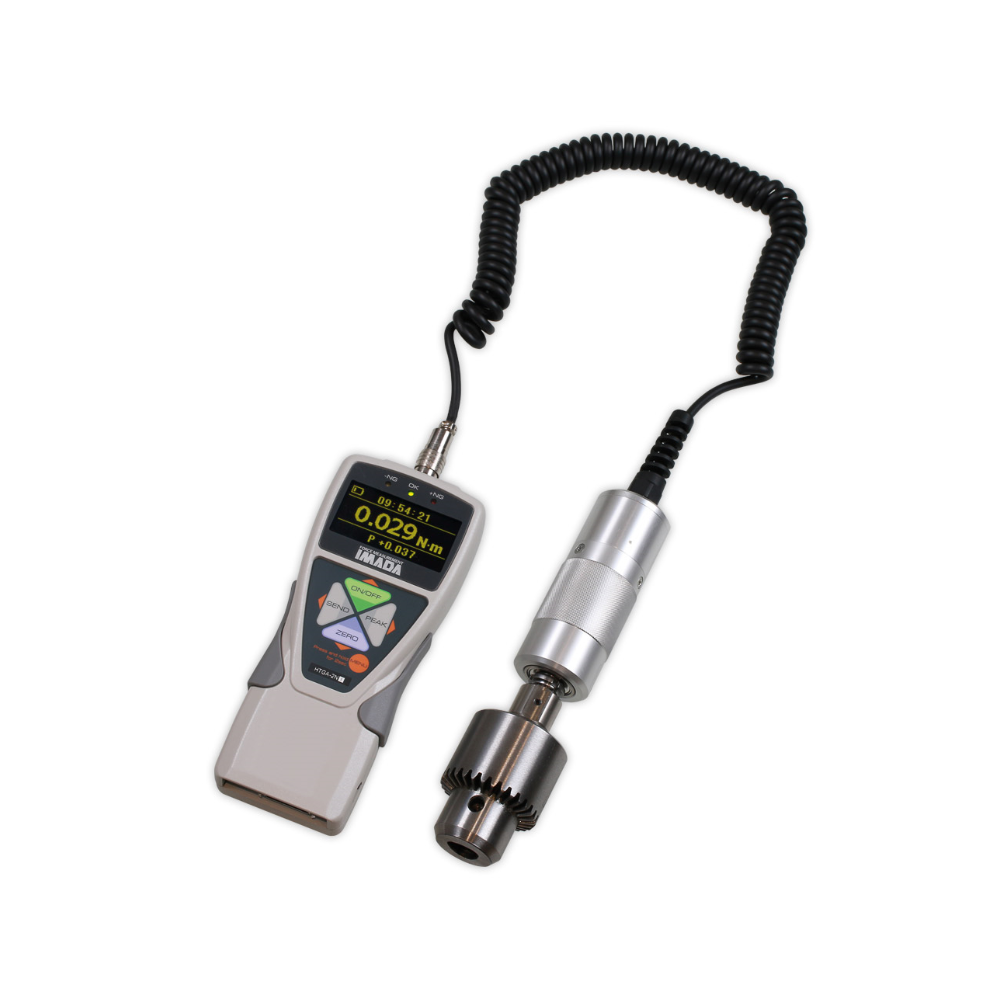

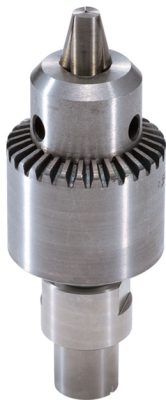

HT-DC-13 – Torque Pin Chuck Ø 1.2 up to 13 mm

Ø 1.2 to 13 mm (not available for torque meter HTGS and HTGA with 0.5 and 2 N nominal load)
Order number: HT-DC-13

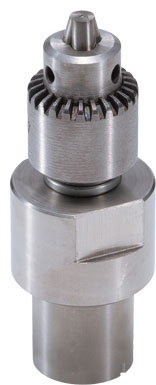

HT-DC-4 – Torque Pin Chuck Ø 0.5 up to 4 mm

Ø 0.5 mm up to 4 mm
Order number: HT-DC-4





















HT-9.5SQ – Socket Holder

3/8″ square drive male
Order number: HT-9.5SQ

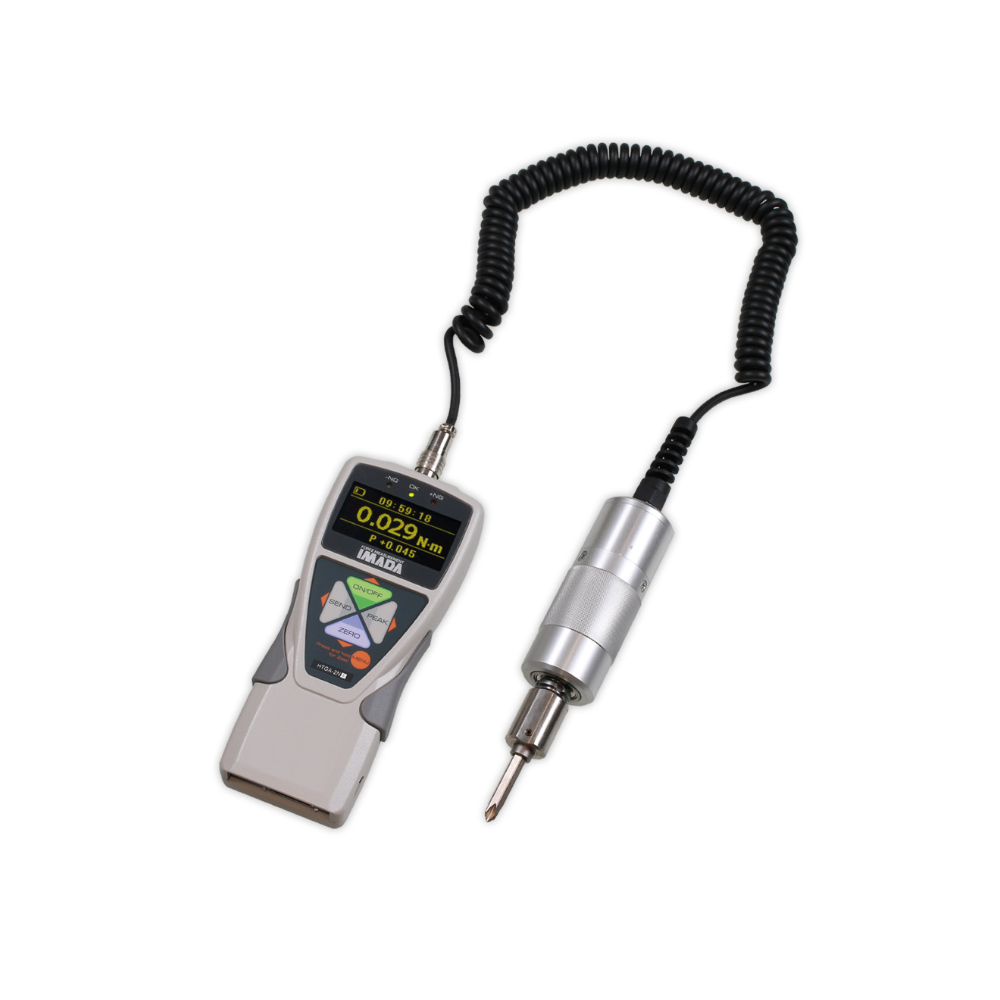

HT-DBH – Bit-Adapter

1/4″ female square drive with 3 Pins (Phillips No. 1, No. 2 and screw blade 6.3 mm)
Order number: HT-DBH















HT-AD-M10 – Adapter

M10 male thread
Order number: HT-AD-M10

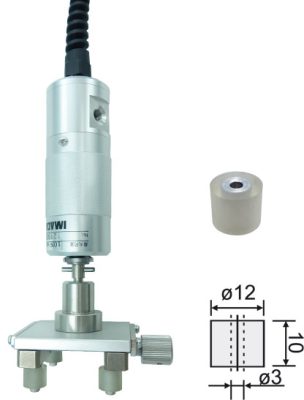

HT-ST – Small Table with 10 mm Urethane Pins for max. 5 Nm nominal load

Only for HTGS-2N, HTGS-5N, HTGA-2N and HTGA-5N
For samples with Ø of 7 up to 50 mm.
Inclusive table pins (ST-P) with urethane surface, length 10 mm.
Recommended for locks, containers for eye drops, etc.
Order number: HT-ST

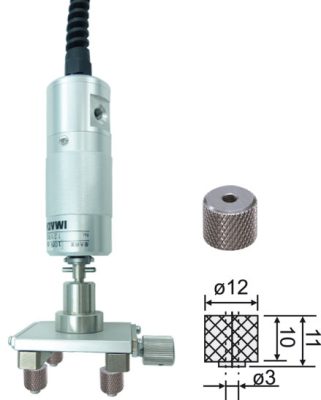

HT-ST-01 – Small Table with V2A Pins for max. 5 Nm nominal load

Only for HTGS-2N, HTGS-5N, HTGA-2N and HTGA-5N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for electronic components, plugs, etc.
Order number: HT-ST-01

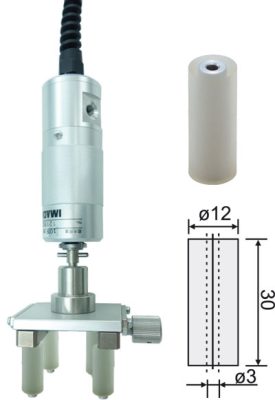

HT-ST-02 – Small Table with 30 mm Urethane Pins for max. 5 Nm nominal load

Only for HTGS-2N, HTGS-5N, HTGA-2N and HTGA-5N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for cosmetics boxes, door knobs, lamps, etc.
Order number: HT-ST-02

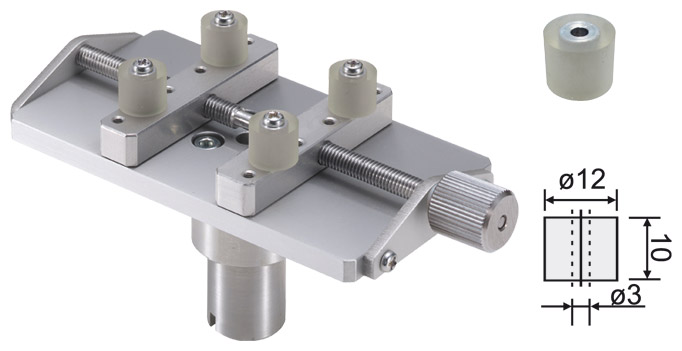

HT-STW – Small, wide Table with 10 mm Urethane Pins for max. 5 Nm nominal load

Only for HTGS-2N, HTGS-5N, HTGA-2N and HTGA-5N
For samples with Ø from 10 up to 100 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Order number: HT-STW

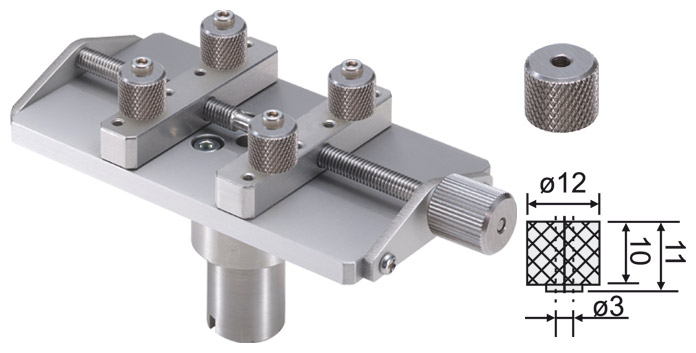

 HT-STW-01 – Small, wide Table with 10 mm V2A Pins for max. 5 Nm nominal load

Only for HTGS-2N, HTGS-5N, HTGA-2N and HTGA-5N
For samples with Ø from 10 up to 100 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Order number: HT-STW-01

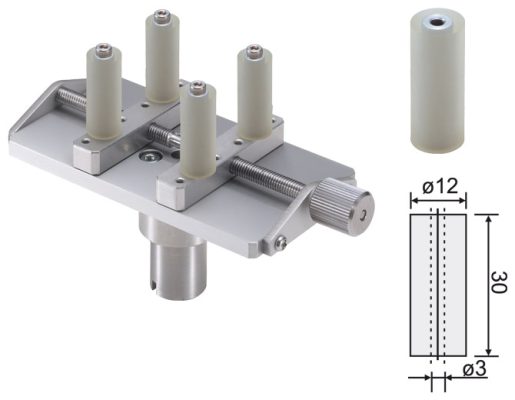

HT-STW-02 – Small, wide Table with 30 mm Urethane Pins for max. 5 Nm nominal load

Only for HTGS-2N, HTGS-5N, HTGA-2N and HTGA-5N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Order number: HT-STW-02

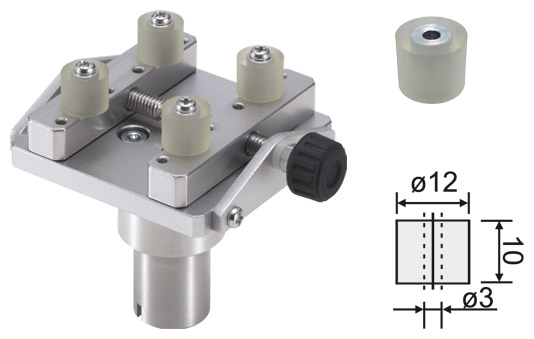

HT-STL – Small Table with 10 mm Urethane Pins for max. 2 Nm nominal load

Only for HTGS-0.5N, HTGS-2N, HTGA-0.5N and HTGA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Recommended for plastic tubes, etc.
Order number: HT-STL

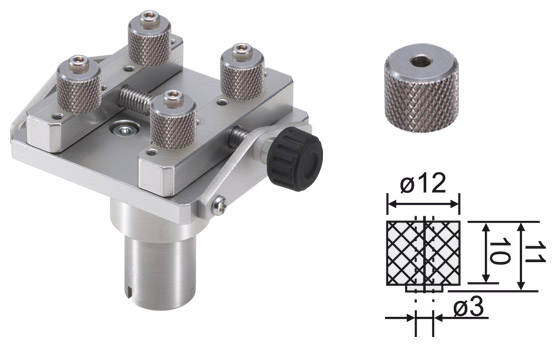

HT-STL-01 – Small Table with 10 mm V2A Pins for max. 2 Nm nominal load

Only for HTGS-0.5N, HTGS-2N, HTGA-0.5N and HTGA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for motors, etc.
Order number: HT-STL-01

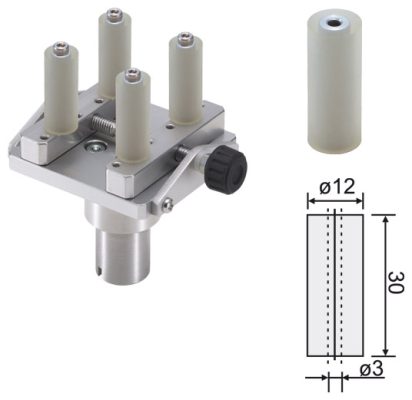

HT-STL-02 – Small Table with 30 mm Urethane Pins for max. 2 Nm nominal load

Only for HTGS-0.5N, HTGS-2N, HTGA-0.5N and HTGA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for cosmetic containers, etc.
Order number: HT-STL-02

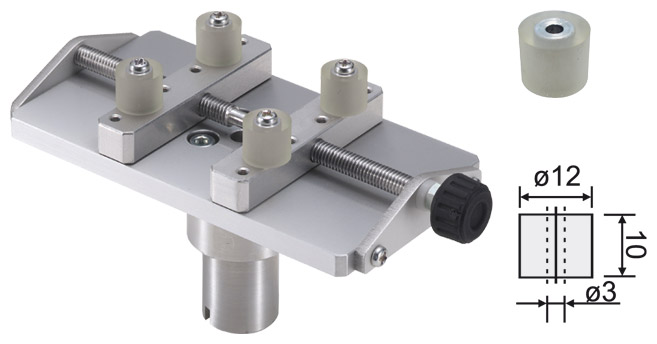

HT-STLW – Small, wide Table with 10 mm Urethane Pins for max. 2 Nm nominal load

Only for HTGS-0.5N, HTGS-2N, HTGA-0.5N and HTGA-2N
For samples with Ø from 10 up to 100 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Recommended for volume dials, etc.
Order number: HT-STLW

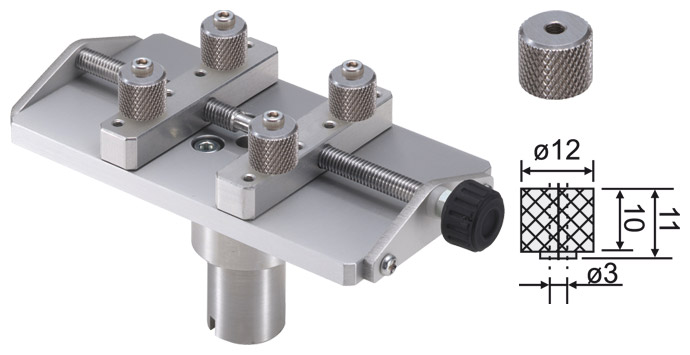

HT-STLW-01 – Small, wide Table with 10 mm V2A Pins for max. 2 Nm nominal load

Only for HTGS-0.5N, HTGS-2N, HTGA-0.5N and HTGA-2N
For samples with Ø from 10 up to 100 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for motors, etc.
Order number: HT-STLW-01

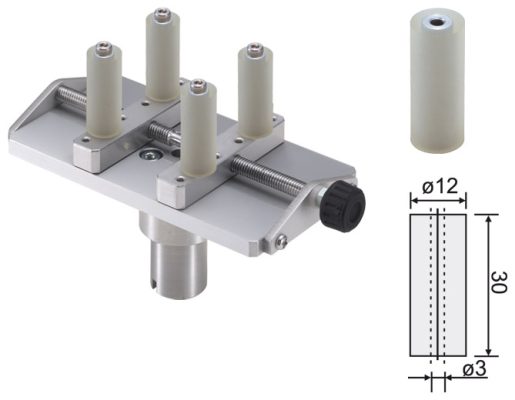

HT-STLW-02 – Small, wide Table with 30 mm Urethane Pins for max. 2 Nm nominal load

Only for HTGS-0.5N, HTGS-2N, HTGA-0.5N and HTGA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for bottle shaped containers, etc.
Order number: HT-STLW-02

STANDARD ACCESSORIES

Software ZT Logger

USB cable approx. 1.5 m long, CD-ROM with USB-driver and software “ZT-Logger” for data transfer

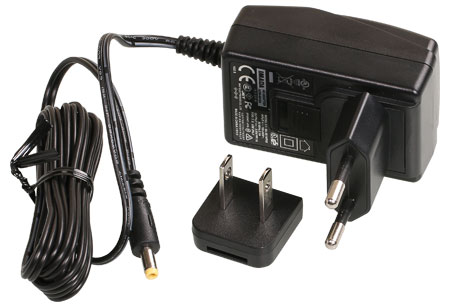

 ADW-6010 – AC Adapter

AC-adapter for 100 – 240 V AC
Order number: ADW-6010



OPTIONAL ACCESSORIES

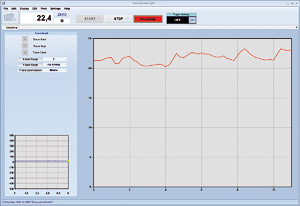

SW-21 – Force Recorder Light

Software for data acquisition by USB output
– Force-time graph
– Force gauge function setting
– Data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-21





 SW-22 – Force Recorder Standard

Additional functions in comparison to Force Recorder Light:
5 graphs at maximum can be displayed in a table
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-22

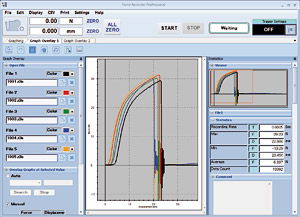

 SW-23 – Force Recorder Professional

Additional function in comparison to Force Recorder Light
– 5 graphs at maximum can be displayed in a table
– Force-displacement graphing (possible only in combination with a test stand with linear
scale)
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-23

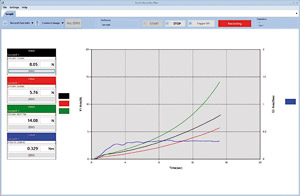

SW-26 – Force Recorder Plus

Software for Data acquisition by USB output:
– 10 graphs at maximum can be displayed in a table
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 8/8.1/10
Order number: SW-26

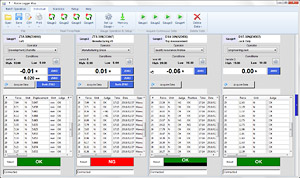

SW-13 – Force Logger Plus

Software for Data acquisition by USB output:
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-13





ST-P – Table Pins 10 mm Urethane

1 set (4 pieces), 10 mm long with urethane surface for the small table.
Recommended for locks, containers for eye drops, etc.
Order number: ST-P

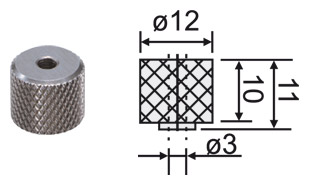

 ST-01-P – Table Pins V2A

1 set (4 pieces), 10 mm long from stainless steel for the small table.
Recommended for electronic components, plugs, etc.
Order number: ST-01P









ST-02P – Table Pins 30 mm Urethane

1 set (4 pieces), 30 mm long with urethane surface for the small table.
Recommended for cosmetics boxes, door knobs, lamps, etc.
Order number: ST-02P

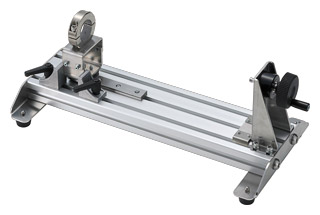

RSH-5N – Rotation support jig

Rotation support jig for conducting stationary torque measurements with torque meters HTGS and HTGA. Available in two different designs with and without angle-meter.

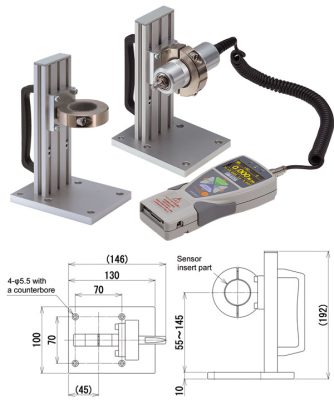

SHT-5N – Test Stand

For fixing the sensor horizontal or vertical (for torque meter HTGS and HTGA up to max. 5 Nm).
Weight 1.100 g
Order number: SHT-5N

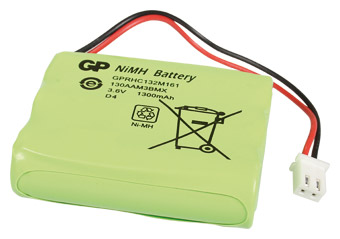

40018I – Accumulator

Nickel metal hydride accumulator, 2-pole connector
3.6 V, 1300 mAh
Order number: 40018I

CONNECTING CABLE(OPTIONAL)

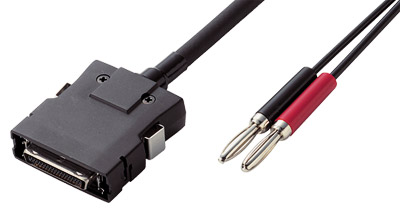

CB-108 – Connecting Cable analog

For analog output, for connection to a line recorder.
Length approx. 3 m
Order number: CB-108

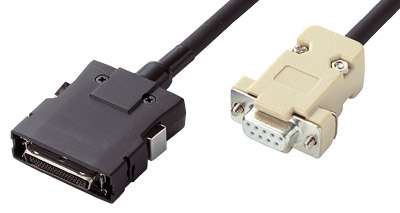

 CB-208 – Connecting Cable RS-232

For RS-232 output with sub D 9 female, for connection to PC.
Length approx. 3 m
Order number: CB-208

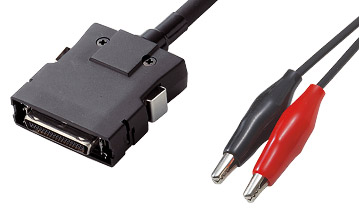

 CB-808 – Connecting Cable Trigger Input

For trigger input (input signal from an external device e. g. electronic switch to stop the measurement)
Order number: CB-808

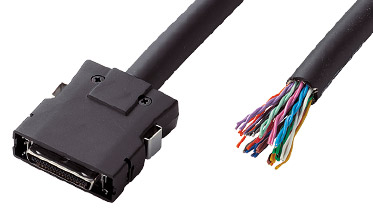

 CB-908 – Connecting Cable Open Ends

With open ends (37-pin) for all available output signals to connect an unique device.
Order number: CB-908

DELIVERY INCLUDES

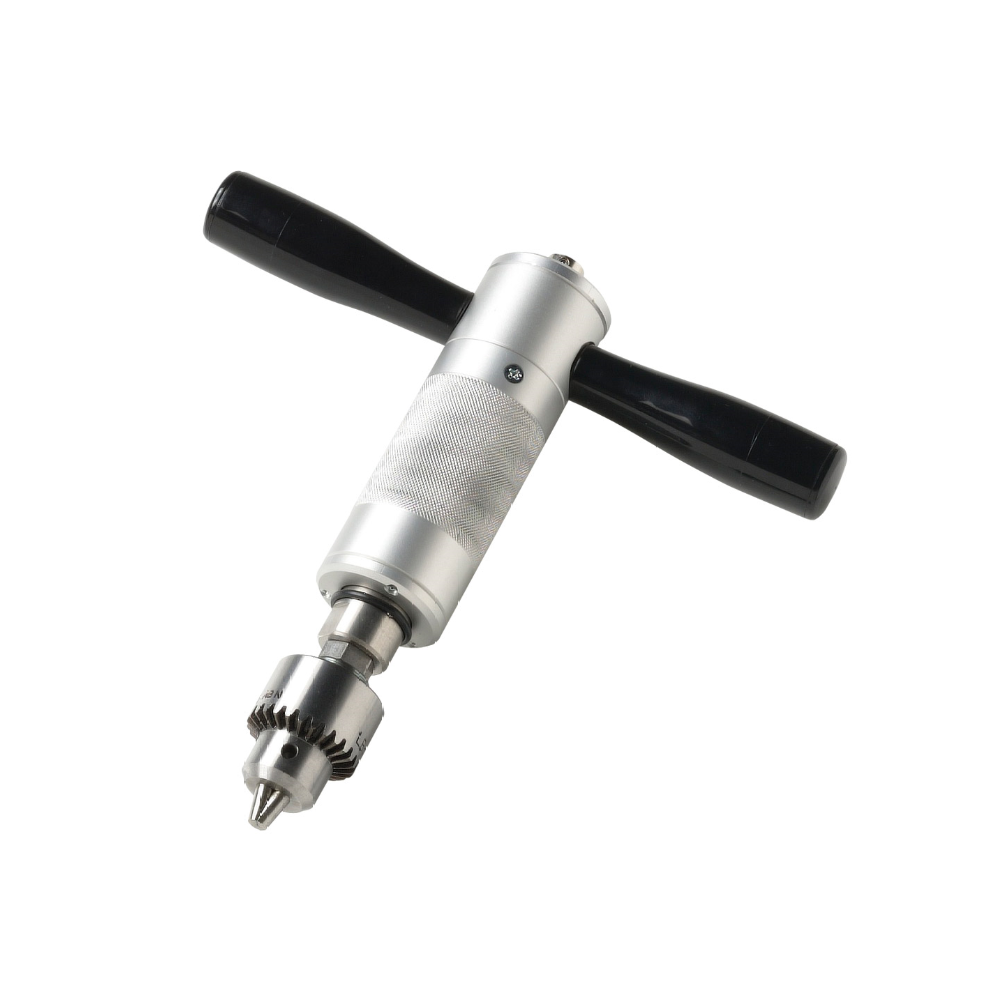

Torque meter with 1 torque sensor and without sensor attachment, handle (only HTGS/-A-10N), AC Adapter, carrying case, manufacturer`s inspection certificate, USB cable 1.5 m, USB adapter (only HTGA), CD-ROM with Driver, simple Software for communication and data logging »ZT-Logger« and operating instructions in English
