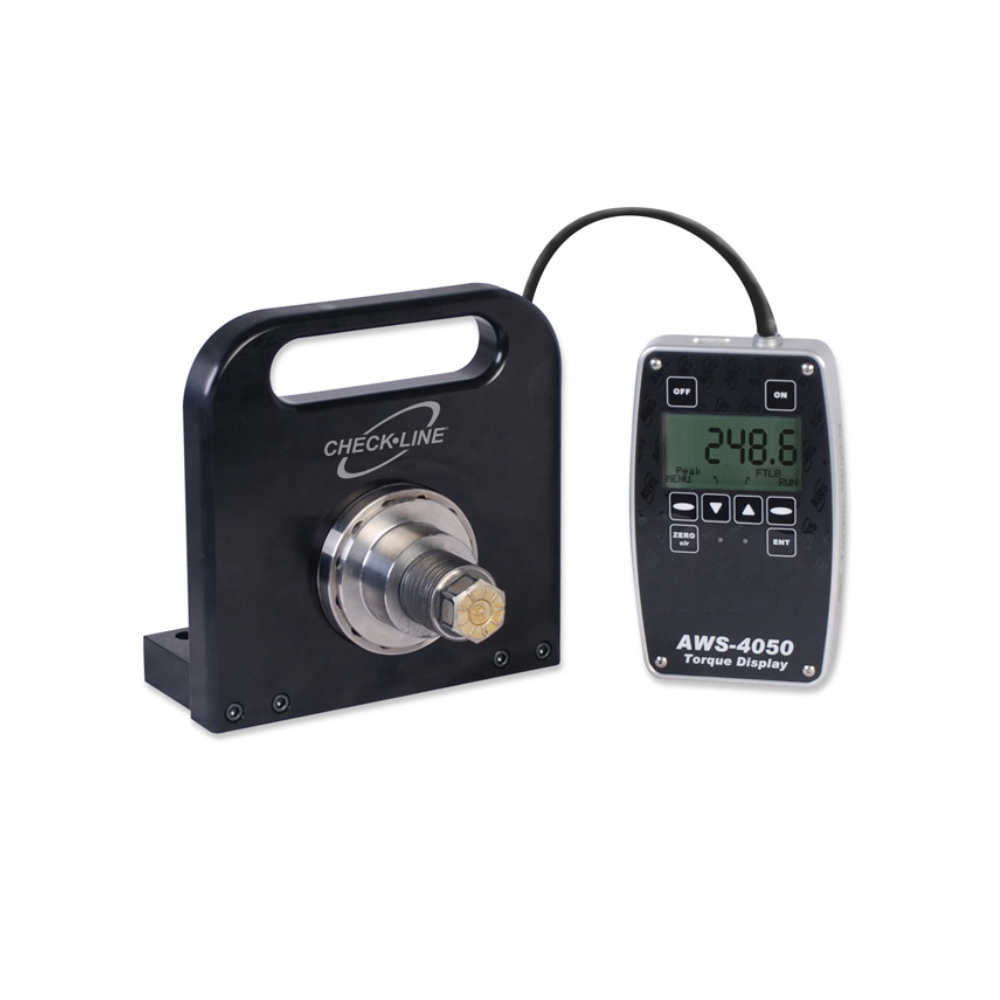

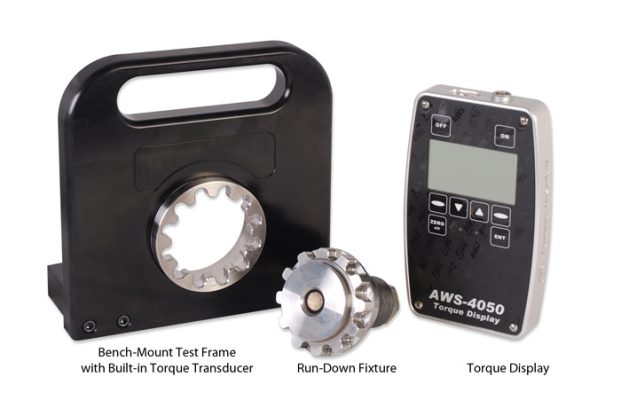

The TT-IMP impact torque wrench test system is specially designed with extra-rugged construction for the demanding job of testing impact tools. The flange-mounted transducer is fixed in a heavy-duty frame designed for secure bench top mounting. A digital display is connected remotely to isolate the electronics from the damaging vibrations caused by impact tools. A specially designed spline drive run-down-fixture simulates real-world application conditions, allowing the impact tool motor to ramp-up to freely rotate several times before building resistance to rotation.
The included digital indicator can display torque in lb-ft, N-m, Lb-in or Kg-m (selectable) with an accuracy of +/-1% (bi-directional with optional reverse threaded run-down-fixture).
The TT-41000 Series impact torque testers are designed to check tool operation and consistency. The measured torque value does not precisely indicate the effective clamp load of the bolt. It is common for tool manufacturer’s specified torque output to vary by +/-20% versus what the TT-41000 will indicate however the critical value is repeatability, not measured output.
The TT-IMP is designed for use with impact and impulse tools only. It is not compatible with hand torque wrenches or reaction tools. The display included with the TT-IMP can be used with our IT Transducers to extend its capabilities.
Torque Ranges
| Model | Calibrated Measuring Range | Drive Size |
|---|---|---|
| TT-410250F-IMP | 25 – 250 lb-ft / 34 – 340 Nm | |
| TT-410500F-IMP | 50 – 500 lb-ft / 68 – 680 Nm | |
| TT-4101000F-IMP | 100 – 1000 lb-ft / 135 – 1355 Nm | |
| TT-4102000F-IMP | 200 – 2000 lb-ft / 270 – 2700 Nm | 1.5″ Female Square |
| TT-4102500F-IMP | 250 – 2500 lb-ft / 340 – 3400 Nm | 1.5″ Female Square |
| TT-4105000F-IMP | 500 – 5000 lb-ft / 680 – 6800 Nm | 1.5″ Female Square |
| TT-4107500F-IMP | 750 – 7500 lb-ft / 1017 – 10170 Nm | 1.5″ Female Square |
TT-IMP Options
The test stand can be connected to the MTM or TT-3000 torque testers with external port option. They can also be configured with digital output for connection to a tablet or direct to your PC with our Tools software application. Inquire for details.
Notes for Impact Testing
Set filter on AWS-4050 Torque Display to 1000 Hz
Back off run-down between each test
Be aware of heat build-up, it breaks down the lubricant in the run-down fixture, increasing friction. Let the run-down cool after a few minutes of use (this will vary by torque range)
