Special Features
- Test stand HV-1000N with manual hand wheel operation for compression (push) and tension (pull) measurements
- Force gauge remains in position when hand wheel is released – ideal for “creep” testing rubber or other elastic materials
- Hand wheel operation allows you to position the gauge, hold it in place or advance it at a constant manual speed
- Max. capacity: 1000 N
- One turn of the hand wheel = 1.2 mm
- Travel distance 370 mm
- Test stand for the following force gauges up to 1000 N:
– mechanical – model PS and FB
– electronic – model DST, DSV, ZTS and ZTA
– electronic – model FGP and FGJN with adapter plate MP-S
Standard Features
- Large baseplate to take up a lot of clamps and testing devices
- Delivery of the test stand includes mounting screws for the force gauge
- Force gauge is not included
Available Models
| Model | Capacity | Description |
| HV-1000N | 1000 N | standard unit |
| HV-1000N-S | 1000 N | with distance measuring system |
| HV-1000N-L630 | < 1000 N | with extended stroke |

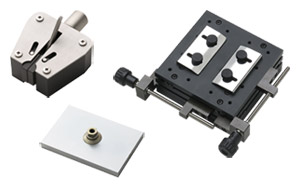

Depending on the application we have a lot of clamping tools and clamps for test stand HV-1000N in our program.

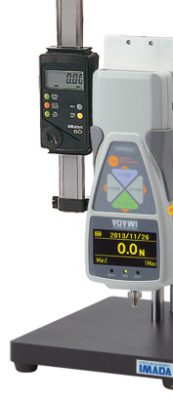

For exact determination of the travel distance, test stand HV-1000N can be equipped with a digital measuring system:
