Special Features
- 3 operation modes:
Single or continuous operation for constant test conditions
– manual operation: Feed continuous so long as button is pressed or he limit switch is reached
– continuous cycle operation: Force gauge travels a defined distance continuously up and down
– Jog mode: Moves the cross head exactly 0.01 mm - The adjusted speed is indicated in the display
- Integrated timer and counter function for accomplishment of endurance tests (To apply constant force for a certain number of strokes and/or at certain time.

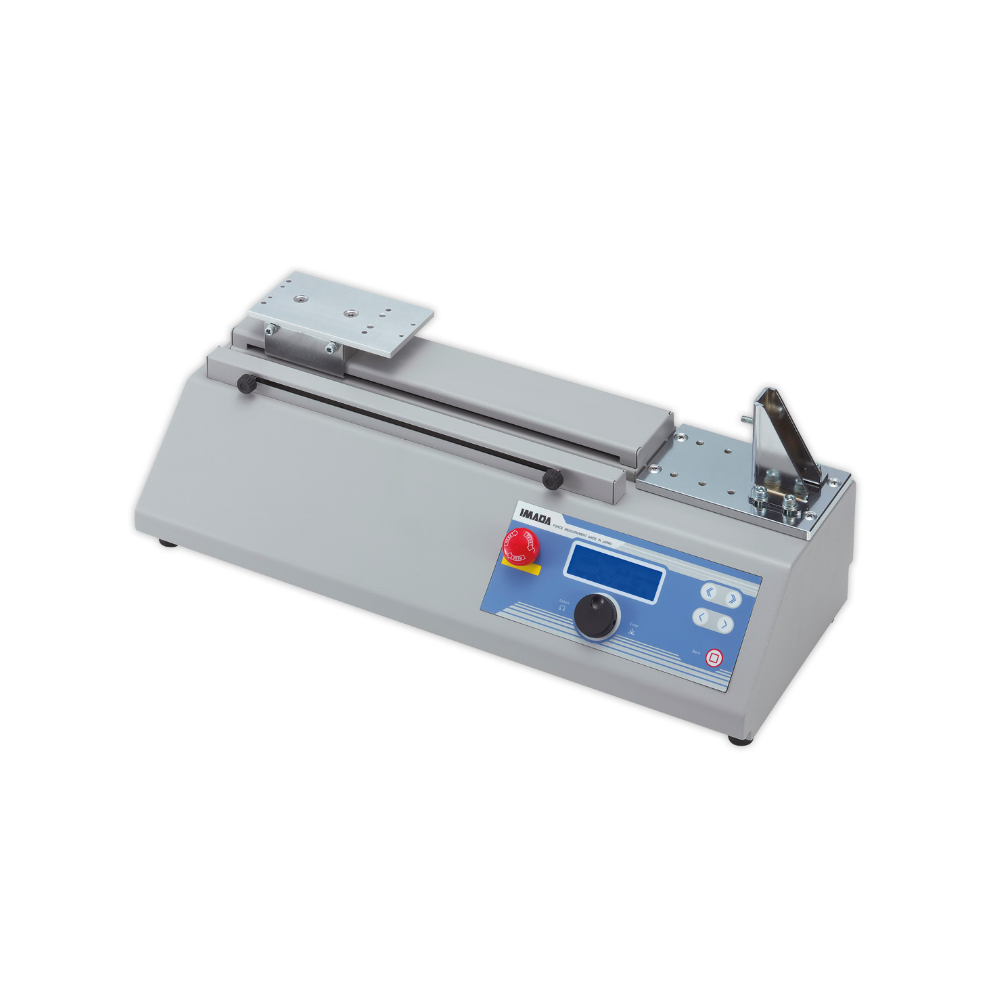

The display shows the adjusted basic conditions, as well as the executed strokes, respectively the elapsed time. - Test stand MH2-500N with infinitely adjustable travel speed from 10 to 300 mm/min
- 2 manual adjustable limit switches for inversion of the direction
- Gauge overload protection in combination with force gauge ZTS, ZTA or display unit FA Plus only (additional connecting cable is necessary)
- 3 different speeds adjustable (Start, measuring back)
- Travel distance 230 mm
- FSA: In combination with force gauge model ZTA and software »Force Recorder Professional« force-displacement and force-time graphs can be generated.
Test stand for the following force gauge up to 500 N:
– mechanical – model PS and FB
– electronic (recommended) – model DST, DSV, ZTS and ZTA
Standard Features
- Rugged design
- Delivery of the test stand includes mounting screws for the force gauge
- Force gauge is not included

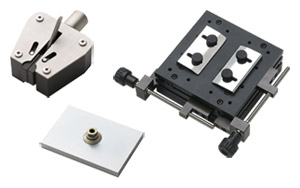

Depending on the application we have a lot of clamping tools and clamps for test stand MH2-500N in our program.
Connecting cable for test stand with force gauge (Series ZT) to stop feed at Fmax or overload (force control), length approx. 1.5 m
Connecting cable for signal input by customer.

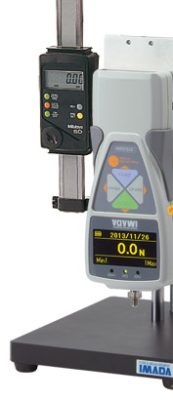

For exact determination of the travel distance, test stand MH2-500N can be equipped with a digital measuring system:
