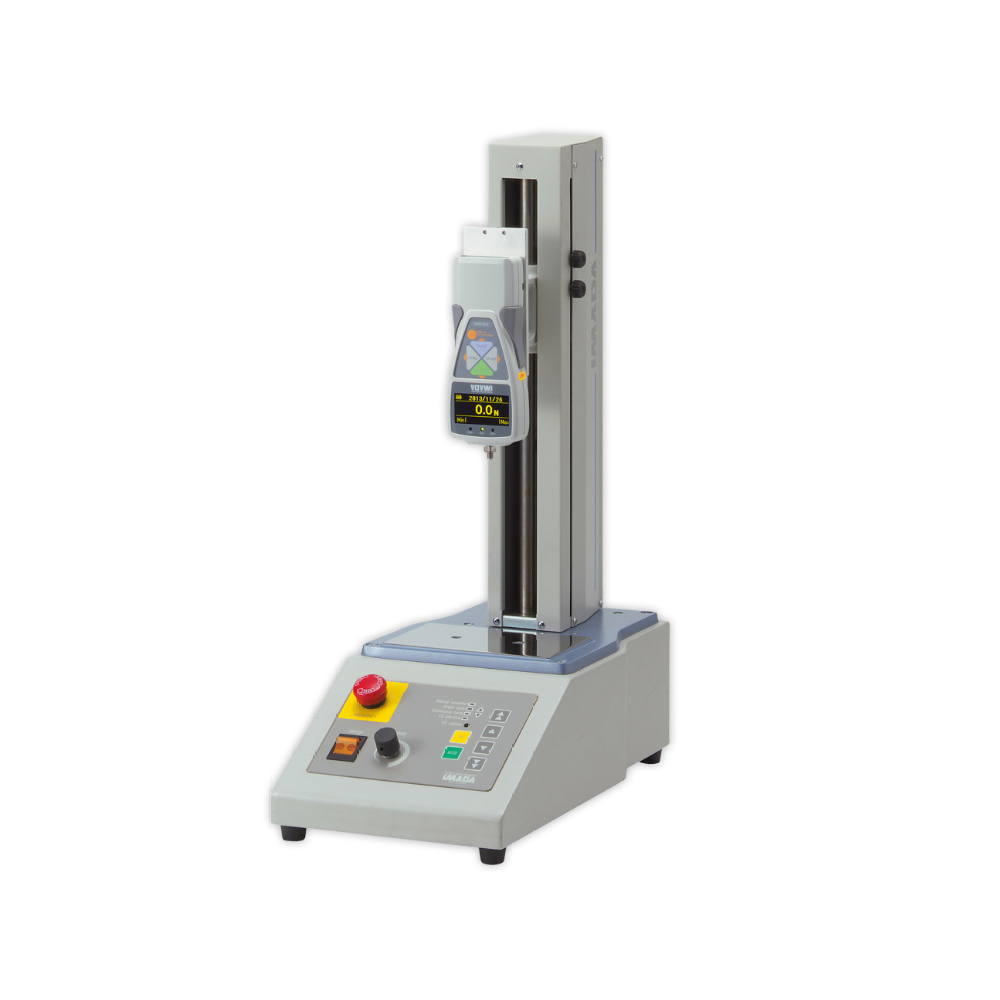

MX-500N
Test Stand

max. capacity 500 N
Vertical motorized test stands for single and continuous tests with infinitely adjustable travel speed

For compression and tension measurement

Test stand is available with extended stroke different traveling speed, as well as various display units

Special Features

3 operation modes:
Single or continuous operation for constant testing conditions
– manual operation: Feed continuous so long as button is pressed or he limit switch is reached
– single cycle operation: The force gauge covers a defined distance for one-time
– continuous cycle operation: Force gauge travels a defined distance continuously up and down
Test stand MX-500N with infinitely adjustable travel speed from 10 to 300 mm/min
Combination of linear guide and high performance brushless motor provides extremely smooth operation also under heavy load
2 manual adjustable limit switches for inversion of the direction
High speed for returning to starting position
Gauge overload protection in combination with force gauge ZTS, ZTA or display unit FA Plus only (additional connecting cable is necessary)
Travel distance max. 260 mm (max. 460 mm with extended stroke), depending on the mounted force gauge (see dimensions)
Test stand for the following force gauge up to 500 N:
– mechanical – model PS and FB
– electronic (recommended) – model DST, DSV, ZTS and ZTA

Standard Features

Large baseplate to take up a lot of clamps and testing devices
Delivery of the test stand includes mounting screws for the force gauge
Force gauge is not included

Available Models

Model	Capacity	Description
MX-500N	500 N	for single and continuous cycle mode
MX-500N-S	500 N	with distance measuring system (Mitutoyo)
MX-500N-E	500 N	with distance and speed measuring system
MX-500N-L	250 N	with extended stroke
MX-500N-V1200	100 N	travel speed 40 – 1200 mm/min
MX-500N-V600	250 N	travel speed 20 – 600 mm/min
MX-500N-V60	500 N	travel speed 2 – 60 mm/min

SPECIFICATIONS

Capacity:	Max. 500 N
Travel distance:	Max. 260 mm (460 mm with extended stroke), depending on the mounted force gauge (see dimensions)
Travel speed:	10 – 300 mm/min, infinitely adjustable (standard)
Overload protect:	Automatic stop in combination with models ZTS and ZTA when overload or max. limits are reached
Dimensions:	214 x 428 x 573 mm (LxWxH)
Weight, net (gross):	Approx. 18 kg (21 kg)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for test stand MX-500N in our program.

For more information go to clamps and testing devices

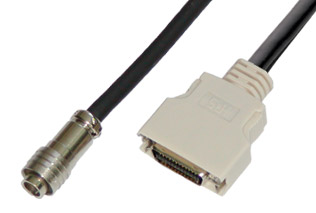

CB-501 – Connecting Cable

Connecting cable for test stand MX-500N with force gauge (series Z) to stop feed at Fmax or overload (force control)
Order number: CB-501

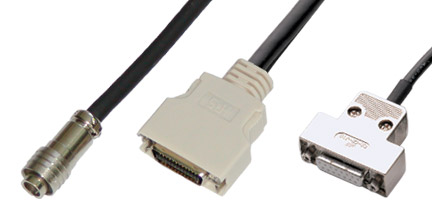

CB-504 – Connecting Cable

Connecting cable for test stand with force gauge (Series Z) to stop feed at Fmax or overload (force control) and output signal RS-232
Order number: CB-504

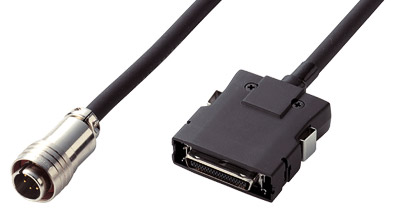

CB-508 – Connecting Cable

Connecting cable for for test stand with force gauge (Series ZT) to stop feed at Fmax or overload (force control). Length approx. 1.5 m
Order number: CB-508

ATTACHMENT

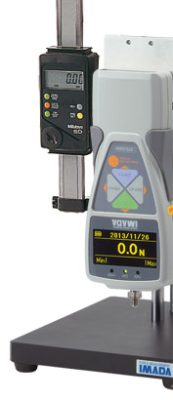

Code S – Distance Measuring System

For exact determination of the travel distance, test stand MX-500N can be equipped with a digital measuring system:
– display in mm or inch
– zero setting
– Digimatic output
Specifications:
Resolution: 0.01 mm
Accuracy: 0.01 mm of reading
max. measuring range: 300 mm
Order number: Code S

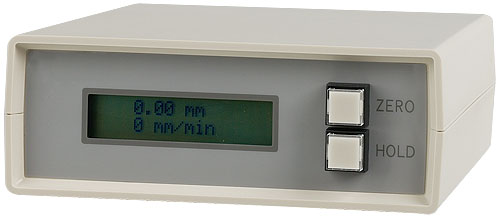

Code E – Distance and speed measuring system

The test stand may be equipped with a display. Therefore the actual travel speed and distance can be displayed. A Output signal is not available.
Resolution speed: 1 mm/min
Resolution distance: 0.01 mm
Order number: Code E
