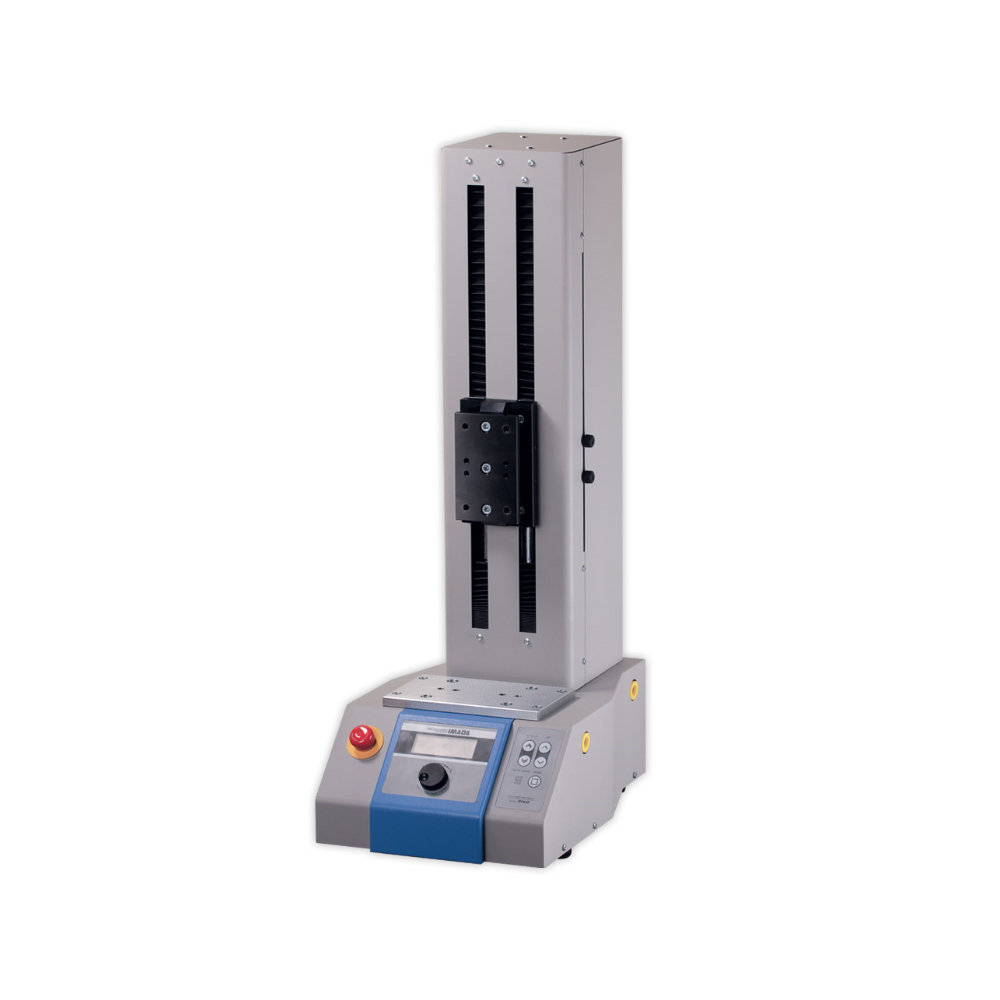

MX2-5000N
Test Stand

max. capacity 5000 N
Vertical motorized test stand for single and continuous tests with digital adjustable travel speed

For compression and tension measurement

Test stand is equipped with timer and counter unit for endurance tests

Special Features

2 operation modes:
Single or continuous operation for constant test conditions
– manual operation: Feed continuous so long as button is pressed or he limit switch is reached
– continuous cycle operation: Force gauge travels a defined distance continuously up and down
The adjusted speed is indicated in the display
Integrated timer and counter function for accomplishment of endurance tests (To apply constant force for a certain number of strokes and/or at certain time
The display shows the adjusted basic conditions, as well as the executed strokes, respectively the elapsed time.
Test stand MX2-5000N with infinitely adjustable travel speed from 0.5 to 300 mm/min
2 manual adjustable limit switches for inversion of the direction
Gauge overload protection in combination with force gauge ZTS, ZTA or display unit FA Plus only (additional connecting cable is necessary)
3 different speeds adjustable (Start, measuring back)
Travel distance max. 95 – 380 mm (295 – 580 mm with extended stroke), depending on the mounted force gauge (see dimensions)
FSA: In combination with force gauge model ZTA and software »Force Recorder Professional« force-displacement and force-time graphs can be generated
Test stand for the following force gauge:
– mechanical – model PS and FB
– electronic (recommended) – model DST, DSV, ZTS and ZTA

Standard Features

The design of the test stand is more rugged than series MX
Large baseplate to take up a lot of clamps and testing devices
Delivery of the test stand includes mounting screws for the force gauge
Force gauge is not included

Available Models

Model	Capacity	Description
MX2-5000N	5000 N	standard unit
MX2-5000N-EXT	5000 N	with extended stroke
MX2-5000N-FA	5000 N	integrated linear scale

SPECIFICATIONS

Capacity:	Max. 5000 N
Travel distance:	Max. 95 – 380 mm (295 – 580 mm with extended stroke), depending on the mounted force gauge (see dimensions)
Travel Speed:	0.5 – 300 mm/min, digital adjustable (standard)
Dimensions:	280 x 410 x 823 mm (LxWxH)
Weight, net:	Approx. 51 kg

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for test stand MX2-500N in our program.

For more information go to clamps and testing devices

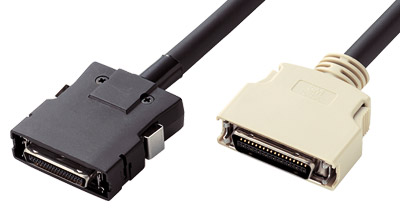

CB-528 – Connecting Cable

Connecting cable for test stand with force gauge (Series ZT) to stop feed at Fmax or overload (force control), length approx. 1.5 m
Order number: CB-528

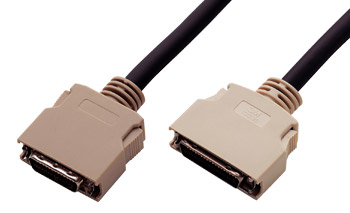

CB-704 – Connecting Cable

Connecting cable for test stand with force gauge (Series Z) to stop at Fmax or overload (force control).
Order number: CB-704

DELIVERY INCLUDES

Test stand MX2-5000N without force gauge, mounting screws, mounting plate, carrying handles, operating instruction in English only
