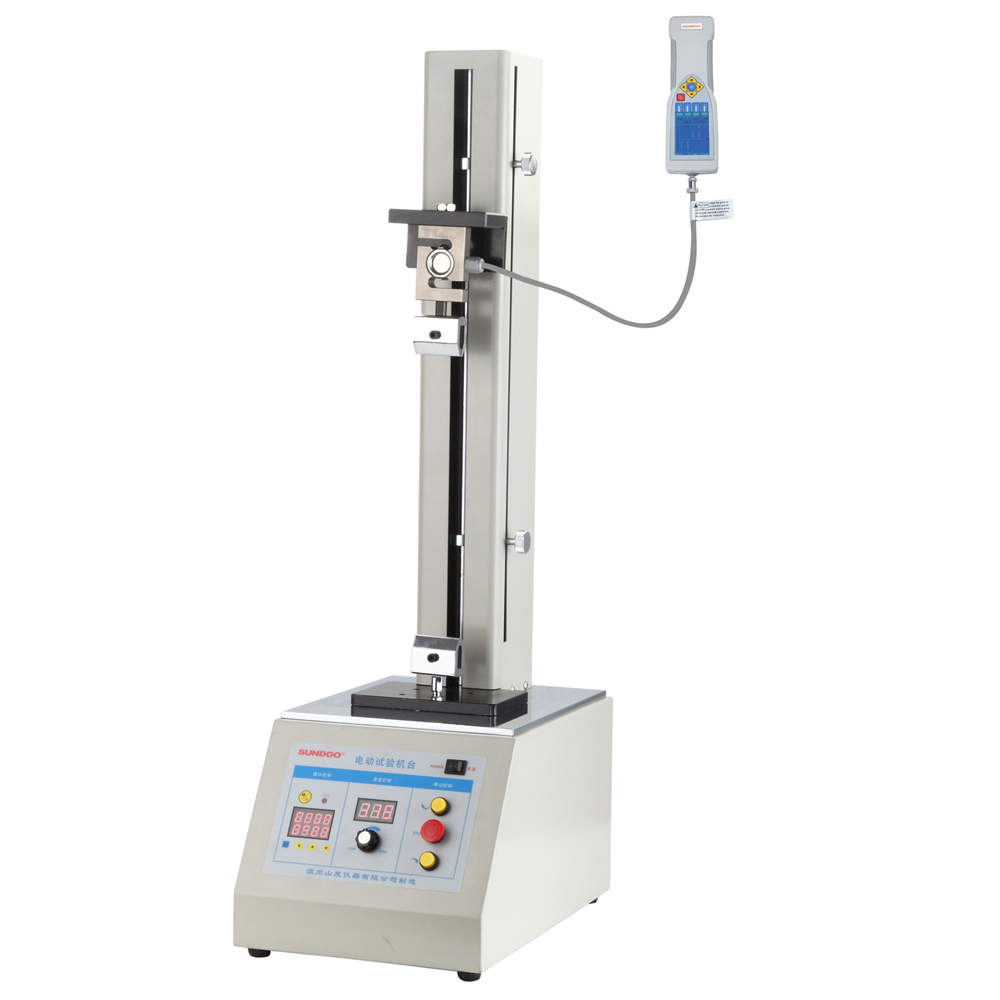

SJS-2KV
Stepper Motor Vertical Test Stand

Brief Introduction:
Product Name:SJS-2KV stepper motor vertical test stand
SJS series adopt stepper motor. Good stabiliy, wide application, wide and accurate test speed, stepless speed adjustment, manual operation and automatic cycle. Matched to force gauge and software, it could reach data test and stand control by computer. It could test tension/compression, insertion/withdraw, fatigue test, destructive test.

PRODUCT TRAIT

  • Dimension:L×W×H (mm)465×310×1180;Weight:about53kg;Capacity:2000N;Stroke:600mm.
  • Testing speed:1-500mm/min;speed resolution:1mm/min.
  • Can be configured(purchase additionally):SH/SP(2N-2000N)force gauge,Various clamps.

Note:Due to updates and improvement,products shape and color depends on specific products.Please contact us if you have any problems.
