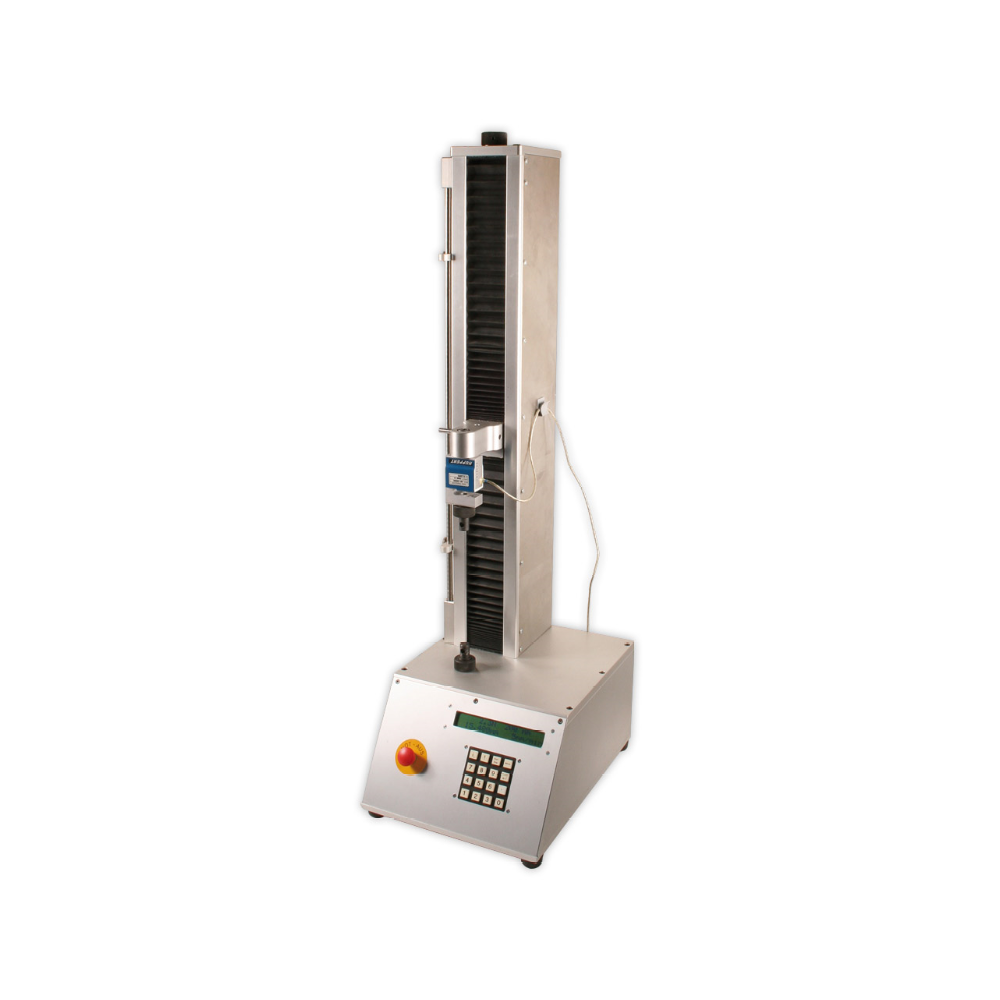

ZPM
Universal Testing Machine

max. capacity 5000 N
For force-displacement-measurements or constant-force-measurements with programmable traverse path and feed velocity.

To determinate of tensile strength, crushing strength, stretching, peeling- and friction tests, shear force and long-term test.

Test stand includes software for data processing and machine control.

Special Features

  • The integrated microprocessor is operated using either the integrated keypad of the universal testing machine ZPM or PC.
  • USB port to control the machine and for data transfer to PC
  • Drive using ball screw, ball bearings and timing belt
  • Interchangeable load cell to cover capacities up to max. 5000 N
  • Length measurement with encoder, resolution 0.01 (display), 0.001 mm (software)
  • Programmable test set-ups
  • The supplied software offers several tests: Tensile strength, peeling- and friction tests and constant load holding.
  • To ensure wrong operation of the machine max. capacity and traverse path can be limited. Additional mechanical stops can be set
  • A tensile testing machine with excellent value and many features

Standard Features

  • The working range of 500 mm include the grips and the test path. Optional 1200 mm are available
  • Load cells are available from 50 N to 5000 N
  • Load cell and grips can easily be changed
  • Strong, rugged design
  • Grips and fixtures for the tensile testing machine are optional available
  • Calibration report of load cell is included free of charge

 Available Models

Model Measuring Range
 Stroke
ZPM-3000-500 3000 N – basic version 500 mm
alternative
ZPM-50-500 50 N 500 mm
ZPM-100-500 100 N 500 mm
ZPM-200-500 200 N 500 mm
ZPM-500-500 500 N 500 mm
ZPM-1000-500 1000 N 500 mm
ZPM-2000-500 2000 N 500 mm
ZPM-5000-500 5000 N 500 mm

The universal testing machine ZPM is available with a stroke of 1200 mm on request e.g. ZPM-3000-1200

SPECIFICATIONS

Measuring range: Standard: 3000 N
Option: 50, 100, 200, 500, 1000, 2000, 5000 N
Accuracy: Loadcell: linearity – better than 0.03 %,
Hysterese ± 0.02 nominal load
Distance measuring: 0.0001 mm (internal)
Overload capacity: Approx. 120 % nominal load
Display: LCD with double-spaced display: force, distance
Resolution: Force 0.01 N (load cell 50 N), 0.1 N (load cell up to max. 5000 N)
Distance 0.01 mm (LCD), 0.001 mm (PC)
Measuring frequency: USB output with fast data transfer
Feed: Under load: 1 – 500 mm/min infinitely adjustable
without load: 1 – 700 mm/min infinitely adjustable
Max. travel distance: 500 mm
Software: Win XP and higher
Housing material: Rugged construction of aluminium and V2A
Weight net, (gross): Approx. 48 kg (60 kg)

Specifications subject to change without notice!

OPTIONAL LOAD CELL

Load Cell
 Measuring Range
LZ-50N 50 N
LZ-100N 100 N
LZ-200N 200  N
LZ-500N 500 N
LZ-1000N 1000 N
LZ-2000N 2000 N
LZ-3000N 3000 N
LZ-5000N 5000 N

STANDARD ACCESSORIES

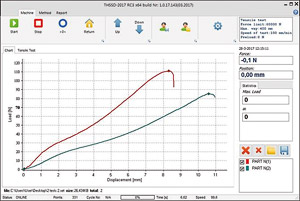

Software

Simple, easy to use software for machine control, to create hysteresis graphs and force-distance diagrams.

OPTIONAL ACCESSORIES

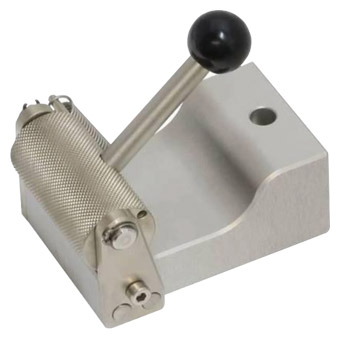

TH-7-1 – Eccentric Roller

Eccentric Roller, roller width 50 mm,
for materials with a thickness of 0 – 7 mm,
roller clamps of nickel-plated steel,
body of anodized aluminium
max. pull force of 1 kN
delivery includes: 1 pair (2 pieces)
Order number: TH-7-1

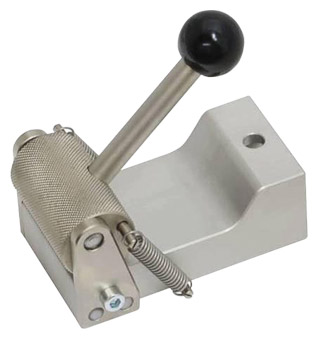

 TH-7-5 – Eccentric Roller

Eccentric Roller, roller width 50 mm,
for materials with a thickness of 0 – 7 mm,
roller clamps of nickel-plated steel,
body of anodized aluminium
max. pull force of 5 kN (higher capacity on request)
delivery includes: 1 pair (2 pieces)
Order number: TH-7-5

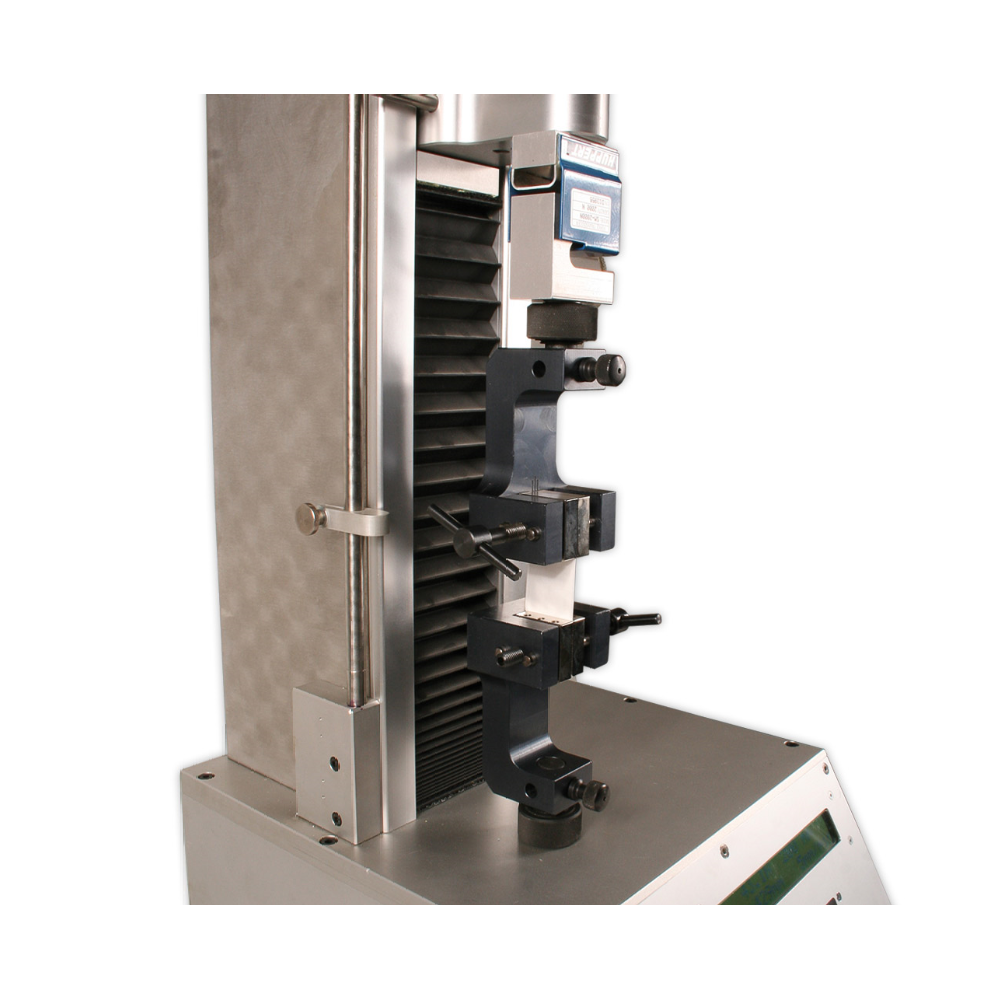

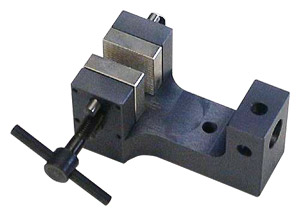

 TH56k – Vice Grip

Vice grip for clamping paper, foil, fabric etc.up to max. load 1 kN
delivery includes 1 pair (2 pieces) without jaws
Order number: TH56k
different replaceable jaws available

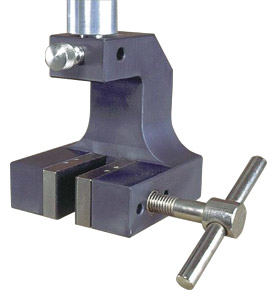

 TH56g – Vice Grip

For clamping paper, foil, fabric etc. max. 5 kN
delivery includes 1 pair (2 pieces) without jaws
Order number: TH56g
different replaceable jaws available

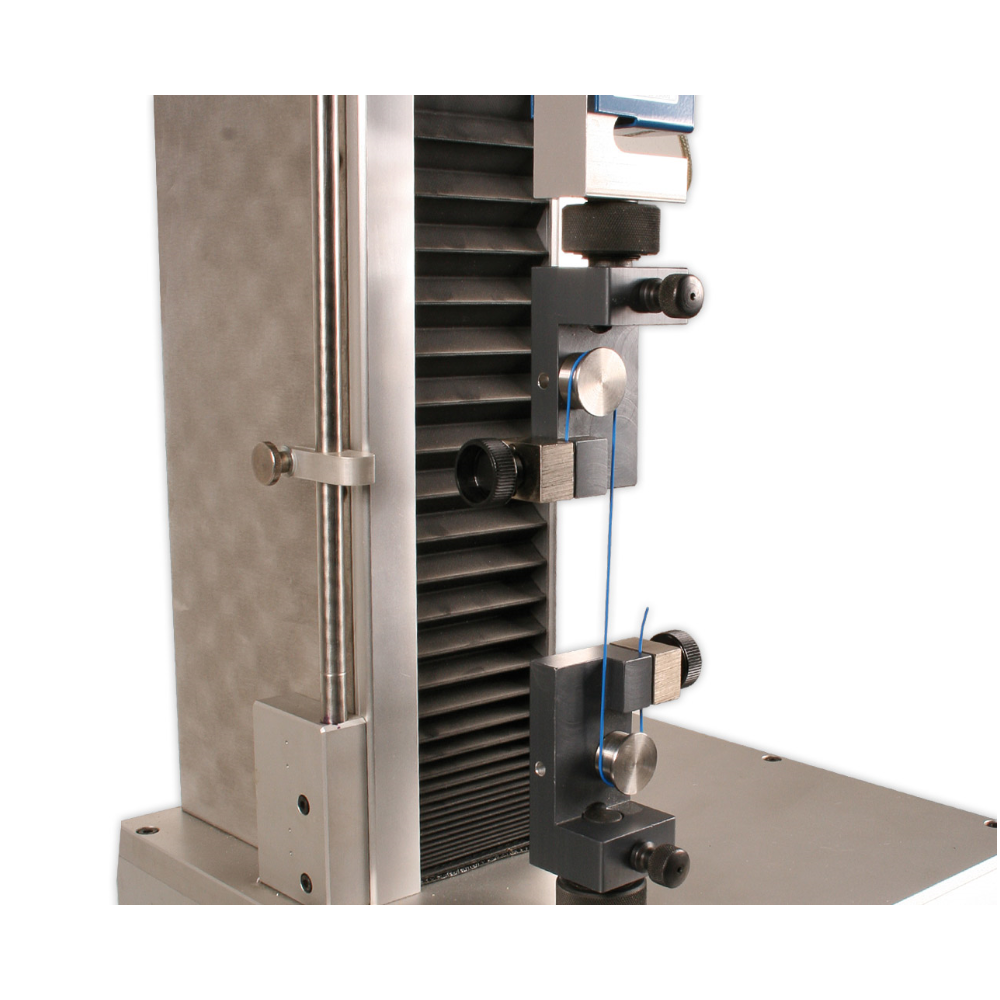

 TH76-1 – Rope Grip

Thread grip up to max. load 1 kN with deflecting cylinder and wedge clamp, rubber coated (Perbunan)
delivery includes 1 pair (2 pieces) without jaws
Order number: TH76-1
different replaceable jaws available

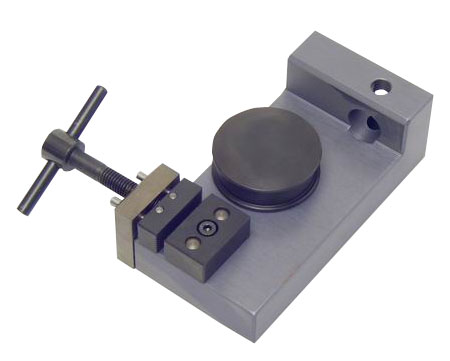

 TH76-5 – Rope Grip

Thread grip up to max. load 5 kN with deflecting cylinder, wedge clamp and pyramid jaws
delivery includes 1 pair (2 pieces) without jaws
Order number: TH76-5
different replaceable jaws available















 Beside the listed clamps there are a lot of other clamps available to make the universal testing machine ZPM fit for your requirements.
Mention us your application, testing method and testing standard.

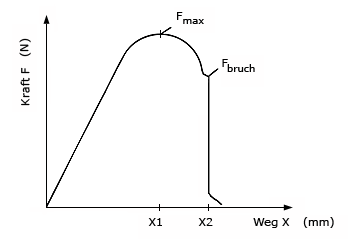

FORCE DISPLACEMENT DIAGRAM

DELIVERY INCLUDES

Test stand, loadcell, software, manufacturer`s test report
