CLD
PNEUMATIC MULTIPLIERS

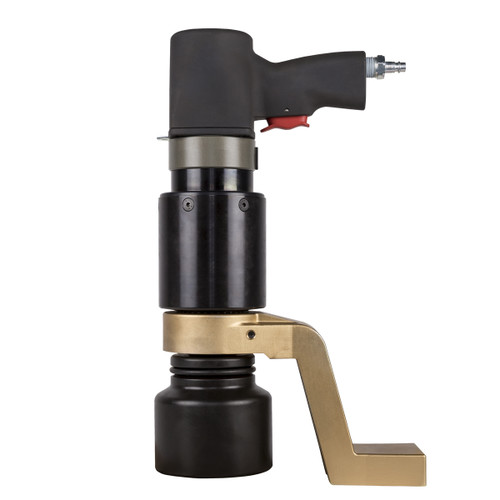

The CLD pneumatic torque multiplier provides precision tightening and loosening of all heavy duty fastening connections. The torque multiplier shuts-off when pre-set torque is achieved. It’s a non-impacting and operates at a smooth, continuous rotation, the torque multiplier increases speed and productivity, as it is faster than a hydraulic wrench and is less expensive.

MODEL ITEM NAME AMERICAN S.I. DRIVE SIZE
CLD55 210572 121 – 357 lbf.ft 165 – 485 N.m 3/4″ Sq. Dr.
CLD85 210573 225 – 660 lbf.ft 305 – 895 N.m 3/4″ Sq. Dr.
CLD85 210574 225 – 660 lbf.ft 305 – 895 N.m 1″ Sq. Dr.
CLD105 210575 270 – 796 lbf.ft 365 – 1080 N.m 1″ Sq. Dr.
CLD125 210576 332 – 970 lbf.ft 450 – 1315 N.m 1″ Sq. Dr.
CLD155 210577 435 – 1275 lbf.ft 590 – 1730 N.m 1″ Sq. Dr.
CLD225 210571 671 – 1970 lbf.ft 910 – 2670 N.m 1″ Sq. Dr.
CLD280 210578 870 – 2552 lbf.ft 1180 – 3460 N.m 1″ Sq. Dr.
CLD380 210579 1100 – 3230 lbf.ft 1490 – 4380 N.m 11/2″ Sq. Dr.
CLD580 210580 1534 – 4510 lbf.ft 2080 – 6115 N.m 11/2″ Sq. Dr.
CLD780 210581 1925 – 5660 lbf.ft 2610 – 7675 N.m 11/2″ Sq. Dr.
CLD980 210582 2810 – 8257 lbf.ft 3810 – 11195 N.m 11/2″ Sq. Dr.

TOOL BENEFITS

  • Compact design is safe, easy, and simple to handle.
  • Precision tightening and loosening of all heavy duty fastening connections.
  • Flexible tool positioning with 360 degree rotating handle.
  • Shuts-off when pre-set torque is achieved. Non-impacting and operates at a smooth, continuous rotation
  • Torque adjustment and control is regulated by the Lubro Control Unit (LCU) via the air supply.
  • Multiplier increases speed and productivity, as it is faster than a hydraulic wrench and is less expensive. Eliminates the cumbersome set up time and slow ratcheting process of hydraulic wrenches.
  • Ergonomically safer than the harmful hammering of impact wrenches. Eliminates the frequent costly repairs of impact wrenches.
  • Heavy-duty gear box.

Accuracy better than ± 5%
