EC-SERIES

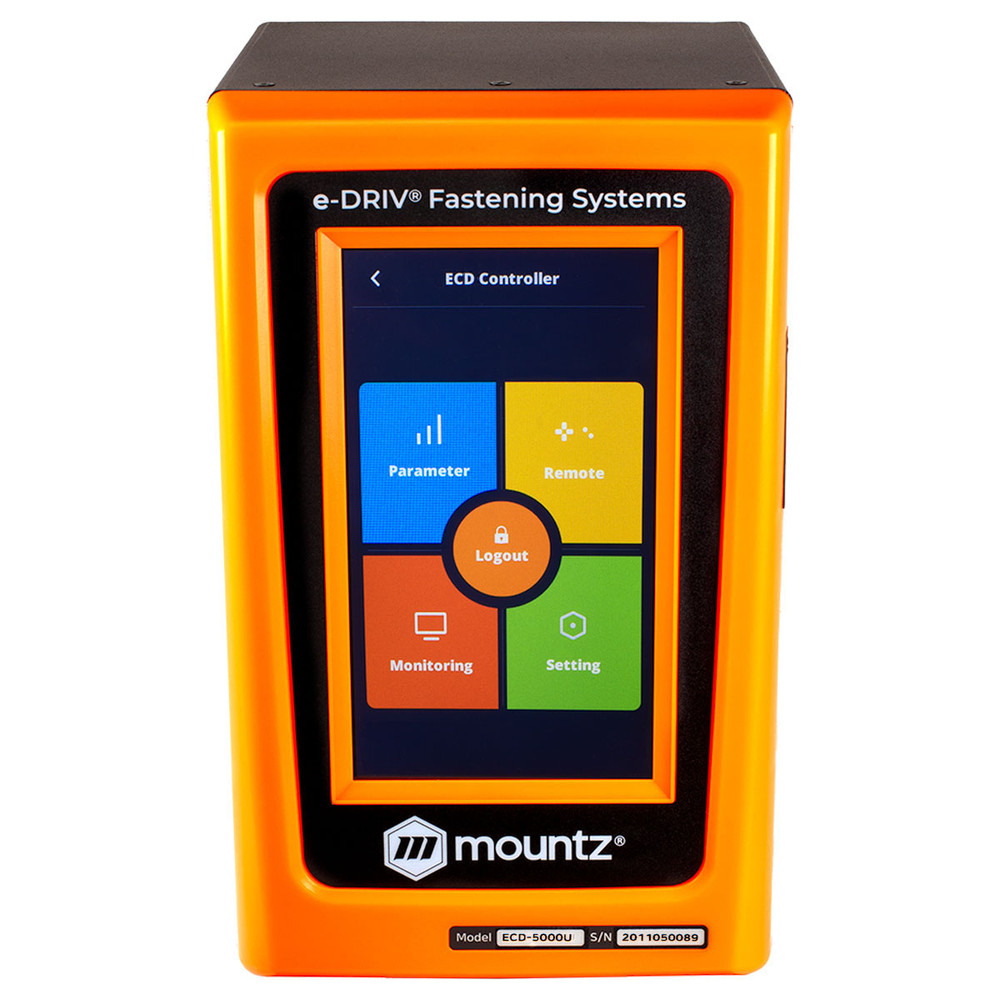

ECD CONTROLLERS

Mountz EC smart torque screwdriver systems provide engineers and operations with the latest error-proofing technology, eliminating manufacturing risks and reducing scrap rate costs.

Designed for high production and sensitive environments, the EC drivers are durable and reliable to ensure your assembly process runs smoothly with high-precision torque control.

Combined with built-in screw counters and error-proofing software, Mountz DC control tools offer maximum production results and product oversight. The ECD control system monitors and controls all aspects of the automation process, from installing error-proofing disciplines to adaptive fastening strategies.

EC-Series screwdrivers MUST be combined with the ECTD Controller for programming.

EC drivers offer a torque range suitable for micro, low, and higher torque applications.

All Mountz DC controllers include free product software for programming and analysis – no annual licensing is required.

MODEL ITEM NAME INPUT VAC OUTPUT VDC
ECD-4000U Controller (120V) 313197 AC120VC, 50-60Hz DC38V 3.5A
ECD-4000E Controller (230V) 313198 AC230VC, 50-60Hz DC38V 3.5A
ECD-5000U Controller (120V) 313000 AC120VC, 50-60Hz DC38V 3.5A
ECD-5000E Controller (230V) 313002 AC230VC, 50-60Hz DC38V 3.5A

TOOL BENEFITS

  • Auto-detection of a connected electric screwdriver when the controller is powered on
  • Preset selection capability: Front panel or 25P I/O
  • Angle Control: 0.1 – 10 turns
  • 15 Preset Parameters: Torque, Speed, Soft Start & Angle
  • Error display: Error code display (3 groups)
  • Front panel 7″ Color LCD with touchscreen
  • 8 Input & 8 Output flexible I/O (25P D-Sub)
  • Communication 1 x RS232C, 1 x Ethernet
  • Protocol: Modbus, Open Protocol
  • 4.0 MEMS system ready
  • SD Card data memory slot (memory card included)
  • Mounting bracket included
