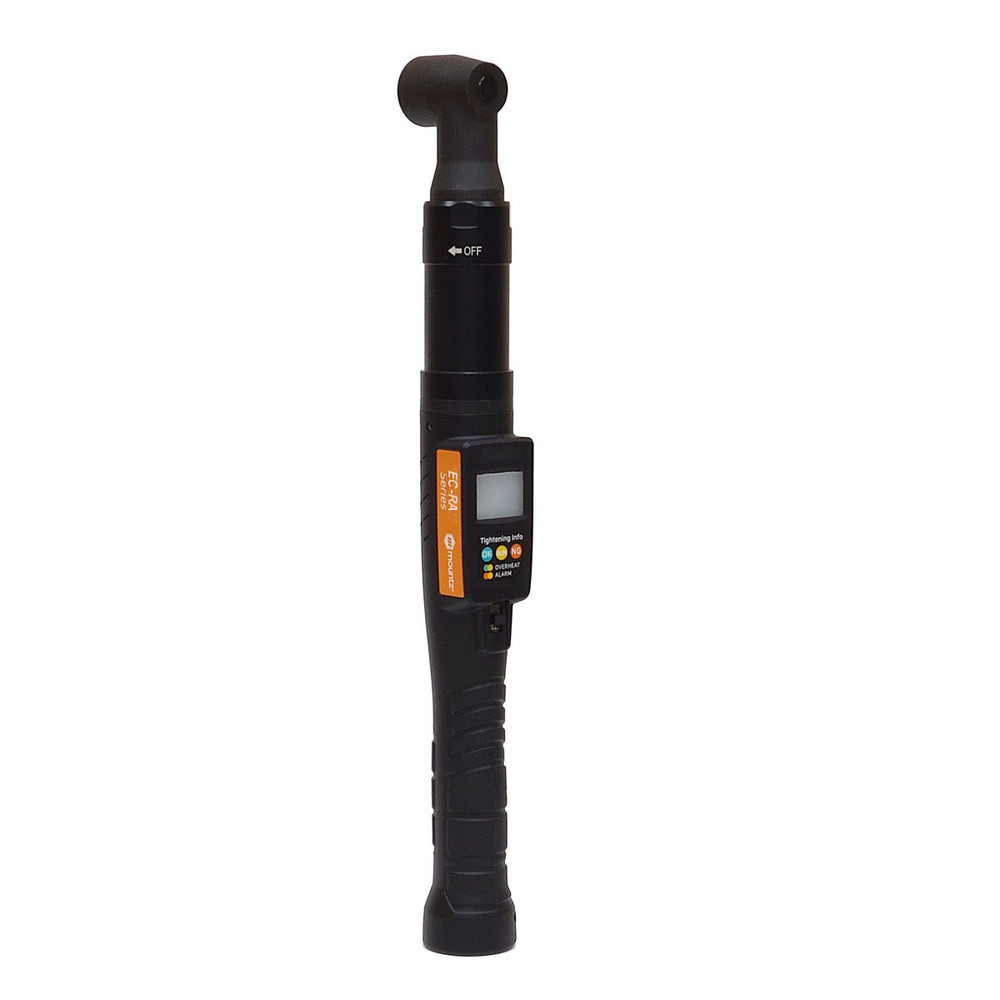

EC-SERIES
SMART SCREWDRIVERS

The smart electric screwdriver provides precision and accuracy. Combined with built-in screw counters and error-proofing software, Mountz DC control tools offer maximum production results and product oversight. The torque control system expedites all aspects of the automation process, from installing error-proofing disciplines to adaptive fastening strategies. A single Mountz DC control automation system replaces up to 15 power tools. The assembly tool reduces tooling costs and improves operations by optimizing a company’s manufacturing footprint. Achieve multiple fastening tasks with one tooling system.

MODEL DRIVER TYPE ITEM NAME AMERICAN S.I. DRIVE SIZE
EC40000 Lever Start 313169 0.7 – 3.5 lbf.in 0.1 – 0.4 N.m 1/4″ F/Hex
EC40050 Lever Start 313170 1.2 – 6.1 lbf.in 0.15 – 0.7 N.m 1/4″ F/Hex
EC40100 Lever Start 313171 2.4 – 12.2 lbf.in 0.3 – 1.4 N.m 1/4″ F/Hex
EC40200 Lever Start 313172 5.9 – 29.5 lbf.in 0.7 – 3.3 N.m 1/4″ F/Hex
EC40300 Lever Start 313173 8.7 – 43.4 lbf.in 1 – 4.9 N.m 1/4″ F/Hex
EC50000 Lever Start 313006 2.1 – 10.4 lbf.in 0.2 – 1.2 N.m 1/4″ F/Hex
EC50050 Lever Start 313007 3.8 – 19.1 lbf.in 0.4 – 2.2 N.m 1/4″ F/Hex
EC50100 Lever Start 313008 7 – 34.7 lbf.in 0.8 – 3.9 N.m 1/4″ F/Hex
EC50104 Lever Start 313201 7 – 34.7 lbf.in 0.8 – 3.9 N.m 3/8″ Sq. Dr.
EC50150 Lever Start 313009 13 – 65.1 lbf.in 1.5 – 7.4 N.m 1/4″ F/Hex
EC50154 Lever Start 313202 13 – 65.1 lbf.in 1.5 – 7.4 N.m 3/8″ Sq. Dr.
EC50200 Lever Start 313010 15.6 – 78.1 lbf.in 1.8 – 8.8 N.m 1/4″ F/Hex
EC50204 Lever Start 313203 15.6 – 78.1 lbf.in 1.8 – 8.8 N.m 3/8″ Sq. Dr.
EC50300 Lever Start 313011 24.3 – 121.5 lbf.in 2.8 – 13.7 N.m 1/4″ F/Hex
EC50304 Lever Start 313204 24.3 – 121.5 lbf.in 2.8 – 13.7 N.m 3/8″ Sq. Dr.
EC50554 Lever Start 313205 46.9 – 234.3 lbf.in 5.3 – 26.5 N.m 3/8″ Sq. Dr.
EC50704 Lever Start 313206 60.8 – 303.8 lbf.in 6.9 – 34.3 N.m 3/8″ Sq. Dr.
EC50705 Lever Start 313207 60.8 – 303.8 lbf.in 6.9 – 34.3 N.m 1/2″ Sq. Dr.
EC50854 Lever Start 313208 86.8 – 434 lbf.in 9.8 – 49 N.m 3/8″ Sq. Dr.
EC50855 Lever Start 313209 86.8 – 434 lbf.in 9.8 – 49 N.m 1/2″ Sq. Dr.
EC50000-PB Pistol Grip 313012 2.1 – 10.4 lbf.in 0.2 – 1.2 N.m 1/4″ F/Hex
EC50000-PT Pistol Grip 313017 2.1 – 10.4 lbf.in 0.2 – 1.2 N.m 1/4″ F/Hex
EC50050-PB Pistol Grip 313013 3.8 – 19.1 lbf.in 0.4 – 2.2 N.m 1/4″ F/Hex
EC50050-PT Pistol Grip 313018 3.8 – 19.1 lbf.in 0.4 – 2.2 N.m 1/4″ F/Hex
EC50100-PB Pistol Grip 313014 7.8 – 39.1 lbf.in 0.9 – 4.4 N.m 1/4″ F/Hex
EC50100-PT Pistol Grip 313019 7.8 – 39.1 lbf.in 0.9 – 4.4 N.m 1/4″ F/Hex
EC50104-PB Pistol Grip 313210 7.8 – 39.1 lbf.in 0.9 – 4.4 N.m 3/8″ Sq. Dr.
EC50104-PT Pistol Grip 313222 7.8 – 39.1 lbf.in 0.9 – 4.4 N.m 3/8″ Sq. Dr.
EC50120-PB Pistol Grip 313211 11.3 – 56.4 lbf.in 1.3 – 6.4 N.m 1/4″ F/Hex
EC50120-PT Pistol Grip 313223 11.3 – 56.4 lbf.in 1.3 – 6.4 N.m 1/4″ F/Hex
EC50124-PB Pistol Grip 313212 11.3 – 56.4 lbf.in 1.3 – 6.4 N.m 3/8″ Sq. Dr
EC50124-PT Pistol Grip 313224 11.3 – 56.4 lbf.in 1.3 – 6.4 N.m 3/8″ Sq. Dr
EC50204-PB Pistol Grip 313213 19.1 – 95.5 lbf.in 2.2 – 10.8 N.m 3/8″ Sq. Dr
EC50204-PT Pistol Grip 313225 19.1 – 95.5 lbf.in 2.2 – 10.8 N.m 3/8″ Sq. Dr
EC50200-PB Pistol Grip 313015 19.1 – 95.5 lbf.in 2.2 – 10.8 N.m 1/4″ F/Hex
EC50200-PT Pistol Grip 313020 19.1 – 95.5 lbf.in 2.2 – 10.8 N.m 1/4″ F/Hex
EC50300-PB Pistol Grip 313016 27.8 – 138.9 lbf.in 3.1 – 15.7 N.m 1/4″ F/Hex
EC50300-PT Pistol Grip 313021 27.8 – 138.9 lbf.in 3.1 – 15.7 N.m 1/4″ F/Hex
EC50304-PB Pistol Grip 313214 27.8 – 138.9 lbf.in 3.1 – 15.7 N.m 3/8″ Sq. Dr.
EC50304-PT Pistol Grip 313226 27.8 – 138.9 lbf.in 3.1 – 15.7 N.m 3/8″ Sq. Dr.
EC50500-PB Pistol Grip 313215 41.7 – 208.3 lbf.in 4.7 – 23.5 N.m 1/4″ F/Hex
EC50500-PT Pistol Grip 313227 41.7 – 208.3 lbf.in 4.7 – 23.5 N.m 1/4″ F/Hex
EC50504-PB Pistol Grip 313216 41.7 – 208.3 lbf.in 4.7 – 23.5 N.m 3/8″ Sq. Dr.
EC50504-PT Pistol Grip 313228 41.7 – 208.3 lbf.in 4.7 – 23.5 N.m 3/8″ Sq. Dr.
EC40000-RA Right Angle 313174 0.7 – 3.5 lbf.in 0.1 – 0.4 N.m 1/4″ F/Hex
EC40050-RA Right Angle 313175 1.2 – 6.1 lbf.in 0.15 – 0.7 N.m 1/4″ F/Hex
EC40100-RA Right Angle 313176 2.4 – 12.2 lbf.in 0.3 – 1.4 N.m 1/4″ F/Hex
EC40200-RA Right Angle 313177 5.9 – 29.5 lbf.in 0.7 – 3.3 N.m 1/4″ F/Hex
EC40300-RA Right Angle 313178 8.7 – 43.4 lbf.in 1 – 4.9 N.m 1/4″ F/Hex
EC50100-RA Right Angle 313024 7.8 – 39.1 lbf.in 0.9 – 4.4 N.m 1/4″ F/Hex
EC50104-RA Right Angle 313234 7.8 – 39.1 lbf.in 0.9 – 4.4 N.m 3/8″ Sq. Dr.
EC50120-RA Right Angle 313235 11.3 – 56.4 lbf.in 1.3 – 6.4 N.m 1/4″ Sq. Dr.
EC50124-RA Right Angle 313236 11.3 – 56.4 lbf.in 1.3 – 6.4 N.m 3/8″ Sq. Dr.
EC50150-RA Right Angle 313025 13 – 65.1 lbf.in 1.5 – 7.4 N.m 1/4″ F/Hex
EC50154-RA Right Angle 313237 13 – 65.1 lbf.in 1.5 – 7.4 N.m 3/8″ Sq. Dr.
EC50200-RA Right Angle 313026 19.1 – 95.5 lbf.in 2.2 – 10.8 N.m 1/4″ F/Hex
EC50204-RA Right Angle 313238 19.1 – 95.5 lbf.in 2.2 – 10.8 N.m 3/8″ Sq. Dr.
EC50300-RA Right Angle 313027 27.8 – 138.9 lbf.in 3.1 – 15.7 N.m 1/4″ F/Hex
EC50304-RA Right Angle 313239 27.8 – 138.9 lbf.in 3.1 – 15.7 N.m 3/8″ Sq. Dr.
EC50500-RA Right Angle 313240 41.7 – 208.3 lbf.in 4.7 – 23.5 N.m 1/4″ Sq. Dr.
EC50504-RA Right Angle 313241 41.7 – 208.3 lbf.in 4.7 – 23.5 N.m 3/8″ Sq. Dr.
EC50604-RA Right Angle 313242 55.6 – 277.7 lbf.in 6.3 – 31.4 N.m 3/8″ Sq. Dr.
EC50804-RA Right Angle 313243 69.4 – 347.2 lbf.in 7.9 – 39.2 N.m 3/8″ Sq. Dr.
EC50805-RA Right Angle 313244 69.4 – 347.2 lbf.in 7.9 – 39.2 N.m 1/2″ Sq. Dr.
EC50904-RA Right Angle 313245 86.8 – 434 lbf.in 9.8 – 49 N.m 3/8″ Sq. Dr.
EC50905-RA Right Angle 313246 86.8 – 434 lbf.in 9.8 – 49 N.m 1/2″ Sq. Dr.
EC40000-R+C Robotic 313180 0.7 – 3.5 lbf.in 0.1 – 0.4 N.m 1/4″ F/Hex
EC40050-R+C Robotic 313182 1.2 – 6.1 lbf.in 0.15 – 0.7 N.m 1/4″ F/Hex
EC40100-R+C Robotic 313184 2.4 – 12.2 lbf.in 0.3 – 1.4 N.m 1/4″ F/Hex
EC40200-R+C Robotic 313186 5.9 – 29.5 lbf.in 0.7 – 3.3 N.m 1/4″ F/Hex
EC40300-R+C Robotic 313188 8.7 – 43.4 lbf.in 1 – 4.9 N.m 1/4″ F/Hex
EC50000-R Robotic 313028 1.8 – 10.4 lbf.in 0.2 – 1.2 N.m 1/4″ F/Hex
EC50050-R Robotic 313029 3.8 – 19.1 lbf.in 0.4 – 2.2 N.m 1/4″ F/Hex
EC50100-R Robotic 313030 7.8 – 39.1 lbf.in 0.9 – 4.4 N.m 1/4″ F/Hex
EC50104-R Robotic 313165 7.8 – 39.1 lbf.in 0.9 – 4.4 N.m 3/8″ Sq. Dr.
EC50120-R Robotic 313166 11.3 – 56.4 lbf.in 1.3 – 6.4 N.m 1/4″ F/Hex
EC50124-R Robotic 313247 11.3 – 56.4 lbf.in 1.3 – 6.4 N.m 3/8″ Sq. Dr.
EC50200-R Robotic 313032 19.1 – 95.5 lbf.in 2.2 – 10.8 N.m 1/4″ F/Hex
EC50204-R Robotic 313248 19.1 – 95.5 lbf.in 2.2 – 10.8 N.m 3/8″ Sq. Dr.
EC50300-R Robotic 313033 27.8 – 138.9 lbf.in 3.1 – 15.7 N.m 1/4″ F/Hex
EC50304-R Robotic 313249 27.8 – 138.9 lbf.in 3.1 – 15.7 N.m 3/8″ Sq. Dr.
EC50500-R Robotic 313250 41.7 – 208.3 lbf.in 4.7 – 23.5 N.m 1/4″ F/Hex
EC50504-R Robotic 313251 41.7 – 208.3 lbf.in 4.7 – 23.5 N.m 3/8″ Sq. Dr.
EC50604-R Robotic 313252 55.6 – 277.7 lbf.in 6.3 – 31.4 N.m 3/8″ F/Sq
EC50804-R Robotic 313253 69.4 – 347.2 lbf.in 7.9 – 39.2 N.m 3/8″ F/Sq
EC50805-R Robotic 313254 69.4 – 347.2 lbf.in 7.9 – 39.2 N.m 1/2″ F/Sq
EC50904-R Robotic 313255 86.8 – 434 lbf.in 9.8 – 49 N.m 3/8″ F/Sq
EC50905-R Robotic 313256 86.8 – 434 lbf.in 9.8 – 49 N.m 1/2″ F/Sq

TOOL BENEFITS

ECD Controller:

      • Fully programmable via the touch screen
      • Digital I/O signals for interfacing with a machine & PLC interface for line control monitoring techniques.
      • Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
      • Collect and save all fastening data on SD memory card.
      • ECD controller provides fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ).

Error-Proofing:

      • Error-proof the fastening process and eliminate manufacturing risks and prevent product defects.
      • The EZ-Glider position control torqu arm is an error-proofing system that detects and eliminates costly screw-fastening errors and ensures that every screw is correctly tightened in the correct sequence. Paired with ECT smart screwdrivers, the torque arm adds an extra layer of error-proofing to the fastening process.

Process Optimization:

      • Achieve multiple fastening tasks with one screwdriver system. A single fastening system can replace up to 15 power tools.
      • Digital I/O allows interfacing with a machine & PLC interface for line control monitoring techniques.
      • Programmable fastening sequences and workflows. Create standardized fastening workflows. Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
      • The built-in screw counting function ensures that all screws are accounted for during the assembly process.
      • Operational for thread tapping applications.

Data Collection and Analysis:

      • Data collection – record and store torque and fastening data.
      • Collect and store essential quality data in a repository for data analytics, regulatory compliance, and traceability.

Ergonomics:

      • The lever start tool helps prevent accidental or unintentional activation of the tool and ensures that the tool doesn’t turn on accidentally, reducing the risk of injury.

Mountz Quality Standards:

    • Low maintenance with an extended life cycle.
    • Swiss DC servo motor provides precise, accurate, and repeatable torque control.
    • Clean room compliant (ISO14644-1 2015 Class 5)
    • Free product software — no annual licensing required — savings of $2K.
