ECT-SERIES
ECTD CONTROLLERS

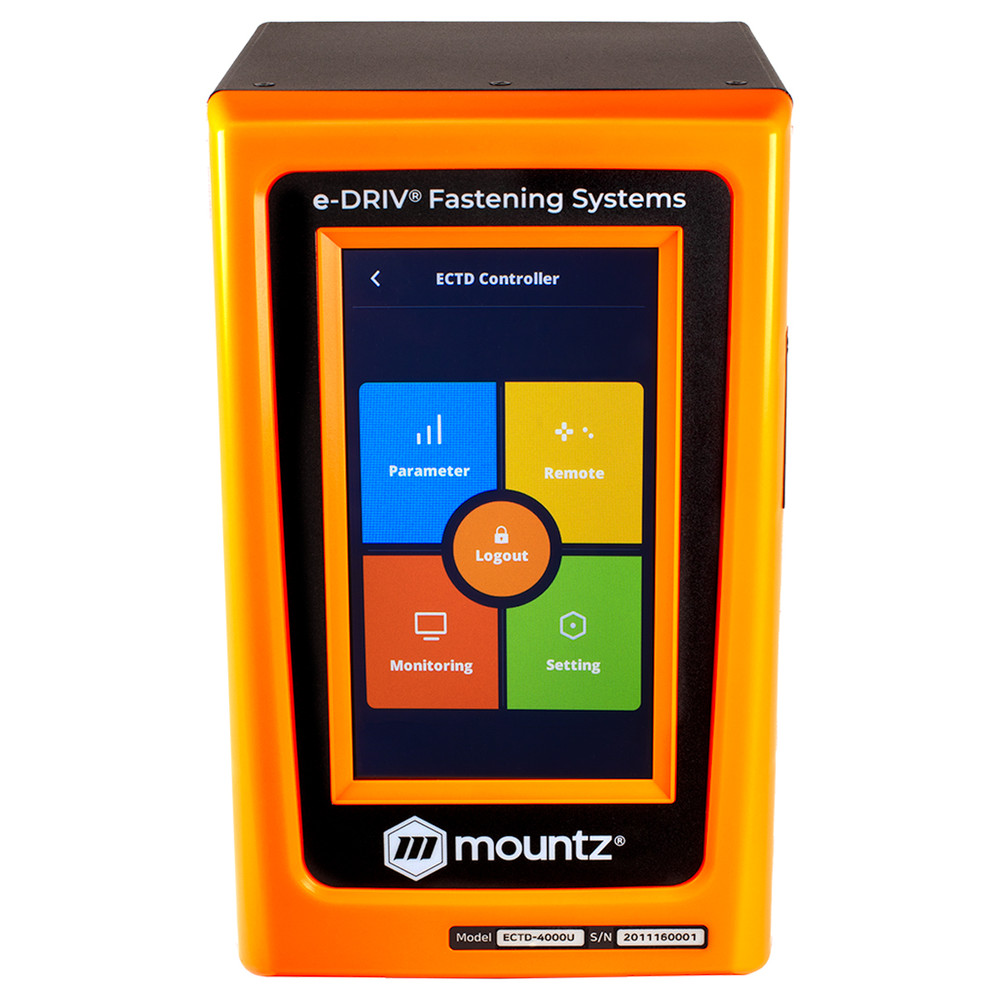

The ECTD controller operates with only the ECT-Series Transducerized Smart Electric Screwdrivers. It is a single tool controller that offers programmable speed, angle, auto-reverse and soft start options. I/O interface for communication with external devices such as PLC.

MODEL ITEM NAME INPUT VAC OUTPU VDC
ECTD-5000U Controller (120V) 313003 AC120VC, 50-60Hz DC38V 3.5A
ECTD-5000E Controller (230V) 313004 AC230VC, 50-60Hz DC38V 3.5A

TOOL BENEFITS

  • Auto-detection of a connected electric screwdriver when the controller is powered on
  • Preset selection capability: Front panel or 25P I/O
  • Angle Control: 0.1 – 10 turns
  • 15 Preset Parameters: Torque, Speed, Soft Start & Angle
  • Error display: Error code display (3 groups)
  • Front panel 7″ Color LCD with touchscreen
  • 8 Input & 8 Output flexible I/O (25P D-Sub)
  • Communication 1 x RS232C, 1 x Ethernet
  • Protocol: Modbus, Open Protocol
  • 4.0 MEMS system ready
  • SD Card data memory slot (memory card included)
  • Mounting bracket included
