ECT-SERIES

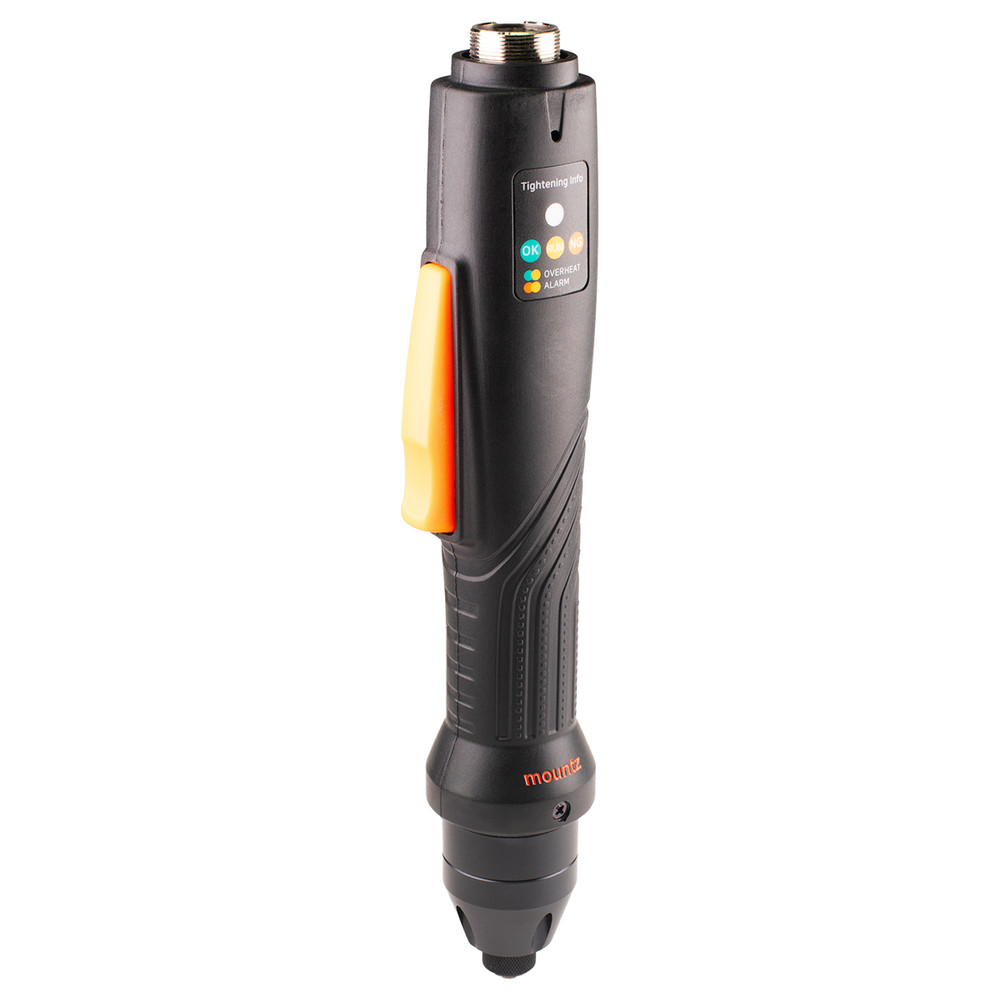

SMART ELECTRIC SCREWDRIVERS

The transducerized smart screwdriver provides a high degree of precision and accuracy. Combined with built-in screw counters and error-proofing software, Mountz DC control tools offer maximum production results and product oversight. The torque control system expedites all aspects of the automation process, from installing error-proofing disciplines to adaptive fastening strategies. A single Mountz DC control automation system replaces up to 15 power tools. The assembly tool reduces tooling costs and improves operations by optimizing a company’s manufacturing footprint. Achieve multiple fastening tasks with one tooling system.

MODEL DRIVER TYPE ITEM NAME AMERICAN S.I. DRIVE SIZE
ECT50100-PB Pistol Grip 313047 8 – 39.8 lbf.in 0.9 – 4.5 N.m 1/4″ F/Hex
ECT50100-PT Pistol Grip 313062 8 – 39.8 lbf.in 0.9 – 4.5 N.m 1/4″ F/Hex
ECT50104-PB Pistol Grip 313048 8 – 39.8 lbf.in 0.9 – 4.5 N.m 3/8″ Sq. Dr.
ECT50104-PT Pistol Grip 313063 8 – 39.8 lbf.in 0.9 – 4.5 N.m 3/8″ Sq. Dr.
ECT50120-PB Pistol Grip 313049 11.5 – 57.5 lbf.in 1.3 – 6.5 N.m 1/4″ F/Hex
ECT50124-PB Pistol Grip 313050 11.5 – 57.5 lbf.in 1.3 – 6.5 N.m 3/8″ Sq. Dr.
ECT50200-PB Pistol Grip 313051 20.4 – 101.8 lbf.in 2.3 – 11.5 N.m 1/4″ F/Hex
ECT50204-PB Pistol Grip 313052 20.4 – 101.8 lbf.in 2.3 – 11.5 N.m 3/8″ Sq. Dr.
ECT50300-PB Pistol Grip 313053 28.3 – 141.6 lbf.in 3.2 – 16 N.m 1/4″ F/Hex
ECT50304-PB Pistol Grip 313054 28.3 – 141.6 lbf.in 3.2 – 16 N.m 3/8″ Sq. Dr.
ECT50500-PB Pistol Grip 313055 42.5 – 212.4 lbf.in 4.8 – 24 N.m 1/4″ F/Hex
ECT50504-PB Pistol Grip 313056 42.5 – 212.4 lbf.in 4.8 – 24 N.m 3/8″ Sq. Dr.
ECT50604-PB Pistol Grip 313057 58.4 – 292.1 lbf.in 6.6 – 33 N.m 3/8″ Sq. Dr.
ECT50804-PB Pistol Grip 313058 70.8 – 354 lbf.in 8 – 40 N.m 3/8″ Sq. Dr.
ECT50805-PB Pistol Grip 313059 70.8 – 354 lbf.in 8 – 40 N.m 1/2″ Sq. Dr.
ECT50904-PB Pistol Grip 313060 100.9 – 504.5 lbf.in 11.4 – 57 N.m 3/8″ Sq. Dr.
ECT50120-PT Pistol Grip 313064 11.5 – 57.5 lbf.in 1.3 – 6.5 N.m 1/4″ F/Hex
ECT50124-PT Pistol Grip 313065 11.5 – 57.5 lbf.in 1.3 – 6.5 N.m 3/8″ Sq. Dr.
ECT50200-PT Pistol Grip 313066 20.4 – 101.8 lbf.in 2.3 – 11.5 N.m 1/4″ F/Hex
ECT50204-PT Pistol Grip 313156 20.4 – 101.8 lbf.in 2.3 – 11.5 N.m 3/8″ Sq. Dr.
ECT50300-PT Pistol Grip 313067 28.3 – 141.6 lbf.in 3.2 – 16 N.m 1/4″ F/Hex
ECT50304-PT Pistol Grip 313068 28.3 – 141.6 lbf.in 3.2 – 16 N.m 3/8″ Sq. Dr.
ECT50500-PT Pistol Grip 313069 42.5 – 212.4 lbf.in 4.8 – 24 N.m 1/4″ F/Hex
ECT50504-PT Pistol Grip 313070 42.5 – 212.4 lbf.in 4.8 – 24 N.m 3/8″ Sq. Dr.
ECT40100-RA Right Angle 313193 2.5 – 12.4 lbf.in 0.3 – 1.4 N.m 1/4″ F/Hex
ECT40200-RA Right Angle 313194 6 – 30.1 lbf.in 0.7 – 3.4 N.m 1/4″ F/Hex
ECT40300-RA Right Angle 313195 8.9 – 44.3 lbf.in 1 – 5 N.m 1/4″ F/Hex
ECT50100-RA Right Angle 313076 8 – 39.8 lbf.in 0.9 – 4.5 N.m 1/4″ F/Hex
ECT50104-RA Right Angle 313077 8 – 39.8 lbf.in 0.9 – 4.5 N.m 3/8″ Sq. Dr.
ECT50120-RA Right Angle 313196 11.5 – 57.5 lbf.in 1.3 – 6.5 N.m 1/4″ F/Hex
ECT50124-RA Right Angle 313088 11.5 – 57.5 lbf.in 1.3 – 6.5 N.m 3/8″ Sq. Dr.
ECT50150-RA Right Angle 313078 13.3 – 66.4 lbf.in 1.5 – 7.5 N.m 1/4″ F/Hex
ECT50154-RA Right Angle 313079 13.3 – 66.4 lbf.in 1.5 – 7.5 N.m 3/8″ Sq. Dr.
ECT50200-RA Right Angle 313080 20.4 – 101.8 lbf.in 2.3 – 11.5 N.m 1/4″ F/Hex
ECT50204-RA Right Angle 313081 20.4 – 101.8 lbf.in 2.3 – 11.5 N.m 3/8″ Sq. Dr.
ECT50300-RA Right Angle 313082 28.3 – 141.6 lbf.in 3.2 – 16 N.m 1/4″ F/Hex
ECT50304-RA Right Angle 313083 28.3 – 141.6 lbf.in 3.2 – 16 N.m 3/8″ Sq. Dr.
ECT50704-RA Right Angle 313086 61.95 – 309.79 lbf.in 7 – 35 N.m 3/8″ Sq. Dr.
ECT50504-RA Right Angle 313179 42.5 – 212.4 lbf.in 4.8 – 24 N.m 3/8″ Sq. Dr.
ECT50604-RA Right Angle 313185 58.4 – 292.1 lbf.in 6.6 – 33 N.m 3/8″ Sq. Dr.
ECT50804-RA Right Angle 313187 70.8 – 354 lbf.in 8 – 40 N.m 3/8″ Sq. Dr.
ECT50805-RA Right Angle 313192 70.8 – 354 lbf.in 8 – 40 N.m 1/2″ Sq. Dr.
ECT50904-RA Right Angle 313181 100.9 – 504.5 lbf.in 11.4 – 57 N.m 3/8″ Sq. Dr.
ECT50905-RA Right Angle 313200 100.9 – 504.5 lbf.in 11.4 – 57 N.m 1/2″ Sq. Dr.
ECT40100-R+C Robotic 313164 2.5 – 12.4 lbf.in 0.3 – 1.4 N.m 1/4″ F/Hex
ECT40200-R+C Robotic 313162 6 – 30.1 lbf.in 0.7 – 3.4 N.m 1/4″ F/Hex
ECT40300-R+C Robotic 313167 8.9 – 44.3 lbf.in 1 – 5 N.m 1/4″ F/Hex
ECT50100-R Robotic 313089 8 – 39.8 lbf.in 0.9 – 4.5 N.m 1/4″ F/Hex
ECT50104-R Robotic 313090 8 – 39.8 lbf.in 0.9 – 4.5 N.m 3/8″ Sq. Dr.
ECT50200-R Robotic 313091 20.4 – 101.8 lbf.in 2.3 – 11.5 N.m 1/4″ F/Hex
ECT50204-R Robotic 313092 20.4 – 101.8 lbf.in 2.3 – 11.5 N.m 3/8″ Sq. Dr.
ECT50300-R Robotic 313093 28.3 – 141.6 lbf.in 3.2 – 16 N.m 1/4″ F/Hex
ECT50304-R Robotic 313094 28.3 – 141.6 lbf.in 3.2 – 16 N.m 3/8″ Sq. Dr.
ECT50500-R Robotic 313095 42.5 – 212.4 lbf.in 4.8 – 24 N.m 1/4″ F/Hex
ECT50504-R Robotic 313096 42.5 – 212.4 lbf.in 4.8 – 24 N.m 3/8″ Sq. Dr.
ECT50604-R Robotic 313097 58.4 – 292.1 lbf.in 6.6 – 33 N.m 3/8″ Sq. Dr.
ECT50804-R Robotic 313098 70.8 – 354 lbf.in 8 – 40 N.m 3/8″ Sq. Dr.
ECT50805-R Robotic 313099 70.8 – 354 lbf.in 8 – 40 N.m 1/2″ Sq. Dr.
ECT50904-R Robotic 313100 100.9 – 504.5 lbf.in 11.4 – 57 N.m 3/8″ Sq. Dr.
ECT50905-R Robotic 313101 100.9 – 504.5 lbf.in 11.4 – 57 N.m 1/2″ Sq. Dr.
ECT40100 Lever Start 313189 2.5 – 12.4 lbf.in 0.3 – 1.4 N.m 1/4″ F/Hex
ECT40200 Lever Start 313190 6 – 30.1 lbf.in 0.7 – 3.4 N.m 1/4″ F/Hex
ECT40300 Lever Start 313191 8.9 – 44.3 lbf.in 1 – 5 N.m 1/4″ F/Hex
ECT50100 Lever Start 313034 7.1 – 35.4 lbf.in 0.8 – 4 N.m 1/4″ F/Hex
ECT50104 Lever Start 313035 7.1 – 35.4 lbf.in 0.8 – 4 N.m 3/8″ Sq. Dr.
ECT50150 Lever Start 313036 13.3 – 66.4 lbf.in 1.5 – 7.5 N.m 1/4″ F/Hex
ECT50154 Lever Start 313037 13.4 – 66.4 lbf.in 1.5 – 7.5 N.m 3/8″ Sq. Dr.
ECT50200 Lever Start 313038 15.9 – 79.7 lbf.in 1.8 – 9 N.m 1/4″ F/Hex
ECT50204 Lever Start 313039 15.9 – 79.7 lbf.in 1.8 – 9 N.m 3/8″ Sq. Dr.
ECT50300 Lever Start 313040 24.8 – 123.9 lbf.in 2.8 – 14 N.m 1/4″ F/Hex
ECT50304 Lever Start 313041 24.8 – 123.9 lbf.in 2.8 – 14 N.m 3/8″ Sq. Dr.
ECT50554 Lever Start 313042 47.8 – 239 lbf.in 5.4 – 27 N.m 3/8″ Sq. Dr.
ECT50704 Lever Start 313043 61.2 – 309.8 lbf.in 7 – 35 N.m 3/8″ Sq. Dr.
ECT50705 Lever Start 313044 62 – 309.8 lbf.in 7 – 35 N.m 1/2″ Sq. Dr.
ECT50854 Lever Start 313045 88.5 – 442.5 lbf.in 10 – 50 N.m 3/8″ Sq. Dr.
ECT50855 Lever Start 313046 88.5 – 442.5 lbf.in 10 – 50 N.m 1/2″ Sq. Dr.

TOOL BENEFITS

ECTD Controller:

      • Fully programmable via the touch screen
      • Digital I/O signals for interfacing with a machine & PLC interface for line control monitoring techniques.
      • Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
      • Collect and save all fastening data on SD memory card.
      • ECTD-5000 Controller provides fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ).

Error-Proofing:

      • Error-proof the fastening process and eliminate manufacturing risks and prevent product defects.
      • The EZ-Glıder positon control torque arm is an error-proofing system that detects and eliminates costly screw-fastening errors and ensures that every screw is correctly tightened in the correct sequence. Paired with ECT smart screwdrivers, the torque arm adds an extra layer of error-proofing to the fastening process.

Process Optimization:

      • Achieve multiple fastening tasks with one screwdriver system. A single fastening system can replace up to 15 power tools.
      • Digital I/O allows interfacing with a machine & PLC interface for line control monitoring techniques.
      • Programmable fastening sequences and workflows. Create standardized fastening workflows. Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
      • The built-in screw counting function ensures that all screws are accounted for during the assembly process.
      • Operational for thread tapping and prevailing torque applications.

Data Collection and Analysis:

      • Data collection – record and store torque and fastening data.
      • Collect and store essential quality data in a repository for data analytics, regulatory compliance, and traceability.
      • Transducerized Tool – traceability, superior accuracy, and precision. The transducer continuously measures torque in real-time and feeds data into the system.

Ergonomics:

      • The lever start tool helps prevent accidental or unintentional activation of the tool and ensures that the tool doesn’t turn on accidentally, reducing the risk of injury.

Mountz Quality Standards:

    • Low maintenance with an extended life cycle.
    • Swiss DC servo motor provides precise, accurate, and repeatable torque control.
    • Clean room compliant (ISO14644-1 2015 Class 5)
    • Free product software — no annual licensing required — savings of $2K.
