EPT-SERIES

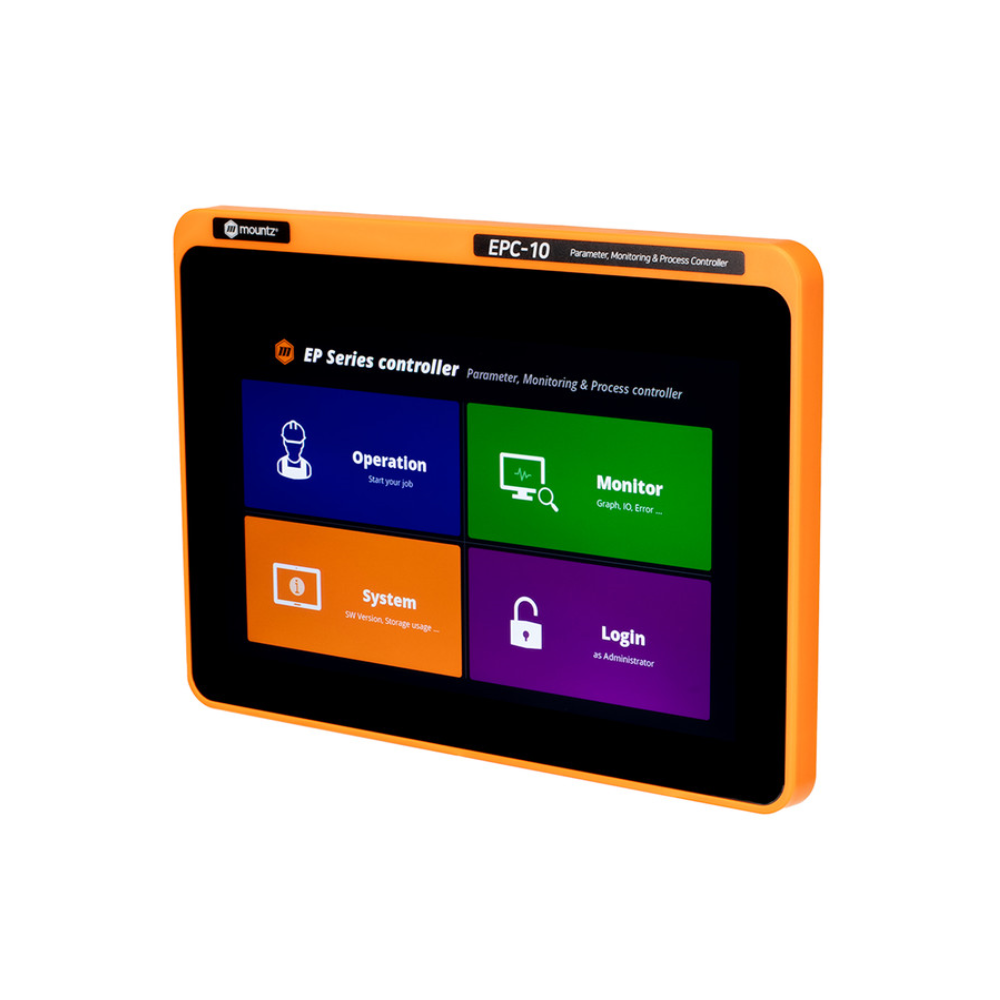

EPC-10 CONTROLLER

The EPC-10 wireless controller operates with only the EPT-Series Transducerized Smart Cordless Screwdrivers. The Job Manager function is a process control interface that makes it easy to create, save and recall visual assembly instructions for an operator to use. The controller features an I/O interface for communication with external devices such as PLC. Collect and store fastening data for up to 8 cordless screwdrivers.

MODEL ITEM NAME INPUT VAC
EPC-10 Controller 313005 100 ~240V, 50–60Hz,0.35A

TOOL BENEFITS

  • Able to connect up to 8 EPT cordless screwdrivers
  • Program or verify parameter settings for cordless screwdrivers
  • Job Manager interface makes it easy to create, save and recall visual assembly instructions for an operator to use.
  • Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time
  • Display fastening data in real-time. Automatically saves and stores data
  • Remote tool control
  • Screw counting
  • Front panel 10.1″ Color LCD with touch screen
  • 16 Input & 16 Output flexible I/O (25P D-Sub
  • Communication 1 x RS232C, 1 x Ethernet, WiFi
  • Protocol: Modbus
  • 4.0 MES system ready
  • Mini SD Card data memory slot (memory card included)
  • Mounting bracket included
  • Supports barcode scanner
  • Supports file transfer protocol (FTP) server
  • Clean room compliant (ISO14644-1 2015 Class 5)
