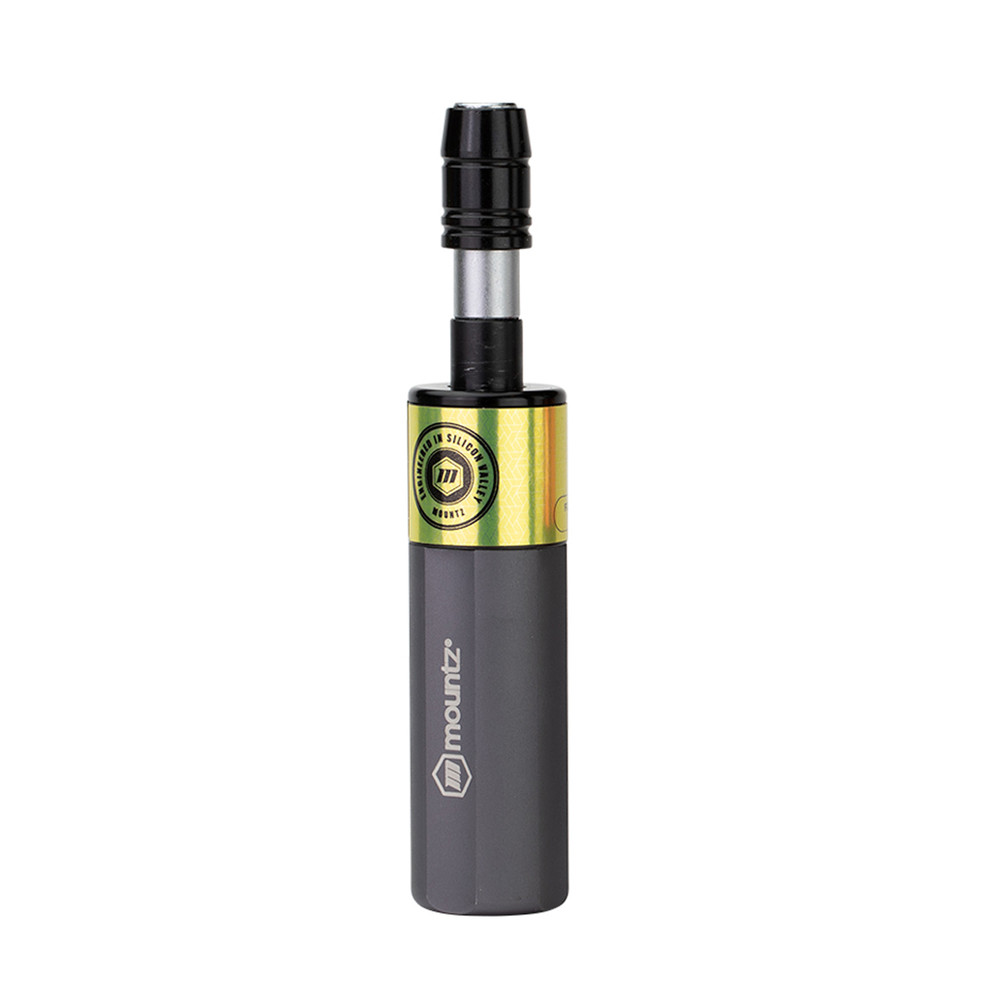

FG-IFR
PRESET TORQUE SCREWDRIVERS

The error-proofing torque screwdriver is engineered with a cam-over mechanism that prevents over-torque. These screwdrivers are fitted with an IFR (Impact Free Resetting) cam that eliminates any slight reaction occurring during the screwdriver’s resetting, which is ideal for assembling shock-sensitive components. Preset hand torque screwdrivers are suitable for fastening applications where operators repeatedly assemble parts at the same torque setting. As a quality control tool, the screwdriver allows any user to deliver the correct torque with confidence regardless of task and operator skill level. Using a quality torque screwdriver ensures that proper torque is being applied and maintains requirements associated with ISO quality standards.

The torque screwdriver is preset to the required torque value of the application. A preset torque screwdriver does not feature an external adjustment scale. These tools have an internal adjustment mechanism for setting the torque value and must be preset internally using a hex key and a torque tester. However, if the torque specification changes or a new project requires a different torque setting, the preset torque screwdriver is still flexible enough to set a new torque setting internally using a torque analyzer.

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
MODEL ITEM NAME LABEL COLOR AMERICAN S.I. DRIVE SIZE
FG-8i IFR 076651 Blue 0.8 – 8 lbf.in 9 – 90 cN.m 1/4″ F/Hex
FG-8i IFR 076656
Red
0.8 – 8 lbf.in 9 – 90 cN.m 1/4″ F/Hex
FG-8i IFR 076661 Green 0.8 – 8 lbf.in 9 – 90 cN.m 1/4″ F/Hex
FG-8i IFR 076666 Gold 0.8 – 8 lbf.in 9 – 90 cN.m 1/4″ F/Hex
FG-20i IFR 076652 Blue 2 – 20 lbf.in 22 – 226 cN.m 1/4″ F/Hex
FG-20i IFR 076657
Red
2 – 20 lbf.in 22 – 226 cN.m 1/4″ F/Hex
FG-20i IFR 076662 Green 2 – 20 lbf.in 22 – 226 cN.m 1/4″ F/Hex
FG-20i IFR 076667 Gold 2 – 20 lbf.in 22 – 226 cN.m 1/4″ F/Hex
FG-40i IFR 076653 Blue 4 – 40 lbf.in
0.4 – 4.5 N.m
1/4″ F/Hex
FG-40i IFR 076658
Red
4 – 40 lbf.in
0.4 – 4.5 N.m
1/4″ F/Hex
FG-40i IFR 076663 Green 4 – 40 lbf.in
0.4 – 4.5 N.m
1/4″ F/Hex
FG-40i IFR 076668 Gold 4 – 40 lbf.in
0.4 – 4.5 N.m
1/4″ F/Hex
FG-125i IFR 076654 Blue 25 – 125 lbf.in 2.8 – 14.1 N.m 1/4″ F/Hex
FG-125i IFR 076659
Red
25 – 125 lbf.in 2.8 – 14.1 N.m 1/4″ F/Hex
FG-125i IFR
076664
 Green 25 – 125 lbf.in 2.8 – 14.1 N.m 1/4″ F/Hex
FG-125i IFR 076669 Gold 25 – 125 lbf.in 2.8 – 14.1 N.m 1/4″ F/Hex

TOOL BENEFITS

    • Torque screwdriver prevents operators from influencing the torque output when tightening fasteners.
    • Accuracy and precision delivered for all fastening applications.
    • Engineered with a cam-over mechanism, the poka-yoke screwdriver prevents over-torque.
    • The FG IFR model is “impact-free resetting” when the cam mechanism resets.
    • Advanced cam-over technology provides a completely smooth reset reducing the risk of users loosening fasteners or breakage.
    • Calibration life 4x ISO standards
    • A unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
    • Unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.
    • A patented secure bit locking mechanism with a one-touch release can only be activated by the user for greater flexibility of applications and efficiency on the line.
    • Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
    • The screwdriver is torque limiting and calibrated in the CW direction only.
    • Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold, less likely to cause hand fatigue and make drivers easier to clean.
    • Enable quick and error-free tool and torque setting identification with four different color-coding label options.
    • Two-year unlimited warranty.
    • Lifetime guarantee against manufacturing defects.
    • The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
    • Mountz extensive Cmk testing happened over 20,000 continuous torque readings and is documented in a Mountz-authored technical whitepaper.
