HD-SERIES
HDC TORQUE CONTROLLERS

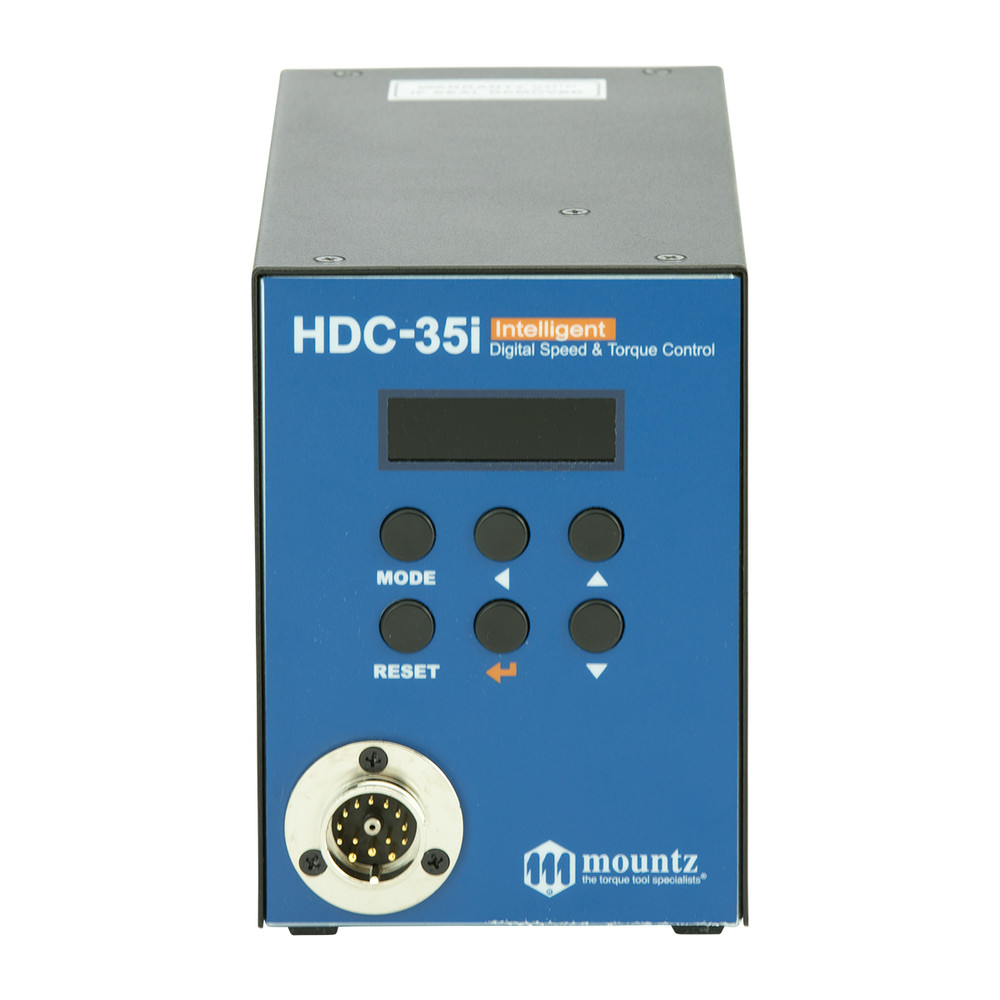

The HDC torque controllers operate with only the HD-Series automation electric screwdrivers. It is a single tool controller that offers programmable speed, angle and soft start options. I/O interface for communication with external devices such as PLC. The HDC40i controller operates with only the HD150, HD220 & HD450 electric screwdrivers. The HDC35i controller operates with only the PHD35N, PHD50N, PHD100N & HD100N electric screwdrivers.

MODEL ITEM NAME INPUT VAC OUTPUT VDC
HDC40i 145740 AC120VC ~ 220V, 50–60Hz DC40V, 3A
HDC35i 145820 AC120VC ~ 220V, 50–60Hz DC40V, 3A

TOOL BENEFITS

  • Programmable digital torque setting with memory for 8 preset torque settings.
  • Real-time monitoring and torque control of the tightening process.
  • Selectable speed up to 1,800 rpm.
  • Programming and monitoring with PC software.
  • Programmable multi-sequence operation.
  • Built-in Screw Counter (0 to 99 screws)
  • Detection of fastening error and displays error condition.
  • Visual assembly fastener count (count up or down), including total count.
  • Real time monitoring by PC program.
  • Detects – cross threading, omissions, unfinished rundowns and cycle complete.
  • Three selectable units of measure: lbf.in, N.m, Kgf.cm.
  • Selectable settings for Torque, Speed, Min & Max Angle, and Soft Start time.
  • Maximum angle control and verification
  • Minimum angle control and error reporting
  • 25P I/O interface to a PLC or 8 direct sensor ports.
  • Input / Output for PLC.
  • Output Signal Types: Count complete, Torque up and Count complete Alarm & Screw Missing
  • Angle Control: 0.1 – 10 turns
  • Preset Parameters: Torque, Speed, Soft Start & Angle in 8 preset numbers
  • Auto detection of the connected driver: Auto detection of the offset value from the EEProm on the driver
  • Error display: Error display by code no. in system, communication & pattern error group
  • Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time.
  • PC based program for parameter settings, monitoring and real time output
  • Input (Air Pressure): Min 5 Bar (72.5 PSI) / Max 6.5 Bar (92.2 PSI)
