HF-SERIES
ELECTRIC SCREWDRIVERS

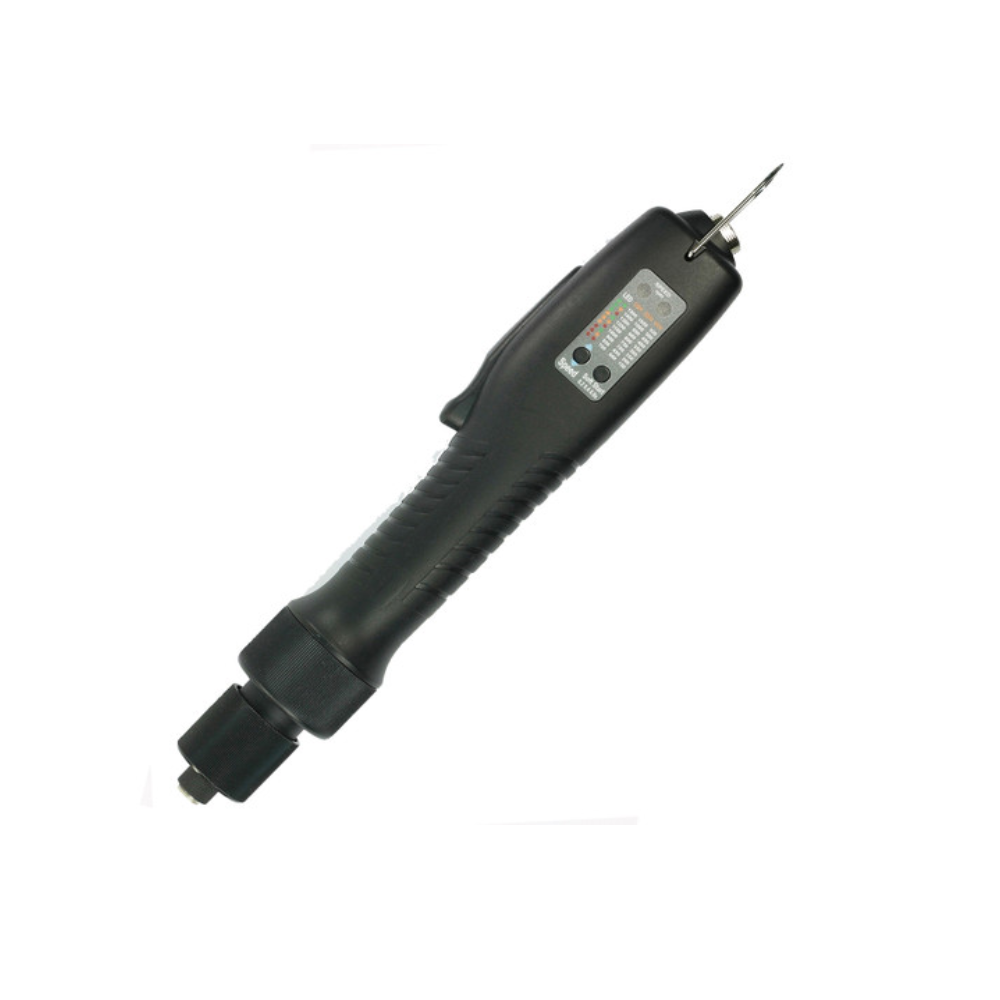

The HF-Series brushless electric torque screwdriver provides precision torque control. The electric screwdriver ensures quality and reduces overall assembly failures. These durable power tools feature a Swiss Maxon brushless motor design, which reduces the standard maintenance costs for electric screwdrivers. With almost no expendable parts and simple design, the brushless screwdriver life cycle is extended and maintains a clean working environment. The screwdriver requires less maintenance and part replacement and provides consistently reliable performance. Using a quality brushless electric screwdriver makes a safer world through accuracy and precision.

MODEL DRIVER TYPE ITEM NAME AMERICAN   S.I. DRIVE SIZE REQUIRES PROGRAM LOCK KEY
HF50N-A ESD Lever Start 145925 17.4 – 43.4 lbf.in 196.2 – 490.5 cN.m 1/4″ F/Hex T
HF50NP-A ESD Push-to-Start 145926 17.4 – 43.4 lbf.in 196.2 – 490.5 cN.m 1/4″ F/Hex T
HF100N-A ESD Lever Start 145927 34.7 – 87 lbf.in 392.4 – 981 cN.m 1/4″ F/Hex T

TOOL BENEFITS

      • HF-Series models range from 17.4 – 87 lbf.in. This driver is suitable for medium and higher torque applications.

Error-Proofing:

      • The external torque adjustment scale allows team leaders to change torque quickly and easily. For an extra layer of error-proofing, add a torque cover that prevents operators from making adjustments without approval, preventing mistakes.

Process Improvement:

      • Designed for high-production environments, HF drivers experience minimal heat build-up, even when the tool is operated continuously. Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction.
      • ESD safe tool prevents electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.
      • HF-Series drivers can be connected with the Scout Screw Counter for an additional layer of error-proofing.
      • The screwdriver features a selectable soft start mode (from 0.2-0.6 seconds) that controls the initial speed ramp. Adjust the starting speed of an electric screwdriver for a slow rotation, which allows for smooth engagement between fasteners and parts. It helps prevent cross-threading.
      • HF-Series models feature an adjustable RPM setting on the tool. The RPM setting is adjusted with designated RPM increments within the range of the tool model.

Mountz Quality Standard:

    • High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
