IPT
PRESET CLICK WRENCHES

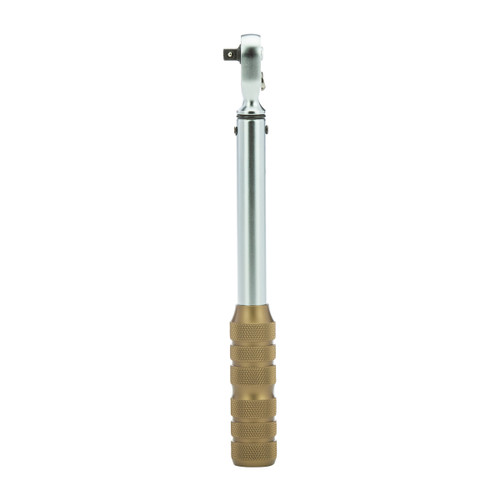

he IPT is a preset click wrench (internally adjustable) that ensures a reliable tightening process. A preset click wrench securely prevents an operator from either incidentally or intentionally tamper with a tool’s torque setting. The cost-effective click wrenches are durable and robust for a wide variety of industrial fastening applications. The wrench features a ratcheting head style and is built with high-quality materials. Low repair frequency and fewer repair costs. Ideal for production environments.

MODEL ITEM NAME AMERICAN S.I. METRIC DRIVE SIZE
IPT 18 280041 3.7 – 18.4 lbf.ft 5 – 25 N.m 0.5 – 2.6 kgf.m 1/4″ Sq. Dr.
IPT 36 280042 7.4 – 36.9 lbf.ft 10 – 50 N.m
1 – 5.1 kgf.m
3/8″ Sq. Dr.
IPT 73 280043 14.8 – 73.8 lbf.ft 20 – 100 N.m 2 – 10.2 kgf.m 3/8″ Sq. Dr.
IPT 110 280044 22.1 – 110.7 lbf.ft 30 – 150 N.m 3.1 – 15.3 kgf.m 3/8″ Sq. Dr.
IPT 150 280045 29.5 – 147.6 lbf.ft 40 – 200 N.m 4.1 – 20.4 kgf.m 1/2″ Sq. Dr.
IPT 250 280046
44.3 – 250.9 lbf.ft
60 – 340 N.m 6.1 – 34.7 kgf.m 1/2″ Sq. Dr.
IPT 369 280047 73.8 – 369 lbf.ft 100 – 500 N.m
10.2 – 51 kgf.m
3/4″ Sq. Dr.
IPT 885 280048 171.1 – 885.6 lbf.ft 240 – 1200 N.m 24.5 – 122.4 kgf.m 1″ Sq. Dr.

TOOL BENEFITS

  • Durable and robust for industrial fastening applications.
  • Preset wrench ensures that the correct torque value is consistently applied to each bolt.
  • Tamper-proof internal adjustment. No external adjustment scale – must be preset using a torque analyzer. Requires IPT torque adjusting set key to adjust the internal torque setting for models: IPT 18 – IPT 250 models, (sold separately). A 3mm allen key, extension bar, and a ratchet wrench or handle are needed to adjust the internal torque setting for models: IPT 369 – IPT 885 models.
  • Crafted with strong steel shaft with high corrosion resistance.
  • Lightly knurled non-slip grip.
  • Bi-directional ratchet head (48 tooth ratchet).
  • Positive click can be heard and felt when torque is reached.

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 4% of indicated setting).
