NF-SERIES
ELECTRIC SCREWDRIVERS

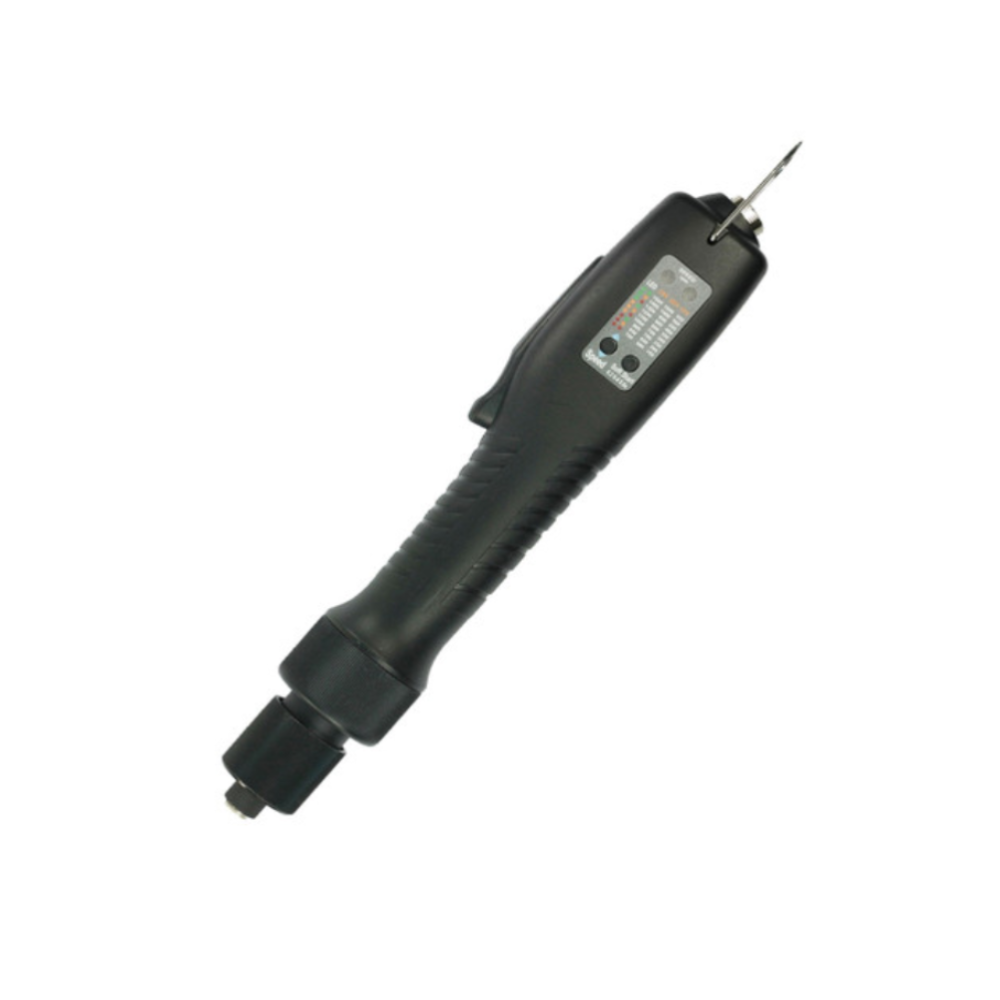

Designed for high-production manufacturing environments, Mountz Torque E-DRIV® NF-Series brushless electric screwdrivers feature a high-performance brushless motor design that provides durability and reduces common maintenance costs associated with brush type electric screwdrivers. Available in torque ranges from 2.6 to 39 lbf.in. Suitable for low, medium, and higher torque applications.

Soft stop, auto-reversing, and angle monitoring options are available for additional error-proofing and ergonomic functions.

NF drivers are ESD certified, ensuring less than 1 Ohm at the bit tip. ESD management in power tools ensures product quality, cost savings, and a reduction in overall ESD failures. Lapses in preventing the occurrence of electrostatic discharge can affect production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.

This versatile assembly power tool is available in four different model configurations to meet the demand of various unique fastening applications.

MODEL DRIVER TYPE ITEM NAME AMERICAN    S.I. DRIVE SIZE REQUIRES PROGRAM LOCK  KEY MINIMUM ADJUSTABLE RPM RANGE MAXIMUM ADJUSTABLE RPM RANGE
NF150-A ESD
Lever Start
145846 2.6 – 13 lbf.in 29.4 – 147 cN.m 1/4″ F/Hex T – –
NF150P-A ESD Push-to-Start 145849
2.6 – 13 lbf.in
29.4 – 147 cN.m 1/4″ F/Hex T – –
NF220-A ESD Lever Start 145847
5.2 – 19 lbf.in
58.9 – 215.8 cN.m 1/4″ F/Hex T – –
NF220P-A ESD Push-to-Start 145850 5.2 – 19 lbf.in 58.9 – 215.8 cN.m 1/4″ F/Hex T – –
NF450-A ESD Lever Start 145848 6.1 – 39 lbf.in 68.7 – 441 cN.m 1/4″ F/Hex T – –
NF450P-A ESD Push-to-Start 145851
6.1 – 39 lbf.in
68.7 – 441 cN.m 1/4″ F/Hex T – –
NF150-A ESD Plus Lever Start 145852
2.6 – 13 lbf.in
29.4 – 147 cN.m
1/4″ F/Hex
– – –
NF150P-A ESD Plus Push-to-Start 145855
2.6 – 13 lbf.in
29.4 – 147 cN.m
1/4″ F/Hex
– – –
NF220-A ESD Plus Lever Start
145853
5.2 – 19 lbf.in
58.9 – 215.8 cN.m
1/4″ F/Hex
– – –
NF220P-A ESD Plus Push-to-Start
145856
5.2 – 19 lbf.in
58.9 – 215.8 cN.m
1/4″ F/Hex
– – –
NF450-A ESD Plus Lever Start 145854 6.1 – 39 lbf.in 68.7 – 441 cN.m
1/4″ F/Hex
– – –
NF450P-A ESD Plus Push-to-Start 145857 6.1 – 39 lbf.in 68.7 – 441 cN.m
1/4″ F/Hex
– – –
NFS150-A ESD Lever Start 145865 2.6 – 13 lbf.in 29.4 – 147 cN.m 1/4″ F/Hex – 800 1700
NFS220-A ESD Lever Start 145866 5.2 – 19 lbf.in 58.9 – 215.8 cN.m 1/4″ F/Hex – 600 1200
NFT150-A ESD Lever Start 145858 2.6 – 13 lbf.in 29.4 – 147 cN.m 1/4″ F/Hex – – –
NFT220-A ESD Lever Start 145859 5.2 – 19 lbf.in 58.9 – 215.8 cN.m 1/4″ F/Hex – – –
NFT450-A ESD Lever Start 145860 6.1 – 39 lbf.in 68.7 – 441 cN.m 1/4″ F/Hex – – –

TOOL BENEFITS

      • NF-Series angle and auto reverse models are available in torque ranges from 2.6 to 39 lbf.in. Suitable for low, medium, and higher torque applications. torque applications.

Error-Proofing:

      • The external torque adjustment scale allows team leaders to change torque quickly and easily. For an extra layer of error-proofing, add a torque cover that prevents operators from making adjustments without approval, preventing mistakes.

Process Improvement:

      • Designed for high-production environments, NF drivers experience minimal heat build-up, even when the tool is operated continuously. Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction.
      • ESD safe tool prevents electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.
      • NF-Series drivers can be connected with the Scout Screw Counter for an additional layer of error-proofing.
      • The screwdriver is designed for installing heli-coil screw thread inserts, as well as light tapping and gauging applications. These installation tools feature the ability to set and adjust the speed, and the rotation (number of turns), as well as program an auto-reverse function. Set the start and stop point by angle control within a range of 0.25 – 30 turns. Also set the “Stop Holding Time” within a range of 0.1 to 6 seconds.
      • NF-Series Angle and Auto Reverse models feature an adjustable RPM setting on the tool. The RPM setting is adjusted with designated RPM increments within the range of the tool model.

Mountz Quality Standard:

      • High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
