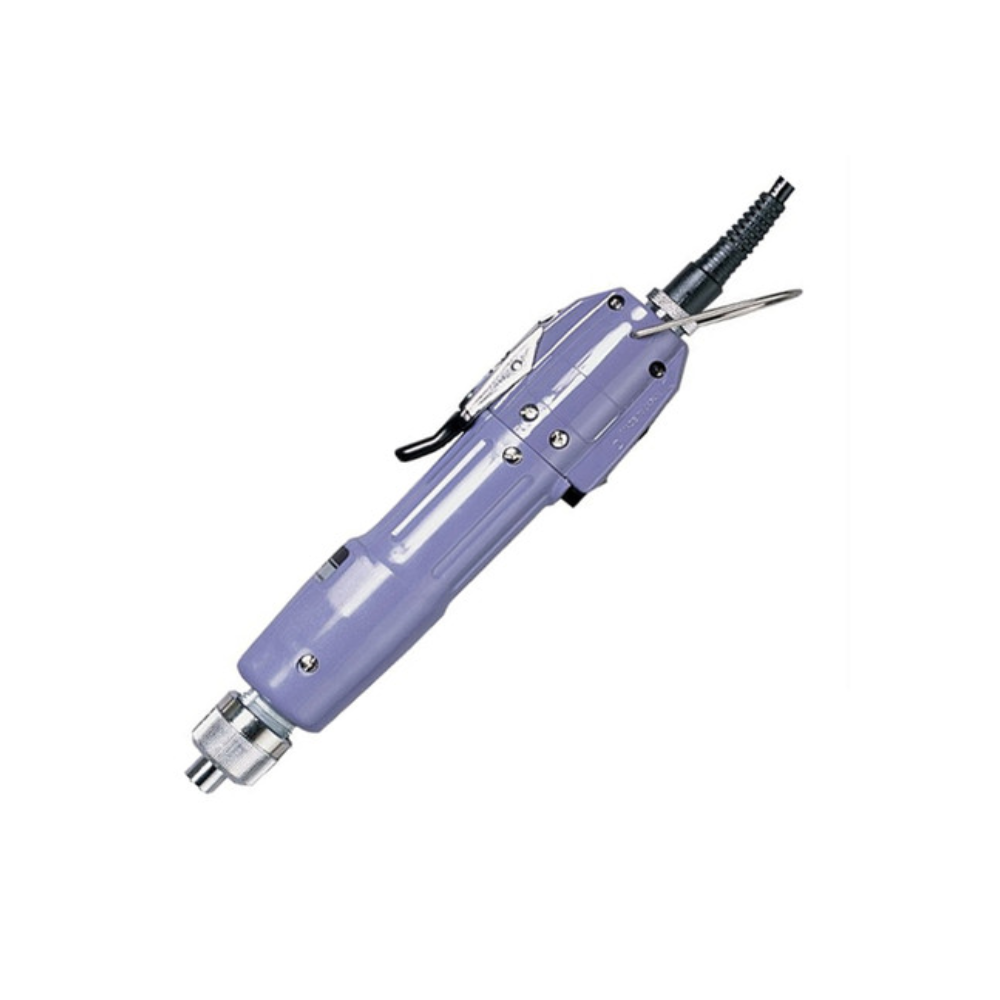

SS-SERIES
ELECTRIC SCREWDRIVERS

The SS-Series is electric torque screwdriver designed for precision and accuracy. The unique soft-stop shock absorbing clutch design is ideal for assembling shock sensitive components such as disk drives, plastics, and electronics. Ergonomically designed clutch and body case reduces impact and vibration transmitted in the screw fastening process, which delivers less torque reaction to operator.

MODEL DRIVER TYPE ITEM NAME AMERICAN S.I. DRIVE SIZE ESD SAFE
SS2000 Lever Start 144022 0.17 – 1.7 lbf.in 2 – 20 cN.m 4mm Hios Dr. F
SS3000-ESD Lever Start 144233 0.3 – 1.7 lbf.in 3 – 20 cN.m 4mm Hios Dr. T
SS6500X-ESD Lever Start 144249 2.2 – 11 lbf.in 25 – 130 cN.m 1/4″ F/Hex T

TOOL BENEFITS

  • Various models that range from 0.17 – 11 lbf.in.
  • Precision “Soft-Stop” clutch prevents shock to sensitive assemblies like disk drives, plastics, electronics, etc.
  • Ergonomically designed clutch and body case reduce impact and vibration transmitted in the screw fastening process.
  • The production tool is designed to increase productivity and enhance product quality through precision torque control and user comfort
  • Can be connected with the Scout Screw Counter Requires a Transformer (power supply) like the STC30 PLUS for SS-Serıes, CLT-60 or CLT-70STC3.
  • Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved. External torque adjustment scale
  • One-way clutch – direct drive in the counter-clockwise direction for easy removal of tightened fasteners.
  • ESD models are designed to prevent electrostatic discharge
