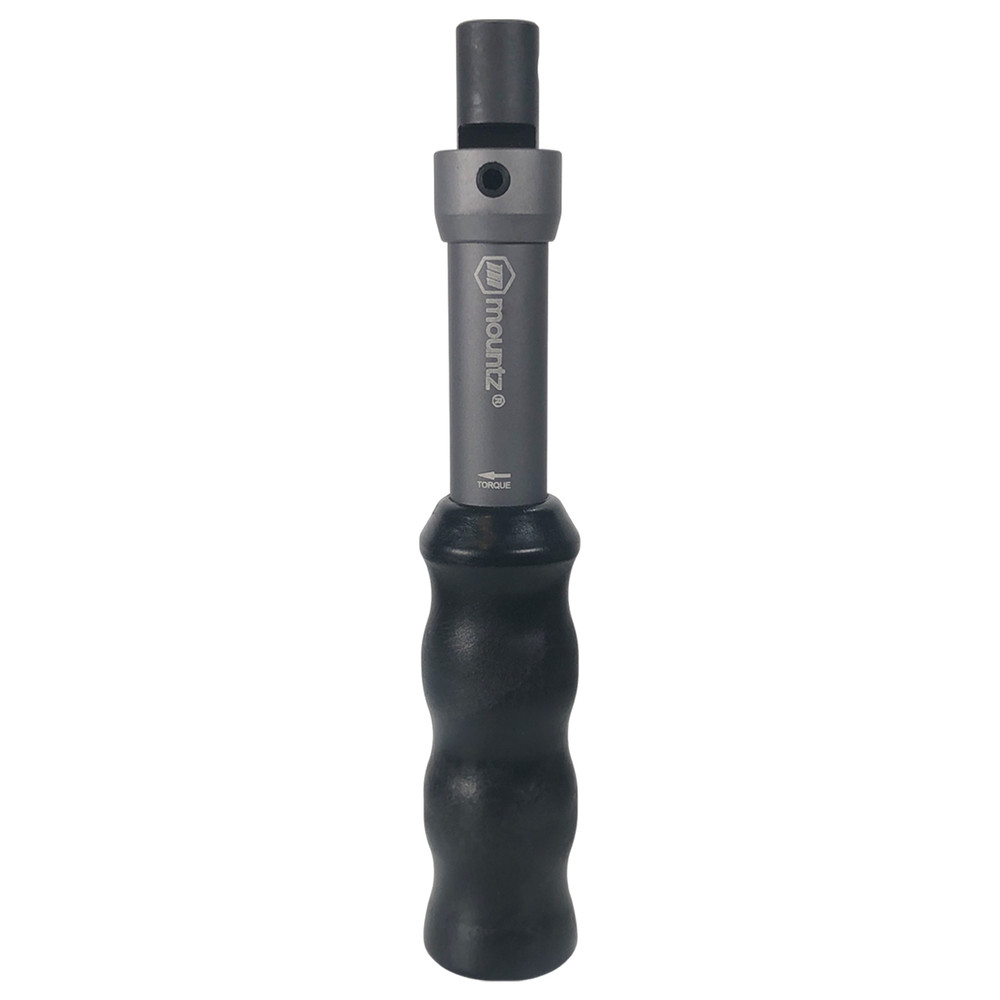

TBX
BREAK-OVER WRENCHES

Engineered and assembled in Silicon Valley, the Mountz TBX line of precision preset break-over wrenches ensures consistent process and quality control by providing operators with a break-over wrench that helps you support your quality control inspectors by empowering your workers to prevent assembly errors. Torque range suitable for low to higher torque applications.

Designed to tighten diverse fasteners accurately, break-over wrenches inform their operator when the right torque is reached by deflecting on their built-in hinge. As a result, you can reduce defective products and rework related to over- and under-torque conditions.

Their small size enables them to fit into areas with tight clearances, boosting productivity and project ROI.

With interchangeable heads, Mountz break-over wrenches allow you to switch out heads for tricky fasteners and to get more use out of your existing tools.

MODEL ITEM NAME AMERICAN S.I. DRIVE SIZE
TBX-12 076815 21.2 – 106.2 lbf.in 2.4 – 12 N.m Type A
TBX-12 ESD 076818 21.2 – 106.2 lbf.in
2.4 – 12 N.m
Type A
TBX-25 076816 44.3 – 221.3 lbf.in 5 – 25 N.m Type B
TBX-25 ESD 076819 44.3 – 221.3 lbf.in 5 – 25 N.m Type B

TOOL BENEFITS

  • Torque limiting wrench improves control of the tightening process
  • Reduces the risk of both over and under-tightening.
  • Break-over mechanism provides a visual indicator of achieving torque setting
  • Calibration life 4x ISO standards
  • Preset wrench ensures that the correct torque value is consistently applied to each fastener
  • Tamper-proof internal adjustment. No external adjustment scale – must be preset using a torque analyzer
  • Delivers repeatability, traceability and precision for tightening applications
  • Interchangeable end fitting design—selectable head types and sizes (open end, box head, hex key, fixed square drive heads and ratchet head)
  • Interchangeable heads are manufactured with a common centerline so the torque setting remains the same when head sizes are changed
