VB-SERIES
ELECTRIC SCREWDRIVERS

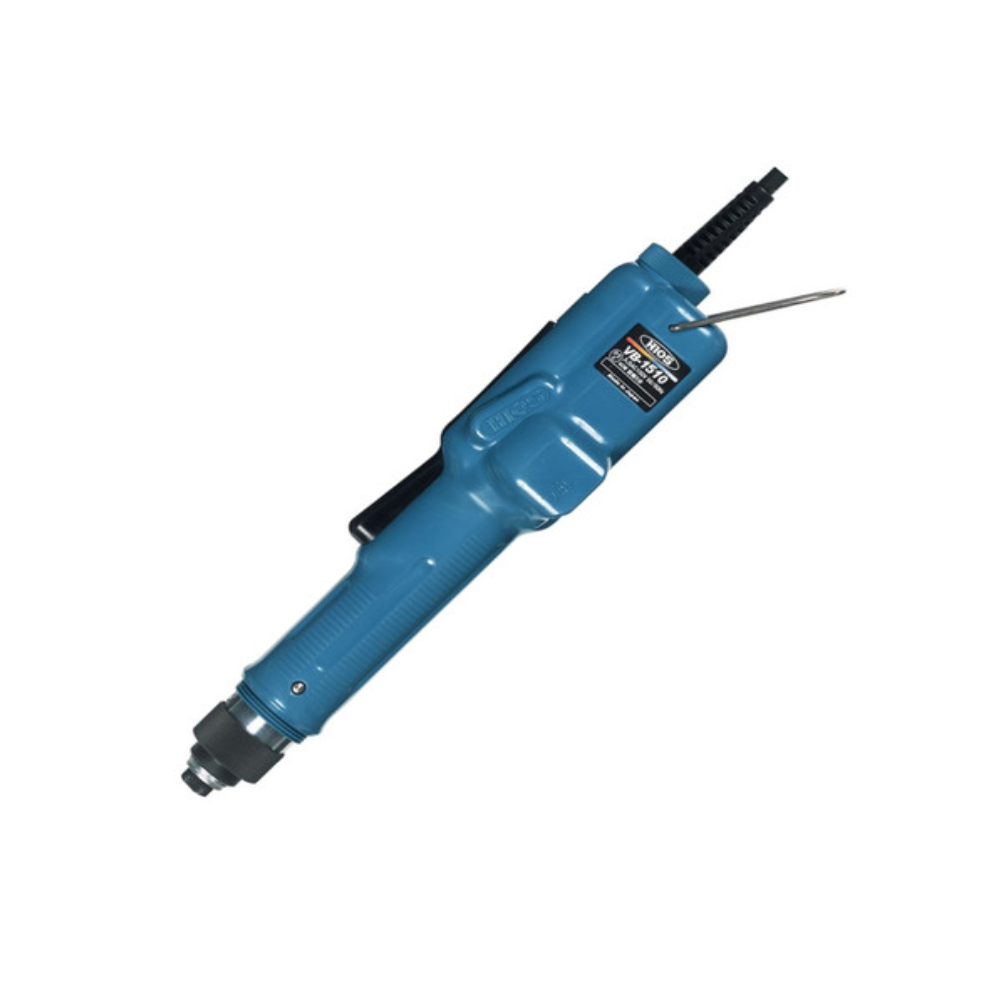

The HIOS VB-Series brushless electric screwdriver is designed to plug directly into a power outlet and does not require a separate power supply unit. Features a high performance brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers. Operates on a duty cycle of 0.5 seconds on and 3.5 seconds off.

MODEL DRIVER TYPE ITEM NAME 110V AMERICAN S.I. DRIVE SIZE
VB1510 Lever Start 144280 T 2.2 – 13 lbf.in 25 – 150 cN.m 1/4″ F/Hex
VB1510PS Push-to-Start 144281 T 2.2 – 13 lbf.in 25 – 150 cN.m 1/4″ F/Hex
VB1820 Lever Start 144282 T 3.5 – 16 lbf.in 40 – 180 cN.m 1/4″ F/Hex
VB1820PS Push-to-Start 144283 T 3.5 – 16 lbf.in 40 – 180 cN.m 1/4″ F/Hex
VB3012 Lever Start 144284 T 4.3 – 26 lbf.in 50 – 300 cN.m 1/4″ F/Hex
VB3012PS Push-to-Start 144285 T 4.3 – 26 lbf.in 50 – 300 cN.m 1/4″ F/Hex
VB4504  Lever Start 144286 T 8.7 – 39 lbf.in 100 – 450 cN.m 1/4″ F/Hex
VB4504PS Push-to-Start 144287 T 8.7 – 39 lbf.in 100 – 450 cN.m 1/4″ F/Hex

TOOL BENEFITS

    • Various models that range from 2.2 – 39 lbf.in

Designed for high production environments. Minimal heat build-up even when tool is operated continuously.

  • Plugs directly into a power outlet. Separate power supply not required
  • Positive auto shut-off.
  • Ergonomic hand grip.
  • Push-to-start and Lever operated styles available.
  • Duty cycle tool.
  • 120 VAC, 10 foot power cord.
  • External torque adjustment scale.
