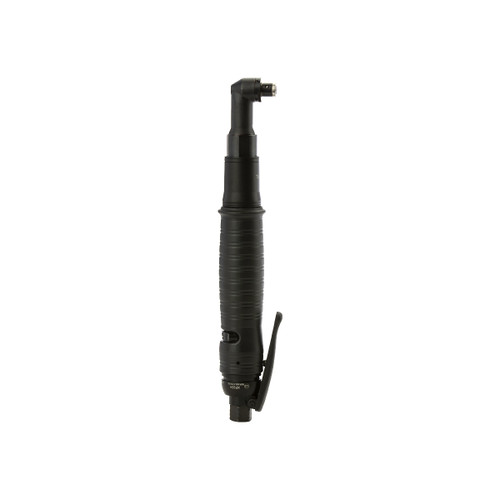

XP-SERIES RIGHT ANGLE
AIR SCREWDRIVERS

Crafted for high production environments, the Flex Power Right Angle air screwdriver provides durability, power and speed for assembly and manufacturing applications at an affordable price. Designed for safe operation and increase comfort for operators, the Flex Power tools provide lower noise decibels than comparative air tools as well as minimal vibration and low torque reaction on the operator. Featuring a patented clutch design the Flex Power tools delivers reliable accuracy with repeatable torque control. The clutch mechanism shuts off the air supply when the preset torque setting is achieved, preventing over-torque conditions from occurring.

MODEL ITEM NAME AMERICAN S.I. METRIC DRIVE SIZE RPM
XP35A 360015 2.6 – 17.4 lbf.in 0.3 – 2 N.m 2.9 – 10.8 N.m 1/4″ F/Hex 2200
XP40A 360016 4.3 – 30.4 lbf.in 0.5 – 3.4 N.m 5.1 – 34.7 kgf.cm 1/4″ F/Hex 1000
XP48A 360017 4.3 – 39.1 lbf.in 0.5 – 4.4 N.m 5.1 – 52 kgf.cm 1/4″ F/Hex 1700
XP55A 360018 10.4 – 65.1 lbf.in 1.2 – 7.4 N.m 106.1 – 664 kgf.cm 1/4″ F/Hex 1000
XP60A 360019 26 – 95.5 lbf.in 2.9 – 10.8 N.m 29.6 – 110.2 kgf.cm 1/4″ F/Hex 550

TOOL BENEFITS

  • Various models that range from 2.6 – 95.5 lbf.in
  • High performance oil free motor delivers environmentally friendly, durable, power and speed. One third more power than competitive models.
  • Safe operation with reduced noise, vibration and low torque reaction.
  • High accuracy patented clutch with precision automatic shut-off.
  • Soft texture ergonomic grip for operator comfort.
  • One touch torque adjustment, eliminates difficult set up of drivers.
  • Torque nut cover prevents operator tampering.
  • Four different colored tool bands allow color coding of specific torque values (Red, Green, Blue, Yellow are included)
  • Built with new aluminum alloy to provide durability and reduced maintenance – no cracking, fading or chipping found in composite body tools.
  • Wide ranges and RPM selections all for easy tool specification based on application requirements.
  • The drive on a right-angle tool is mounted at a 90-degree angle to the tool body.
