YF-SERIES
YFC CONTROLLER

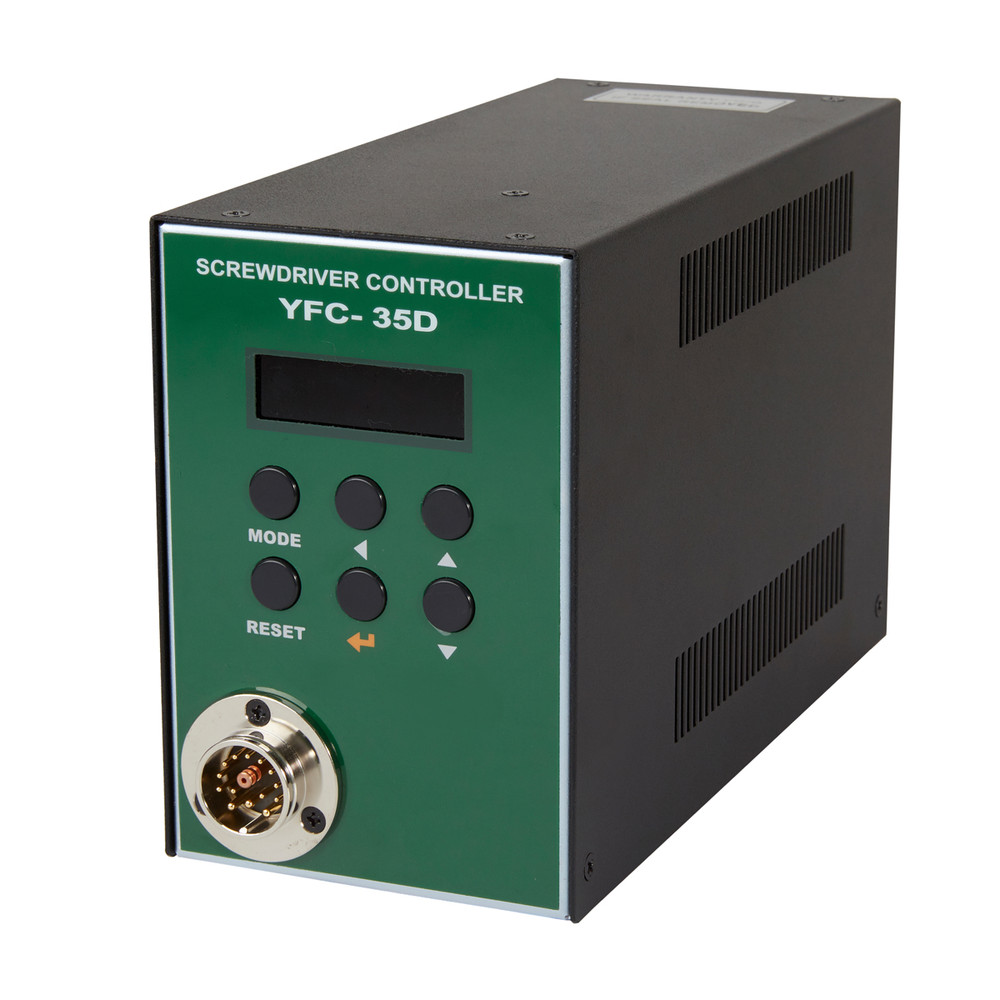

The YFC-35D operates with only the YF-Series brushless electric screwdrivers. It is a single tool controller that offers programmable speed, angle, auto reverse and soft start options. The controller provides programmable fastening options for sequence based assembly automation applications.

MODEL ITEM NAME INPUT VAC OUTPUT VDC
YFC-35D Controller 145877 AC120VC ~ 220V, 50–60Hz DC35V, 5A

TOOL BENEFITS

  • Connects with only YF-Series electric screwdrivers
  • Programmable speed, angle and auto reverse.
  • Programmable soft start mode (30 to 2000 ms).
  • Programmable multi-hit mode for soft joint applications.
  • Three-step multi-sequence mode: CW angle, CCW angle & holding time.
  • Unit can be connected to the Scout Screw Counter.
