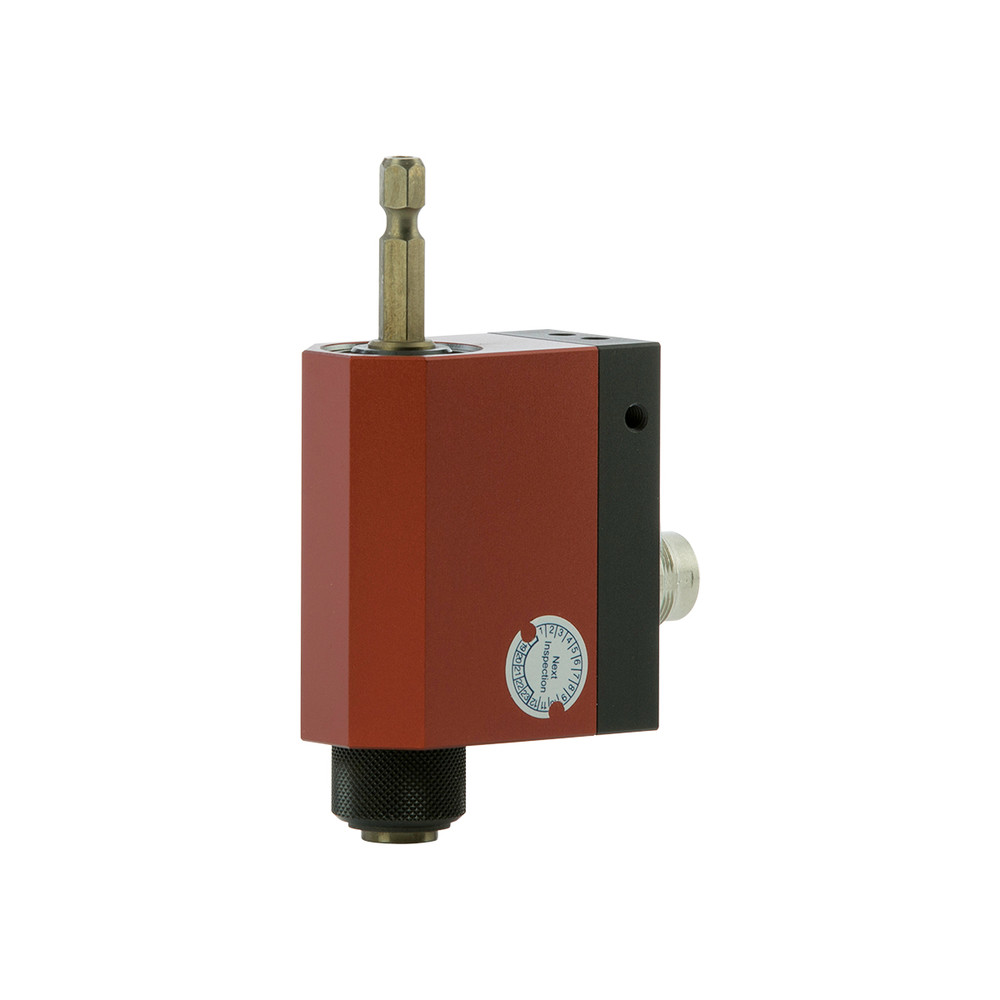

BLRTSX100i-HA
ROTARY TORQUE SENSOR

The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.
Accuracy ± .2% of full scale

SPECS

SPEC
Model: BLRTSX100i-HA
Item #: 170250
American: 10 – 100 lbf.in
S.I.: 113 – 1130 cN.m
Metric: 11.5 – 115 kgf.cm
Input Drive: 1/4 M/Hex
Output Drive: 1/4 F/Hex
Tool Length: 4
Tool Width: 1.1
Tool Height: 2
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • Non-contact signal transfer and maintenance free.
  • Angle Output: 2-channel quadrature, 360 pulses per rotation.
  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
  • Compact design & bi-directional.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the PTT or LTT
