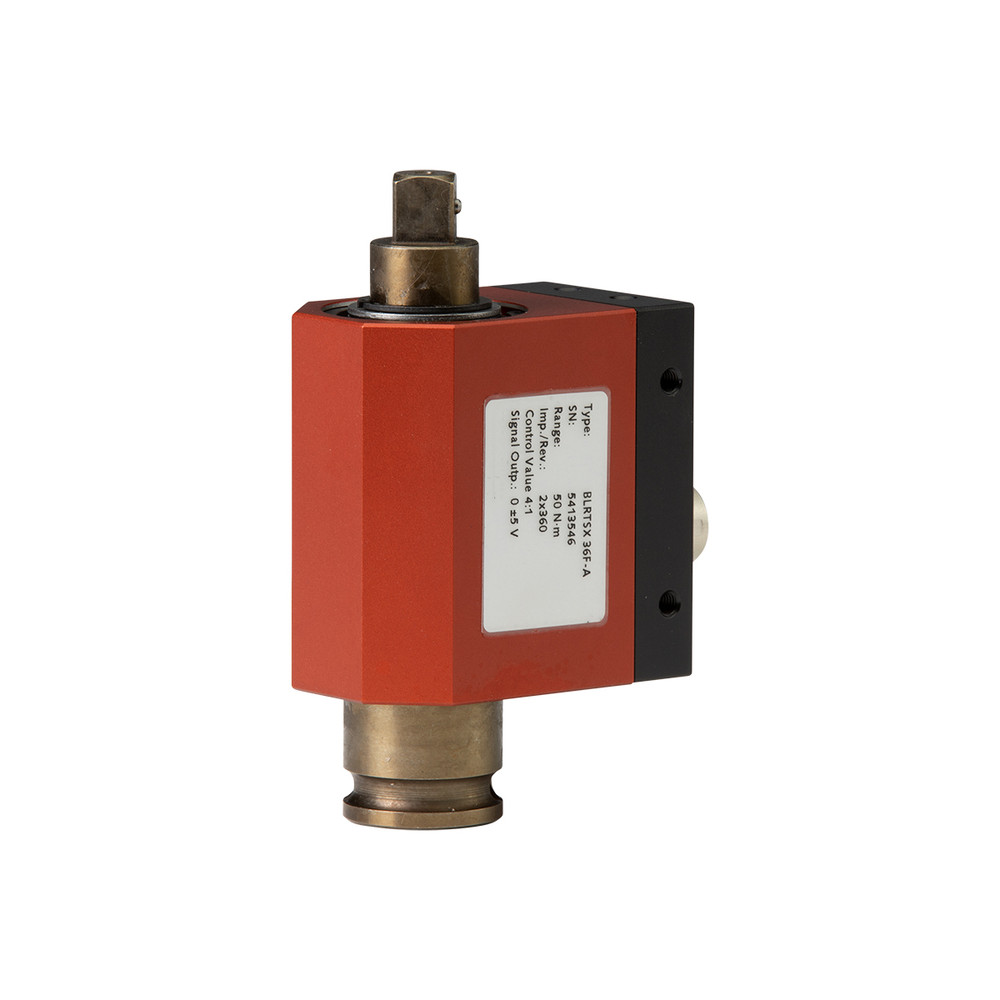

BLRTSX36F-A
ROTARY TORQUE SENSOR

The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.
Accuracy ± .2% of full scale

SPECS

SPEC
Model: BLRTSX36F-A
Item #: 170254
American: 4 – 36 lbf.ft
S.I.: 5 – 50 N.m
Metric: 0.6 – 5 kgf.m
Input Drive: 3/8 F/Sq
Output Drive: 3/8 M/Sq
Tool Weight: 1.09 lb.
Tool Length: 4
Tool Width: 1.5
Tool Height: 2
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • Non-contact signal transfer and maintenance free.
  • Angle Output: 2-channel quadrature, 360 pulses per rotation.
  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
  • Compact design & bi-directional.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the PTT or LTT
