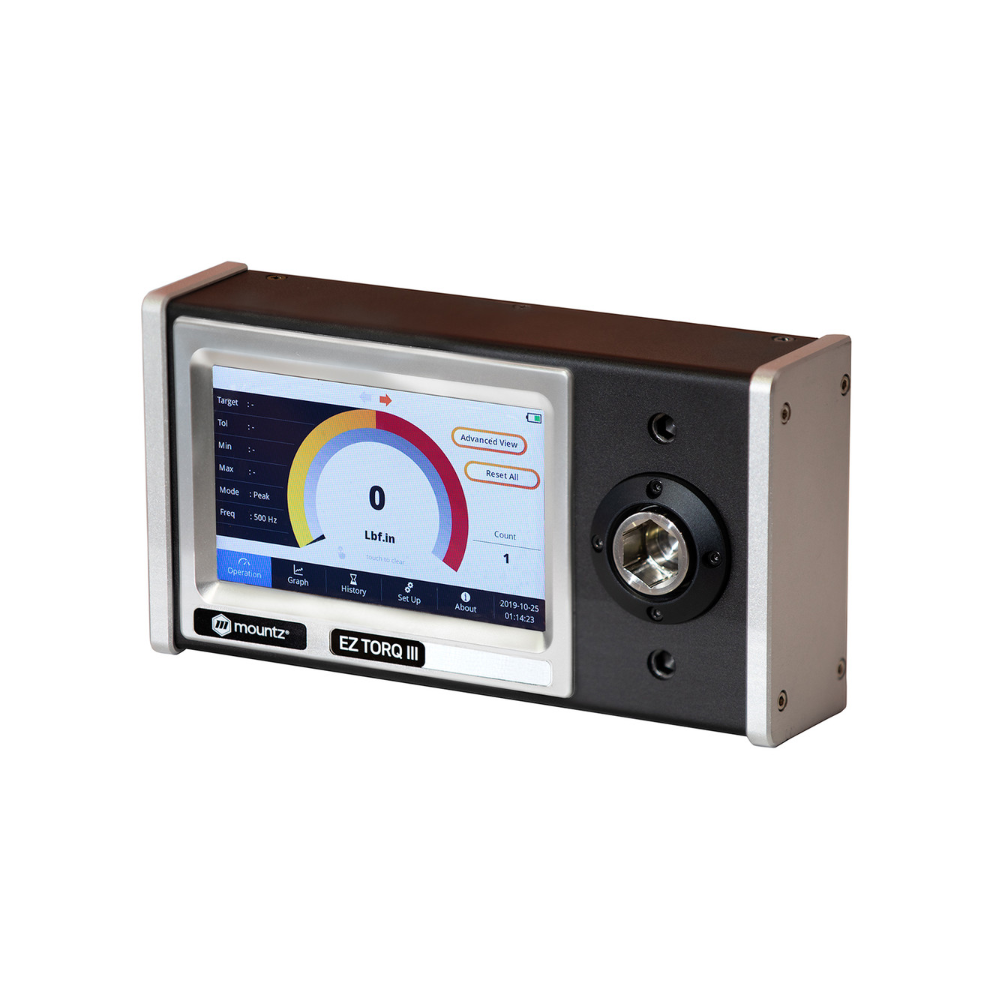

EZ-TorQ III
Torque Analyzer

Highly portable and user friendly, this battery-powered torque validation hub can be easily carried around the assembly line to spot check tools as part of a QA program or used at assembly stations for quick and easy torque tool validation and calibration.

Highly portable and user friendly, this battery-powered torque validation hub can be easily carried around the assembly line to spot check tools as part of a QA program or used at assembly stations for quick and easy torque tool validation and calibration. The new smartphone like touch-screen interface breaks down barriers and ensures quick and easy torque tool validation and calibration. EZ-TorQ digital torque tester features a built-in transducer. The easy-to-use torque analyzer is ideal for all small hand tools & non-impacting power tools.
The EZ-TorQ III is not for use in testing Impact or Pulse type tools.

 Torque Ranges

Model Range Drive Size
EZ-TorQ III 10i
1 – 10 lbf-in
 17mm Female/Hex
EZ-TorQ III 50i
5 – 50 lbf-in
 17mm Female/Hex
EZ-TorQ III 100i
10 – 100 lbf-in
 17mm Female/Hex
EZ-TorQ III 150i
15 – 150 lbf-in
 17mm Female/Hex
EZ-TorQ III 300
30 – 300 lbf-in
 17mm Female/Hex

 Complete Kit

Each EZ-TorQ III model includes a case, universal charger, 1/4” female/hex square drive adapter and two screw run down adapters

FEATURES

  • Supplied with an ISO 17025 Certification of Calibration
  • Three operating modes: Track, Peak, and First Peak
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm)
  • Vivid full color, smartphone-like touchscreen interface
  • Virtually unlimited data point storage with swappable SD card memory
  • Flash memory allows upgrades to be done by the user in the field & internet through the RS-232 port
  • Ability to download readings to PC via RS-232 or via USB
  • Features Go / No Go LEDs that illuminate when high or low tolerance setting is achieved or out of tolerance
  • Accuracy ± 0.5% of reading from 20% to 100% of full scale
  • Includes Spring Run Down Fixture for use when testing power tools
  • Supplied in fitted carrying case
  • On board software with SPC analysis

SPECIFICATIONS

Accuracy ± 0.5% of reading from 20% to 100% of full scale
± 1% of reading from 10% to 20% of full scale
Operating Modes Track, Peak, and First Peak
Data Output Via RS-232 or USB connection to PC
Filtering Selectable: 130Hz, 150Hz, and 500Hz
Dimensions (L x W x H): 7 1/4″ x 4 1/3″ x 2″
Standard Accessories Includes a case, Universal Charger, 1/4 F/Hex Sq. Dr. Adapter, USB Adapter & RS232 Cable Adapter.
Weight 4.5 lbs.
