Loading Bench
CALIBRATION EQUIPMENT

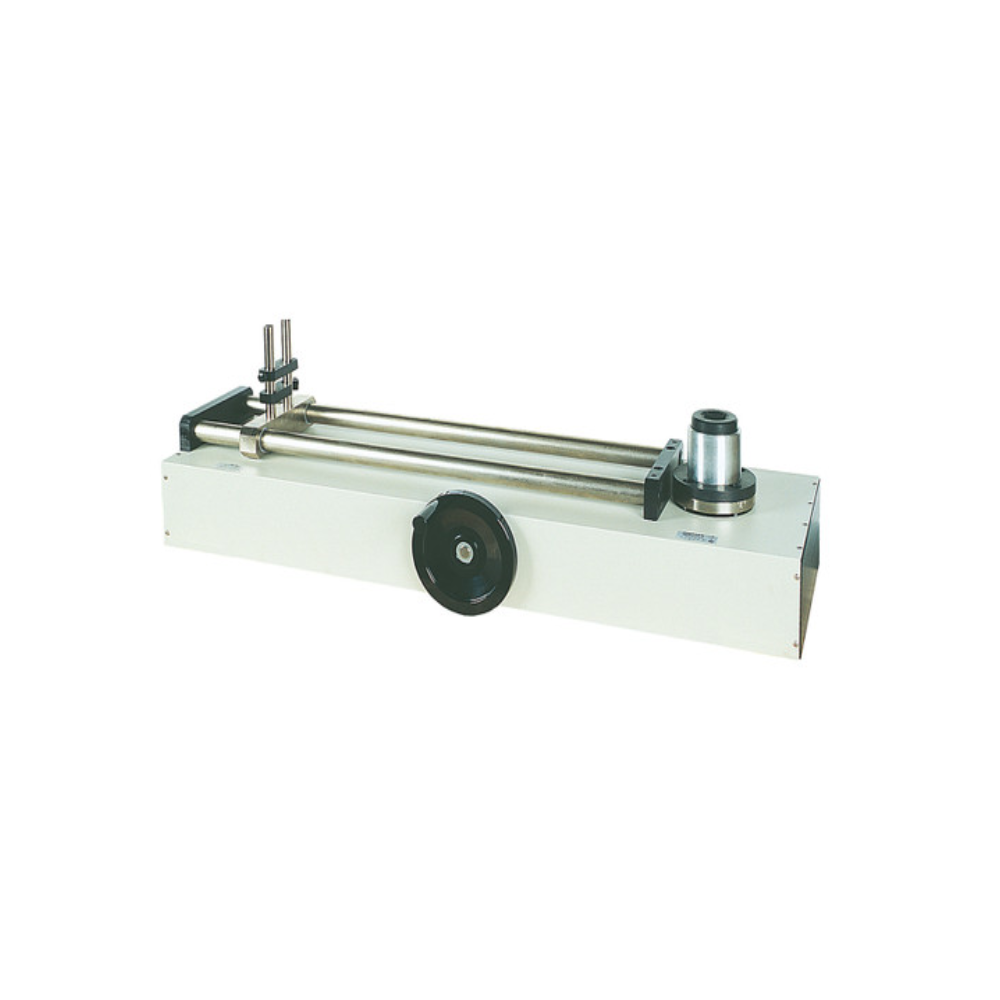

Effortlessly perform a torque wrench calibration with a mechanical torque wrench loader. The loading bench is a laboratory-grade instrument designed to enable accurate torque wrench calibration with less physical effort. The calibration instrument enables quick and easy torque wrench calibration and presetting, independent of human influence or transducer side and end load factors.

MODEL ITEM NUMBER Max Torque Range – American Torque Units – American Max Torque Range – S.I. Torque Units – S.I. Max Torque Range – Metric Torque Units – Metric
LB250F 063302
250
lbf.ft 340 N.m 34.5 kgf.m
LB750F 063301 750 lbf.ft 1020 N.m 103.5 kgf.m
LB2000F 063300 2000 lbf.ft 2720 N.m 276 kgf.m



TOOL BENEFITS

  • A calibration system that ensures accurate torque wrench calibration.
  • A drive system that assures load application, which eliminates any operator-induced test error.
  • A durable build, which reduces the operator’s effort required to attain and sustain torque during the calibration process.
  • A large wheel for smooth manual loading.
  • Both clockwise and counter-clockwise operation.
  • A selection of models ranging from 0-2000 lbf.ft
  • The ability to mount on a bench or cabinet.
  • Adjustability to the size of the wrench being tested.
  • Easy to use with the BMX torque sensor and an LTT or PTT torque analyzer.
