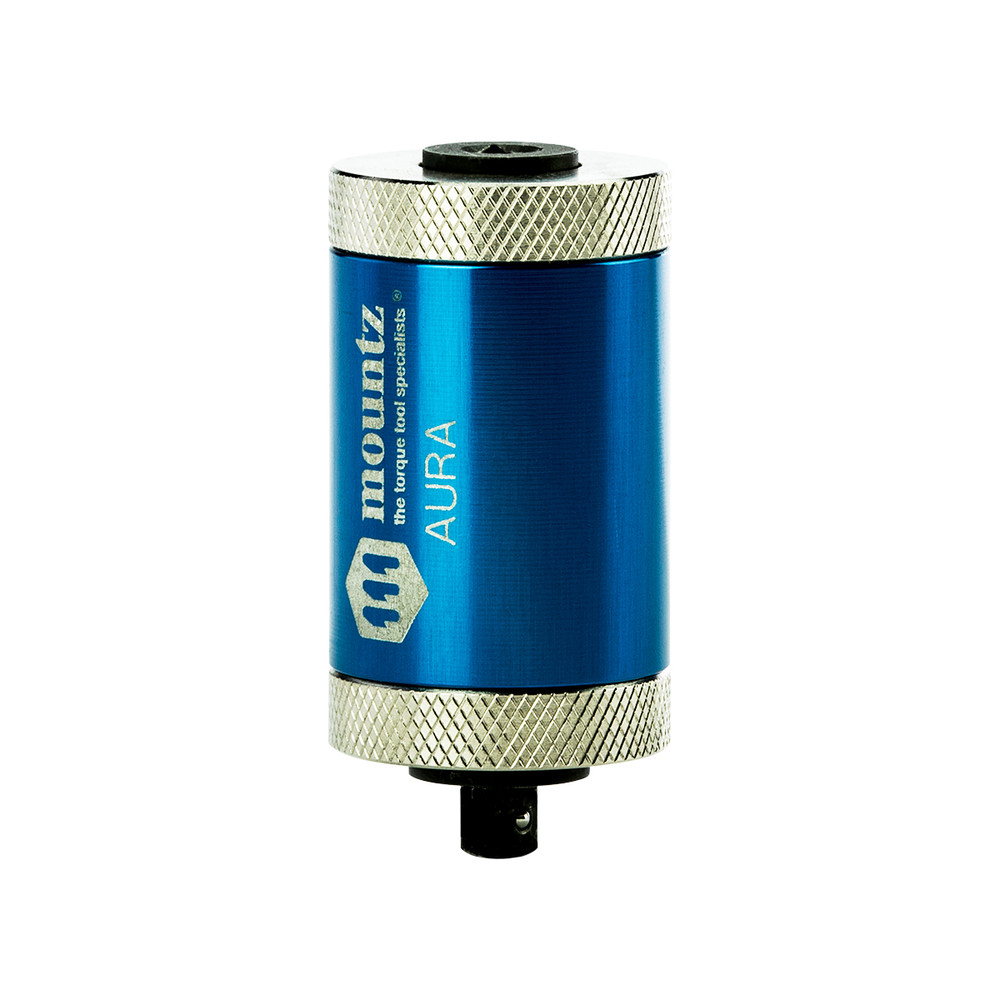

AURA
AUTO REVERSING RUN DOWN ADAPTERS

The AURA auto reversing run down adapters are designed to provide consistent and reliable torque readings for use with power driven torque control tools. The AURA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.

MODEL ITEM NAME AMERICAN S.I. METRIC INPUT DRIVE OUTPUT DRIVE
AURA 50i 632292 1-50 lbf.in 11.3-565 cN.m 1.2-57.6 kgf.cm 1/4 F/Sq 17mm Hex
AURA 50i 632293 1-50 lbf.in 11.3-565 cN.m 1.2-57.6 kgf.cm 1/4 F/Sq 1/4 M/Sq

TOOL BENEFITS

  • Ideal for testing and recording the results of power tools with a torque analyzer or sensor. Not recommended for pulse tools.
  • Operates in clockwise direction only. Once the tool shuts off, the AURA automatically unwinds for the next run down. Eliminates the need to back it out.
  • Designed to provide consistent and reliable torque readings for use with power driven torque control tools.
  • Adapter is mounted in-line between tool drive and transducer.
  • Compact size and lightweight.
  • Includes two springs to cover the torque range 1 – 50 lbf.in
