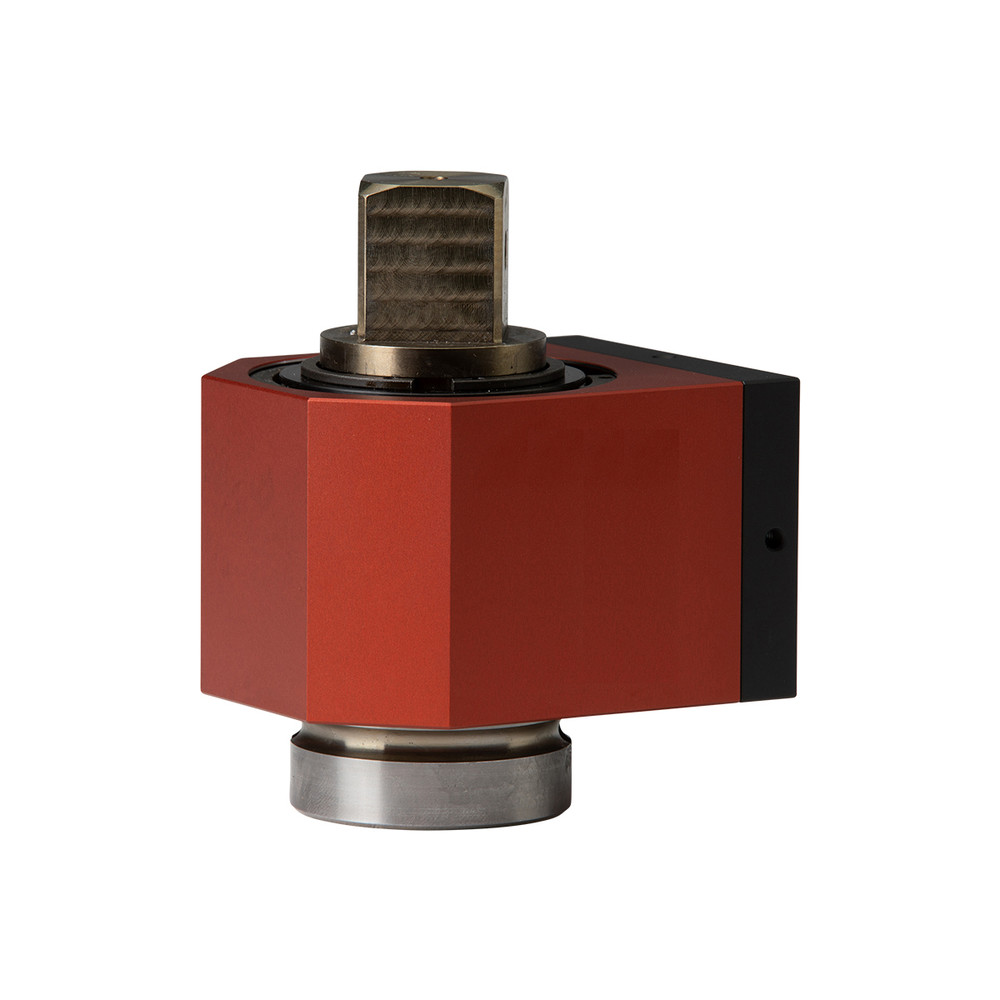

RTSX1500F-A
ROTARY TORQUE SENSOR

The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of full scale

SPECS

SPEC
Model: RTSX1500F-A
Item #: 170282
American: 150 – 1500 lbf.ft
S.I.: 203.3 – 2033 N.m
Metric: 20.7 – 207 kgf.m
Input Drive: 11/2 F/Sq
Output Drive: 11/2 M/Sq
Tool Length: 6.5
Tool Width: 4.3
Tool Height: 5
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • Angle output: 2-channel quadrature, 360 pulses per rotation.
  • Bi-directional.
  • For use with most power tools and rotational measurement applications.
  • Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT
