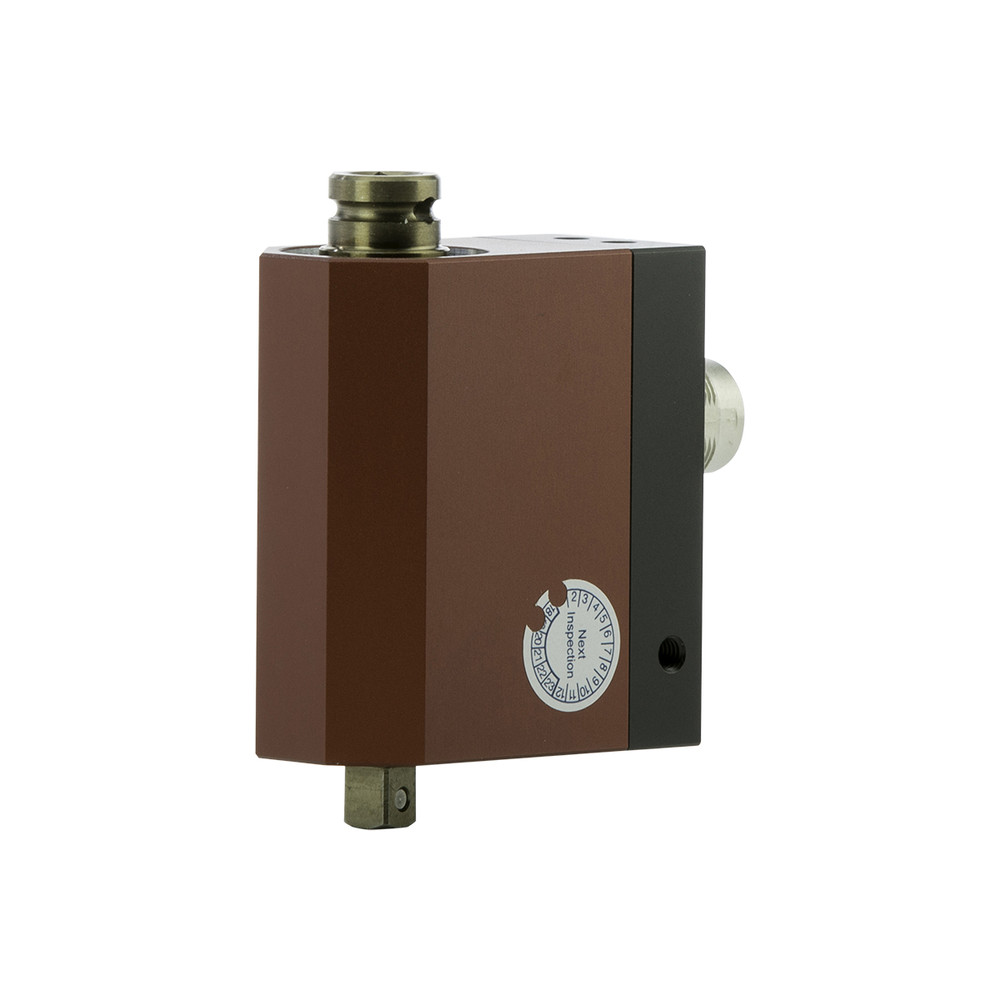

RTSX50i-A
ROTARY TORQUE SENSOR

The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of full scale

SPECS

SPEC
Model: RTSX50i-A
Item #: 170216
American: 5 – 50 lbf.in
S.I.: 56.5 – 565 cN.m
Metric: 5.5 – 57.6 kgf.cm
Input Drive: 1/4 F/Sq
Output Drive: 1/4 M/Sq
Tool Length: 3
Tool Width: 1.1
Tool Height: 2
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • Angle output: 2-channel quadrature, 360 pulses per rotation.
  • Bi-directional.
  • For use with most power tools and rotational measurement applications.
  • Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT
