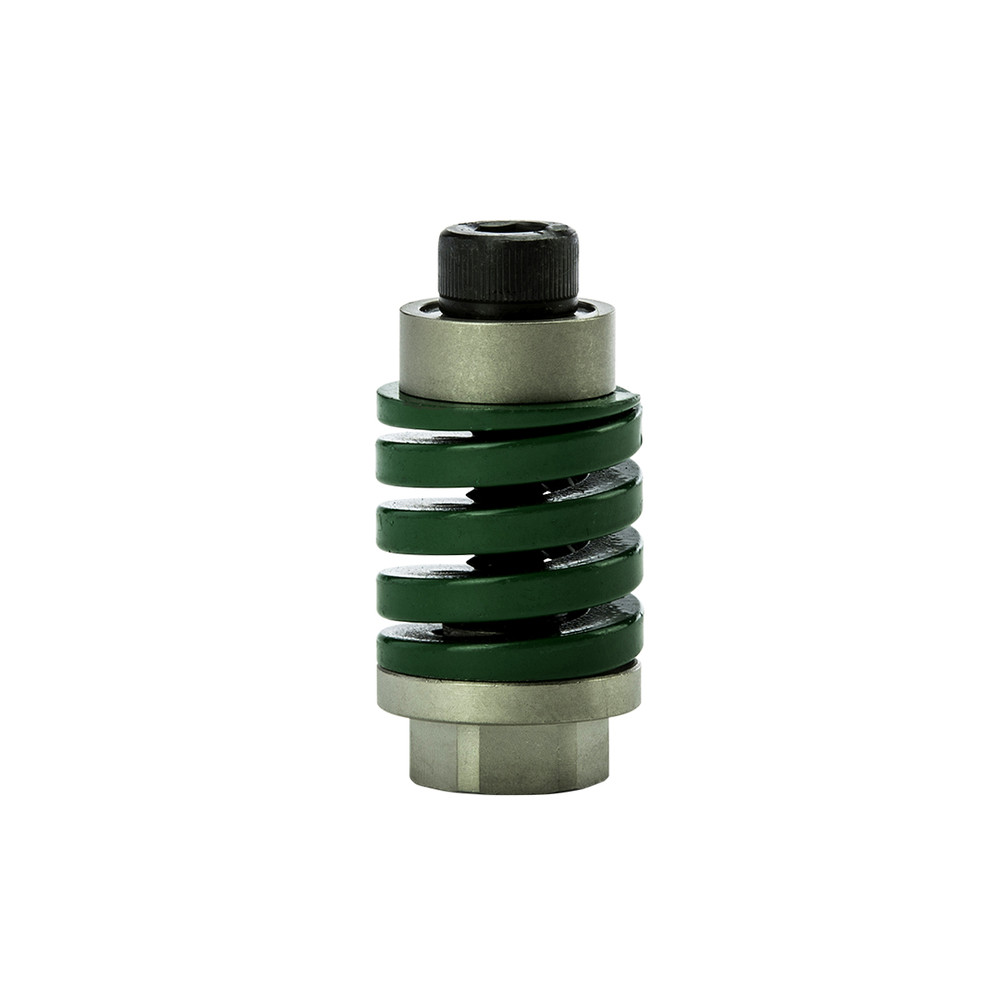

Spring RDA
Run Down Adapters

The spring run down adapters are designed only for EZ-TorQ analyzer. These units provide consistent and reliable torque readings for use with power driven torque control tools. The RDA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.

MODEL ITEM NUMBER AMERICAN S.I. METRIC INPUT DRIVE OUTPUT DRIVE
Spring RDA-10i 070600 1 – 10 lbf.in 11.3 – 113 cN.m 1.2 – 11.5 kgf.cm 5mm Hex 17mm Hex
Spring RDA-50i 070605 5 – 50 lbf.in 56.5 – 565 cN.m 5.8 – 57.6 kgf.cm
6mm Hex
17mm Hex
Spring RDA-100i 070610 10 – 100 lbf.in 113 – 1130 cN.m 11.5 – 115 kgf.cm
6mm Hex
17mm Hex
Spring RDA-150i 070615 15 – 150 lbf.in 169.5 – 1695 cN.m 17.3 – 173 kgf.cm
6mm Hex
17mm Hex

TOOL BENEFITS

    • Designed to provide consistent and reliable torque readings for use with power driven torque control tools.
    • Adapter is mounted in-line between tool drive and transducer.
    • Compact size and lightweight.
    • Operates in clockwise direction only. After each run down, the RDA should be completely backed-up.Compatible with only the EZ-TorQ II Analyzer
