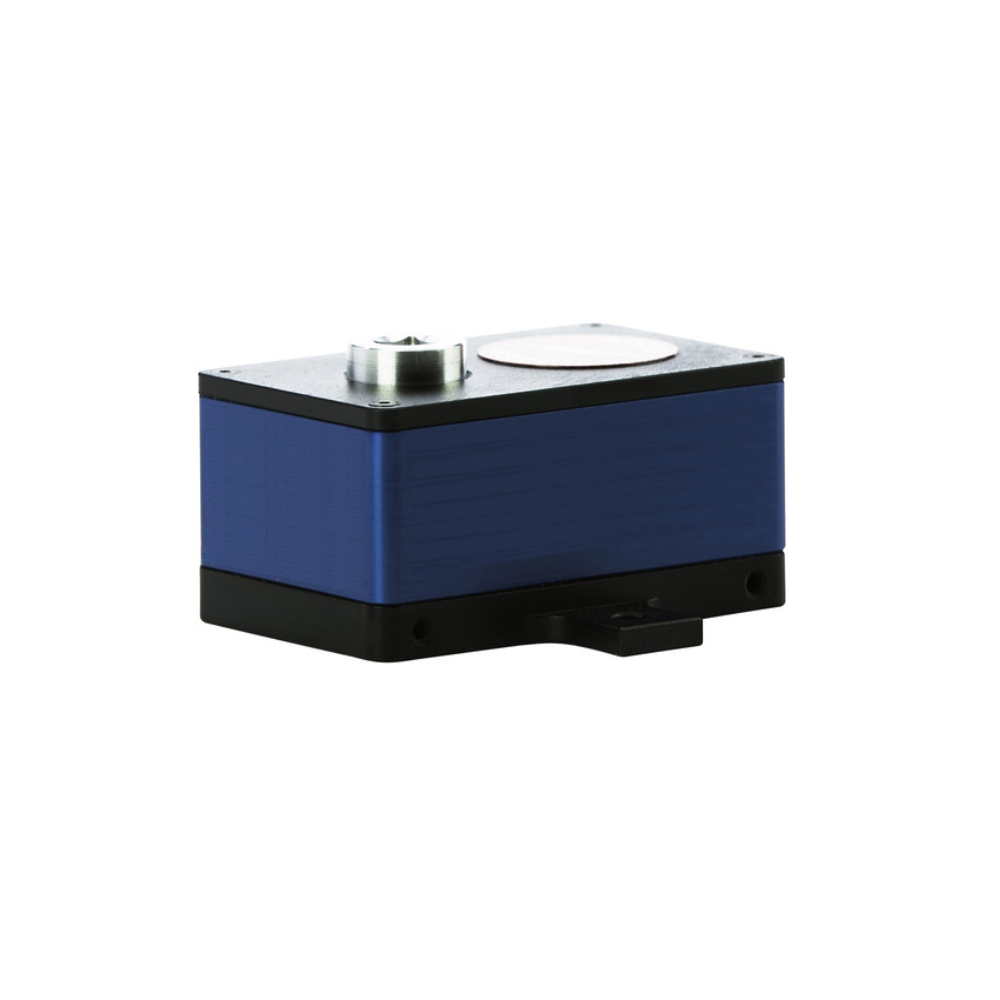

MTX10z
TORQUE SENSOR

The MTX is a low torque sensor designed for calibrating and testing small hand screwdrivers, torque wrenches and power tools. With its low profile design, the calibration instrument can be used for automated applications, by mounting it to a palletized system. This saves time as there is need to remove the driver from the robot or off the automated system for calibration. These versatile torque sensors are used in conjunction with a torque tester.

Accuracy ± .25% of full scale

SPECS

SPEC
Model: MTX10z
Item #: 079007
Drive Size: 1/4″ F/Sq
American: 1 – 10 ozf.in
S.I.: 0.7 – 7.1 cN.m
Metric: 0.07 – 0.7 kgf.cm
Tool Length: 2.55
Tool Width: 1.6
Tool Height: 1
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • For calibrating low torque hand screwdrivers, wrenches and power tools.
  • The low profile design makes it ideal for calibrating robotic drivers on the assembly line.
  • Features ARCII technology, an instant auto-recognition system of the MTX connected to the PTT or LTT.
  • Mountable.
  • 1/4” female square drive.
  • Bi-directional
