MTS
Torque Stand

Measuring ranges 0 – 50.00 Ncm, 0 – 2.000 Nm, 5.000 Nm or 10.00 Nm resolution depending on the range 0.01 Ncm, 0.001 Nm or 0.01 Nm

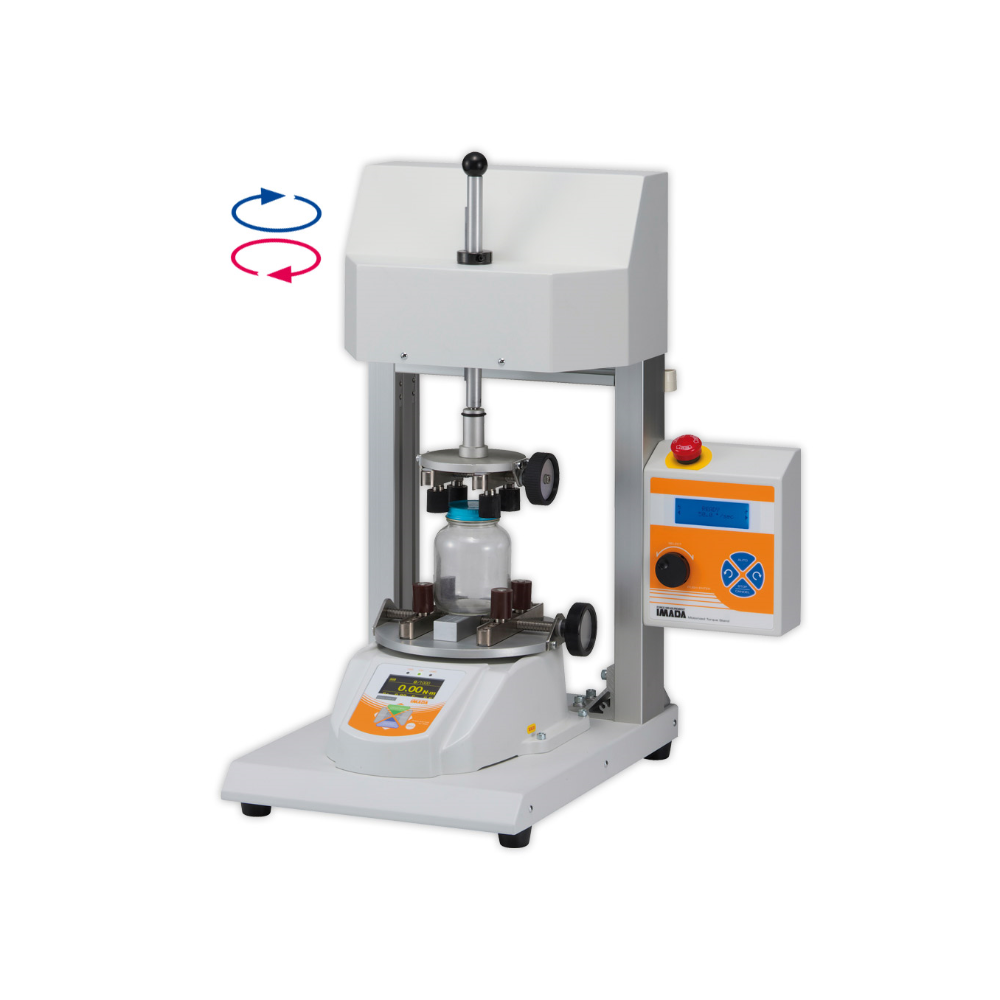

Motorized test stand for determining and testing the opening and closing forces of screw caps, used for bottles, cans, cosmetic products etc. Further application areas are testing torque switches, plugs, lenses etc.
The most important sectors of industry are the pharmaceutical, cosmetics, beverage and electronic industry, etc.

Torque stand assures constant, identical measuring conditions

Special Features Torque Stand

  • The motorized torque stand MTS can be configurated according the customers demand. The torque stand exists out of a test stand depending the sample height, a torque meter with different ranges and features as well as a upper chuck and lower table.
  • The torque will be measured without influence by the operator. The results are more accurate and significant as measured with a manual device.
  • 3 operation modes:
    – Manual: Revolution occurs in the selected direction, until the stop-switch will be pressed.
    – +NG Stop: Revolution occurs in one direction, until the adjusted value is reached.
    – Endurance Test: Repeats the operation in two directions (open – close), within the adjusted limits (MTS series). The number of repeats are shown in the display. The opening and closing angle, as well as the number of repeats can be adjusted with torque stand MTS-RA series.
  • The following information are shown in the display:
    – Rotational speed e. g. 51.5 °/sec
    – Status of the instrument
    – Operation mode
    – Counter for endurance test
  • Max. size of samples:
    – upper clamping chuck Ø 20 – 90 mm or Ø 7 – 50 mm
    – lower clamping table Ø 20 – 160 mm or Ø 7 – 50 mm
    – Max. available sample height 140, 240 mm or 340 mm
  • The rotation speed can continuously be adjusted to 3 – 90 degree/sec. The value will be displayed

Special Features DTXS and DTXA

  • 2 Display Modes:
    – Real Time: displays the actual torque
    – Peak Force: to measure and save the peak torque
  • Display the opening or closing torque (clockwise and counter clockwise torque)
  • 3 selectable units: Nm, kgfm, Lbf.in or Ncm, kgfcm, ozf.in
  • Programmable high/low setpoints for go/no-go testing with colour-coded indicators (orange, green, red) in the LED display
  • Torque meter with high internal sampling rate of 2000 times/sec to capture peak values
  • Storage of 1000 values for recall:
    – On the display
    – For data transfer to a PC
    – For printing with report
  • 3 output signals:
    USB, RS-232and analog
  • Display update time 16 times/sec
  • Easy to read display (OLED) for Real Time or Peak value including units. Depending to the series additional information are displayed as e. g. memory, number of good tests, limits, 1st and 2nd peak values etc.
  • Special features of model DTXA in comparison to the standard model DTXS:
  • Indication of 1st and 2nd peak value per measurement, e. g. closure with predetermined break point
  • Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
  • 2 comparator values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
  • Special features of model MTS-RA in combination with the torque meter DTXA in comparison with the standard model MTS with the torque meter DTXS

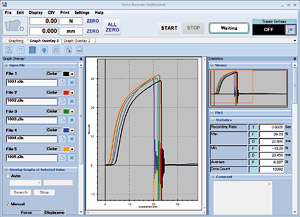

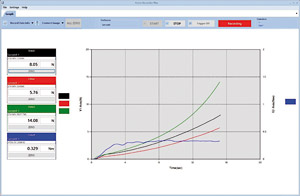

  • Torque-angle measurements are possible. The software “Force Recorder Professional” is additionally required

Standard Features

  • Torque stand MTS for fast, accurate measuring
  • High repeatability
  • Easy to use
  • Inclusive 30 days trial version of Software »Force Recorder Professional«
  • Manufacturer`s certificate with measured values is included

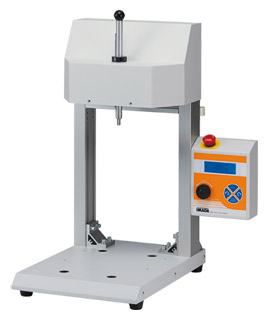

 Available Torque Stands

Model Max. Sample Height
 Description
MTS-10N 140 mm
MTS-10N-L 240 mm
MTS-10N-2L 340 mm
MTS-10N-RA 140 mm with rotary encoder
MTS-10N-L-RA 240 mm with rotary encoder
MTS-10N-2L-RA 340 mm with rotary encoder

 Available Models – Standard Model*

Model Model Measruing Range
 Resolution
DTXS-0.5N DTXA-0.5N 0 – 50.00 Ncm 0.01 Ncm
DTXS-2N DTXA-2N 0 – 2.000 Nm (200 Ncm) 0.001 Nm (0.1 Ncm)
DTXS-5N DTXA-5N 0 – 5.000 Nm (500 Ncm) 0.001 Nm (0.1 Ncm)
DTXS-10N DTXA-10N 0 – 10.00 Nm (1000 Ncm) 0.01 Nm (1 Ncm)

 *inclusive table DT-TB

Available Models – self configurated

Model Model Description
DTXS-0.5N-Z DTXA-0.5N-Z without table
DTXS-2N-Z DTXA-2N-Z without table
DTXS-5N-Z DTXA-5N-Z without table
DTXS-10N-Z DTXA-10N-Z without table

SPECIFICATIONS

Torque Stand
Sample Height: Max. 140, 240 or 340 mm
Speed: 3 – 90 °/s adjustable
Temperature range: 0 – 40 °C
Air humidity: 80 % RH, max.
Power supply: 100 – 240 V AC, 50/60 Hz, max. 3 A
Housing dimensions: See dimensions
Weight: 14 kg net without accessories
Torque Meter
Accuracy: ±0.5 % full scale ±1 digit
Measuring frequency: 2000 times/s
Selectable units: Nm, kgfm, Lb.in or Ncm, kgfcm, Lb.in
Display: OLED, 4 digit, 14 mm high
Overload protection: Approx. 200 % full scale, flashing display beyond 110 % full scale
Display update: 16 times/sec
Memory: Internal memory for max. 1000 values, (clockwise or counter clockwise and peak values)
Setpoints: MIN (-NG), MAX (+NG) adjustable with output signal
Output signal: USB
RS-232 (8, 1, N, 19200)
analog ±2 V DC
Open collector 4x (+NG, Ok, -NG, OVL), max. 30 V DC, 10 mA
overload signal
Temperature range: 0 – 40 °C
Air humidity: 80 % RH max.

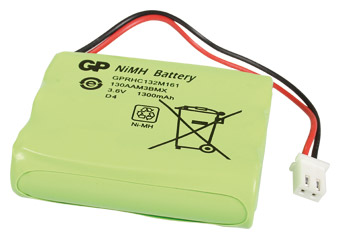

Power supply: Rechargeable NiMH batteries (approx. 6.5 hours continuous use,

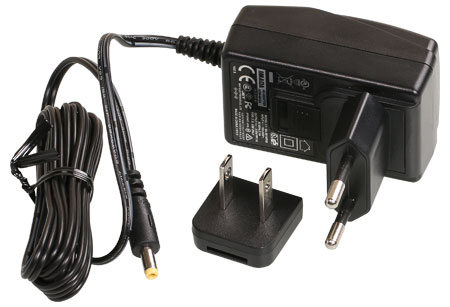

approx. 2 h charging time) and/or AC adapter 100 – 240 V AC
and two adapters (EU/USA)
Housing dimensions: 305 x 233 x 127 mm (LxWxH)
Weight, net (gross): Approx. 4900 g (5900 g)
Additional functions model DTXA in comparison to model DTXS:
Memory: Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
High low output: 2 high/low output values can be set. If the reading reaches one of the output values, data will be sent to external devices (e. g. PC, printer) for data recording
Extended peak mode: Indication of two peak values per measurement
Additional functions model MTS-RA in combination with DTXA:
Torque-displacement-measurement: The Software Force Recorder Professional is required

Specifications subject to change without notice!

REQUIRED MODULS

Torque Stand

Available with standard features or with code RA (Necessary for torque-angle measurements). Sample Height up to 340 mm

















Torque Meter

Available as standard model DTXS or DTXS-Z, as well as torque meter DTXA or DTXA-Z with additional functions (Necessary for torque-angle measurements).
The models DTXS and DTXA will be delivered with standard table, while type Z has no clamping device.











Lower Clamping Table

The lower clamping device has to be mounted at the torque meter. It can be selected between a large or a small clamping table, as well as a torque pin chuck. The clamping tables are available with different table pins.











 Upper Clamping Chuck

The upper clamping device has to be mounted at the torque stand. It can be selected between a large or a small clamping chuck, as well as a torque pin chuck or an adapter with M10 male thread. The small clamping chuck is available with different table pins.









 Software

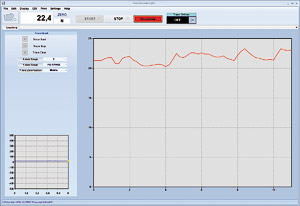

The software “Force Recorder” is required for data acquisition by USB output. 3 versions are available, in which “Force Recorder Professional” is necessary for torque-angle measurements.

LOWER CLAMPING TABLE

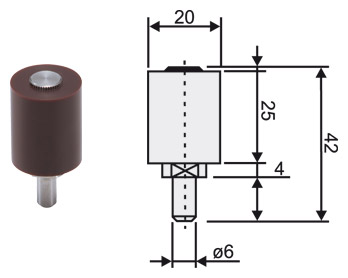

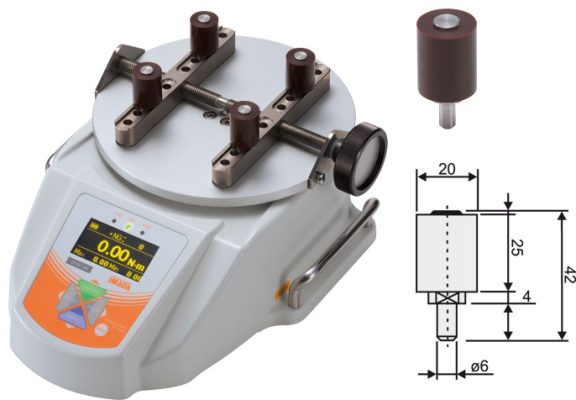

DT-TB – Table with 25 mm Urethane Pins

not for DTXS-0.5N and DTXA-0.5N
For samples with Ø from 20 up to 160 mm.
Includes table pins (TB-P) with urethane surface, length 25 mm.
Recommended for PET bottles, cans etc.
Order number: DT-TB

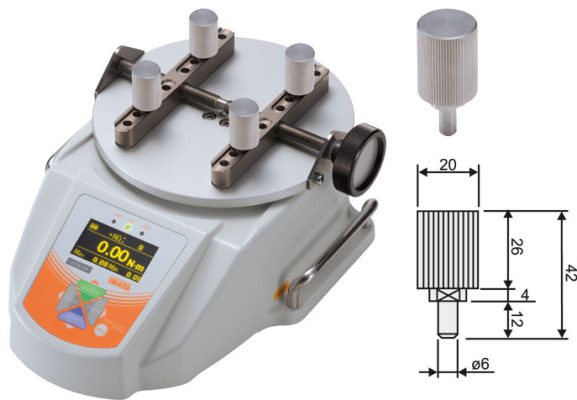

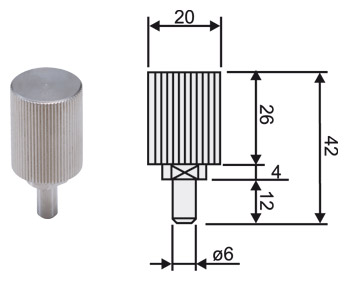

DT-TB-01 – Table with 26 mm V2A Pins

not for DTXS-0.5N and DTXA-0.5N
For samples with Ø from 20 up to 160 mm.
Includes table pins (TB-01P) from stainless steel V2A, corrugated surface, length 26 mm.
Recommended for aluminium cans, hard plastic containers etc.
Order number: DT-TB-01

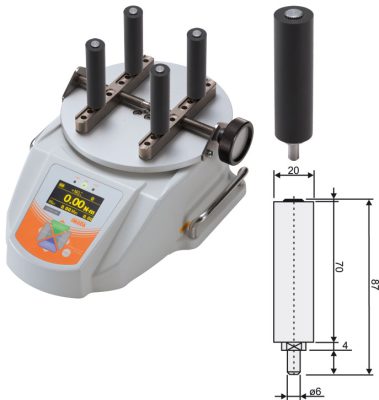

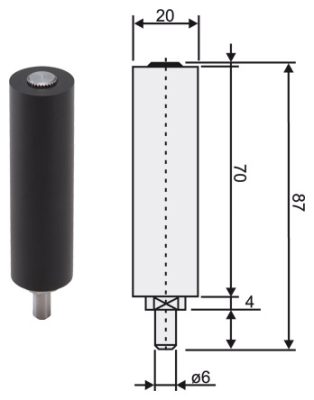

DT-TB-02 – Table with 70 mm Urethane Pins

not for DTXS-0.5N and DTXA-0.5N
For samples with Ø from 20 up to 160 mm.
Includes table pins (TB-02P) with urethane surface, length 70 mm.
Recommended for conductor plates, lens of cameras, large bottles, etc.
Order number: DT-TB-02

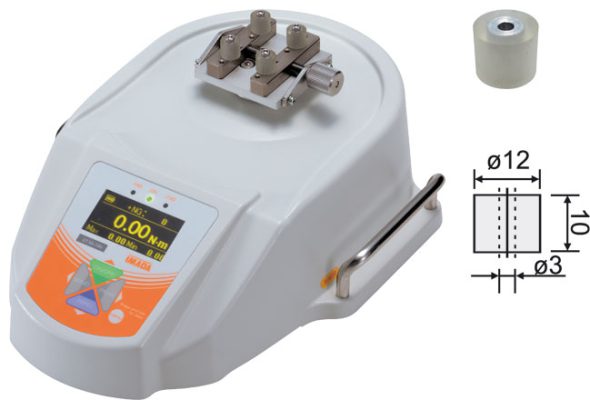

DT-ST – Small Table with 10 mm Urethane Pins for max. 5 Nm nominal load

Only for DTXS-2N, DTXS-5N, DTXA-2N and DTXA-5N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Recommended for locks, containers for eye drops, etc.
Order number: DT-ST

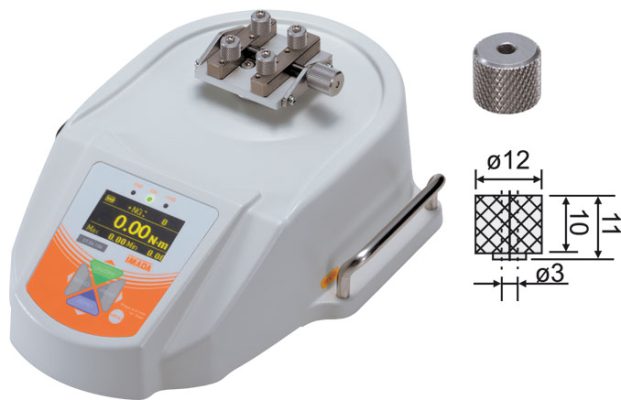

DT-ST-01 – Small Table with 10 mm V2A Pins for max. 5 Nm nominal load

Only for DTXS-2N, DTXS-5N, DTXA-2N and DTXA-5N
For samples with Ø from 7 up to 50 mm.

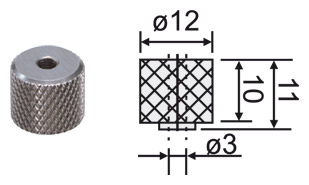

Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for electronic components, plugs, etc.
Order number: DT-ST-01

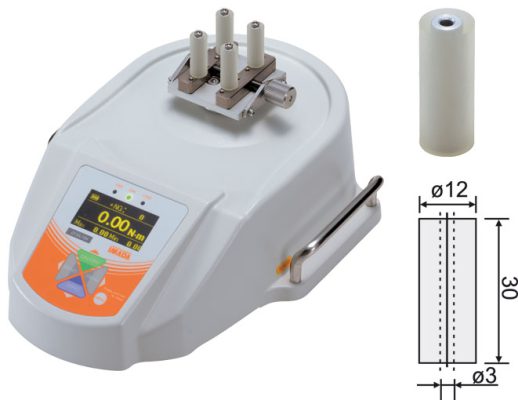

DT-ST-02 – Small Table with 30 mm Urethane Pins for max. 5 Nm nominal load

Only for DTXS-2N, DTXS-5N, DTXA-2N and DTXA-5N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for cosmetics boxes, door knobs, lamps, etc.
Order number: DT-ST-02

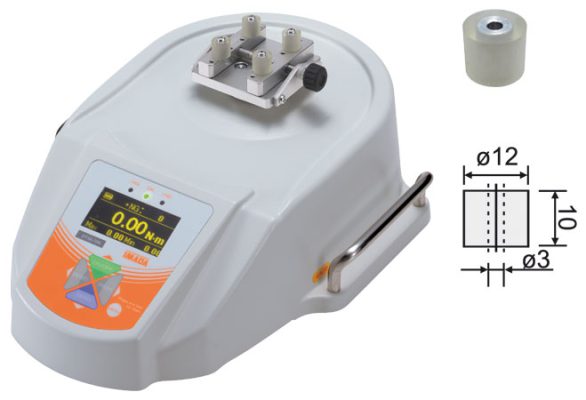

DT-STL – Small Table with 10 mm Urethane Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Recommended for plastic tubes, etc.
Order number: DT-STL

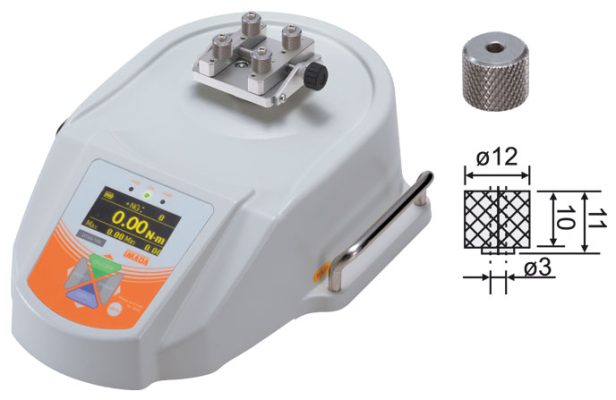

DT-STL-01 – Small Table with 10 mm V2A Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for motors, etc.
Order number: DT-STL-01

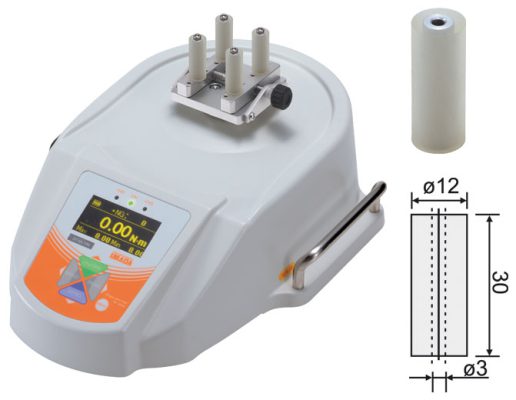

DT-STL-02 – Small Table with 30 mm Urethane Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for cosmetic containers, etc.
Order number: DT-STL-02

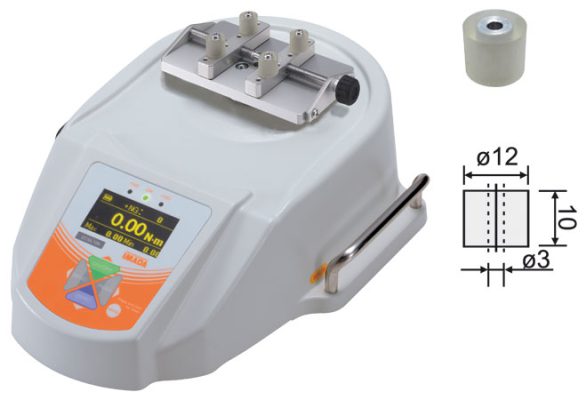

DT-STLW – Small, wide Table with 10 mm Urethane Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 10 up to 100 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Recommended for volume dials, etc.
Order number: DT-STLW

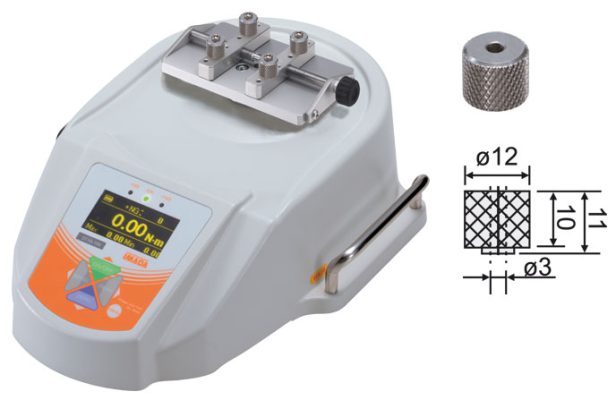

DT-STLW-01 – Small, wide Table with 10 mm V2A Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 10 up to 100 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for motors, etc.
Order number: DT-STLW-01

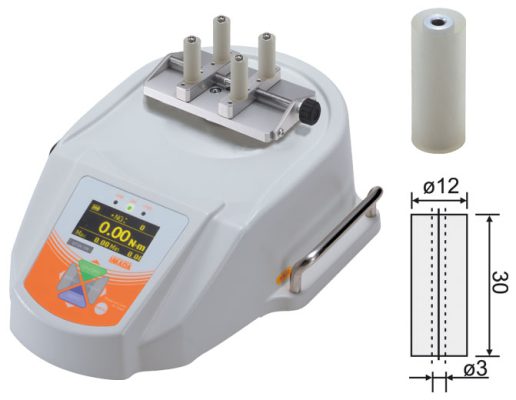

DT-STLW-02 – Small, wide Table with 30 mm Urethane Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for bottle shaped containers, etc.
Order number: DT-STLW-02

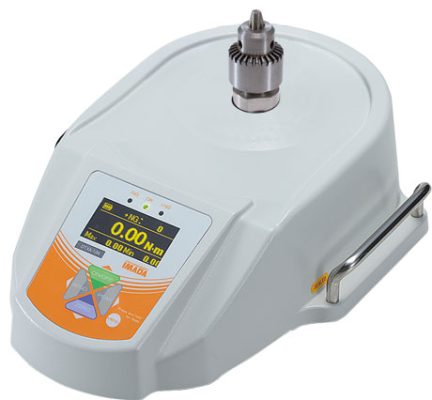

DT-DC-6.5 – Torque Pin Chuck Ø 0.5 up to 6.5 mm

Infinitely adjustable, Ø 0.5 up to 6.5 mm
Order number: DT-DC-6.5





















DT-DC-6.5SUS – Torque Pin Chuck (V2A) Ø 0.5 up to 6.5 mm

Infinitely adjustable, Ø 0.5 up to 6.5 mm, stainless steel (V2A)
Order number: DT-DC-6.5SUS

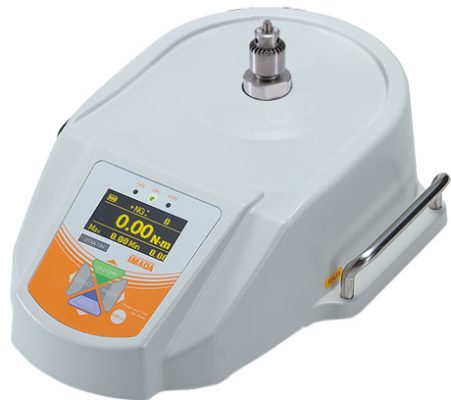

DT-DC-4 – Torque Pin Chuck Ø 0.5 up to 4 mm

Infinitely adjustable, Ø 0.5 up to 4 mm (for torque meters with 2 or 5 Nm nominal load).
Order number: DT-DC-4

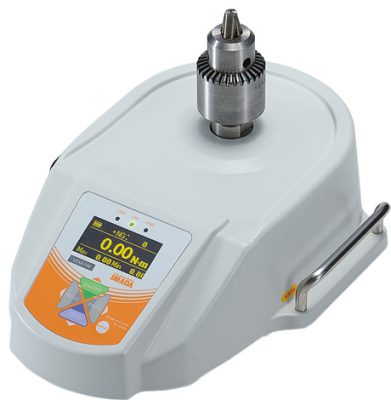

DT-DC-13 – Torque Pin Chuck Ø 1.2 up to 12 mm

Infinitely adjustable, Ø 1.2 up to 13 mm (for torque meters with 5 or 10 Nm nominal load).
Order number: DT-DC-13

UPPER CLAMPING CHUCK

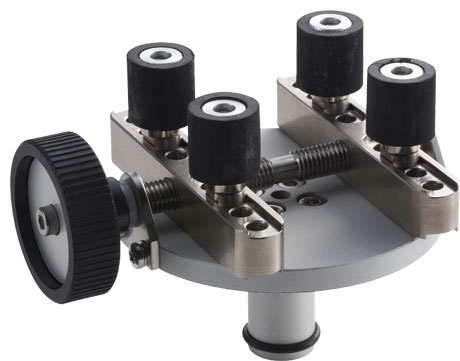

MT-TB – Clamping Chuck with Urethane Pins

For samples with Ø from 20 up to 90 mm.
Includes table pins with urethane surface. It is recommended to use a torque wrench or torque driver to make the chucking force stable (4 mm hexagon bit is required). Recommended for screw caps, conductor plates, lens of cameras etc.
Order number: MT-TB

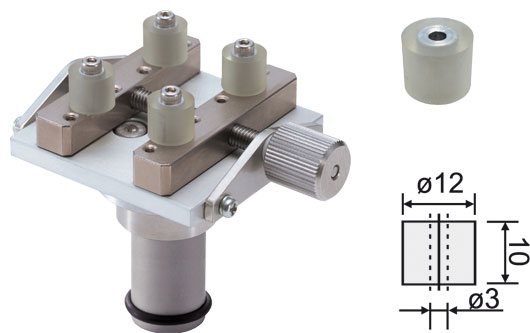

MT-ST – Clamping Chuck with 10 mm Urethane Pins

For samples with Ø from 7 up to 50 mm (for max. 5 Nm nominal load)
Includes table pins (ST-P) with urethane surface, length 10 mm. Recommended for locks, containers for eye drops, etc.
Order number: MT-ST

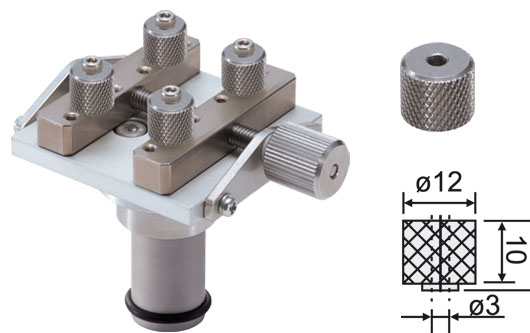

MT-St-01 – Clamping Chuck with 10 mm V2A Pins

For samples with Ø from 20 up to 50 mm (for max. 5 Nm nominal load).
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for electronic components, plugs, etc.
Order number: MT-ST-01

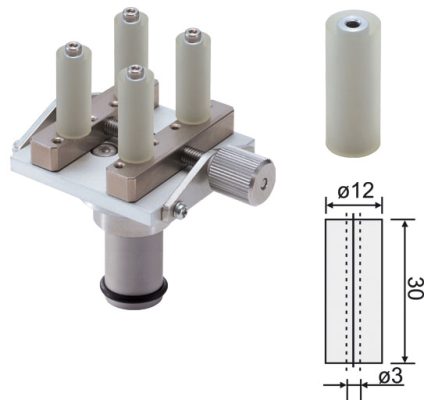

MT-ST-02 – Clamping Chuck with 30 mm Urethane Pins

For samples with Ø from 7 up to 50 mm (for max. 5 Nm nominal load)
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for cosmetics boxes, door knobs, lamps, etc.
Order number: MT-ST-02

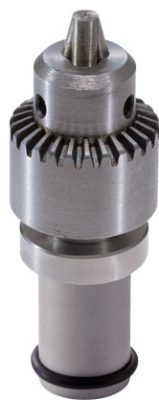

MT-DC-6.5 – Torque Pin Chuck Ø 0.5 up to 6.5 mm

Infinitely adjustable, Ø 0.5 up to 6.5 mm
Order number: MT-DC-6.5





















MT-DC-6.5SUS – Torque Pin Chuck (V2A) Ø 0.5 up to 6.5 mm

infinitely adjustable, Ø 0.5 up to 6.5 mm, V2A
Order number: MT-DC-6.5SUS

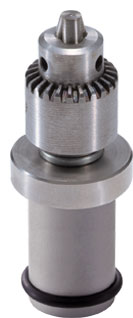

MT-DC-4 – Torque Pin Chuck Ø 0.5 up to 4 mm

infinitely adjustable, Ø 0.5 up to 4 mm
(for max. 5 Nm nominal load)
Order number: MT-DC-4

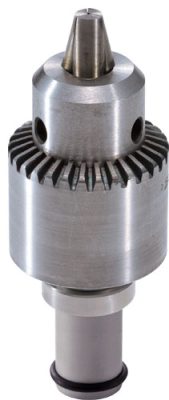

 MT-DC-13 – Torque Pin Chuck Ø 1.2 up to 12 mm

infinitely adjustable, Ø 1.2 up to 12 mm
(for torque meters with 5 or 10 Nm nominal load)
Order number: MT-DC-13

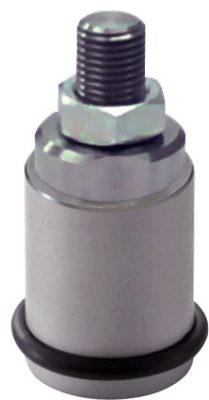

MT-AD-M10 – Adapter

With M10 male thread
Order number: MT-AD-M10

STANDARD ACCESSORIES

Software ZT Logger

USB cable approx. 1.5 m long, CD-ROM with USB-driver and software “ZT-Logger” for data transfer

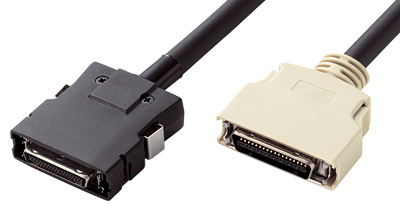

 CB-528 – Connecting Cable

Connecting cable for torque meter with torque stand to stop feed at Fmax or overload (force control).
Length approx. 1.5 m
Order Number: CB-528

Only standard accessory for torque stand without rotary encoder







CB-728 – Connecting Cable RA

Connecting cable for torque meter with torque stand with rotary encoder to enable torque-angle measurement.
Length approx. 1.5 m
Order number: CB-728

Only standard accessory for torque stand with rotary encoder







ADW-6010 – AC Adapter

AC adapter for 100 – 240 V AC
Order number: ADW-6010

OPTIONAL ACCESSORIES

SW-21 – Force Recorder Light

Software for data acquisition by USB output
– Force-time graph
– Force gauge function setting
– Data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-21





 SW-22 – Force Recorder Standard

Additional functions in comparison to Force Recorder Light:
5 graphs at maximum can be displayed in a table
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-22









 SW-23 – Force Recorder Professional

Additional function in comparison to Force Recorder Light
– 5 graphs at maximum can be displayed in a table
– Force-displacement graphing (possible only in combination with a test stand with linear
scale)
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-23







SW-26 – Force Recorder Plus

Software for Data acquisition by USB output:
– 10 graphs at maximum can be displayed in a table
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 8/8.1/10
Order number: SW-26

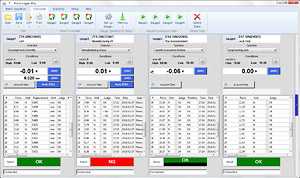

SW-13 – Force Logger Plus

Software for Data acquisition by USB output:
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-13





DP-1VA – Printer

To print stored values using Mitutoyo Digimatic output.
Order number: DP-1VA

For connecting the cable CB-308 is required.

 DP-P – Paper Roll

For Printer DP-1 VA, 1 Set = 5 pieces
Order number: DP-P











 TB-P – Table Pins 25 mm Urethane

1 set (4 pieces), 25 mm long with urethane surface for the table.
Recommended for PET bottles, cans etc.
Order number: TB-P













 TB-01P – Table Pins 26 mm V2A

1 set (4 pieces), 26 mm long from stainless steel for the table.
Recommended for aluminium cans, hard plastic containers etc.
Order number: TB-01P













 TB-02P – Table Pins 70 mm Urethane

1 set (4 pieces), 70 mm long with urethane surface for the table.
Recommended for conductor plates, lens of cameras, large bottles, etc.
Order number: TB-02P





















ST-P – Table Pins 10 mm Urethane

1 set (4 pieces), 10 mm long with urethane surface for the small table.
Recommended for locks, containers for eye drops, etc.
Order number: ST-P







 ST-01P – Table Pins 10 mm V2A

1 set (4 pieces), 10 mm long from stainless steel for the small table.
Recommended for electronic components, plugs, etc.
Order number: ST-01P









ST-02P – Table Pins 30 mm Urethane

1 set (4 pieces), 30 mm long with urethane surface for the small table.
Recommended for cosmetics boxes, door knobs, lamps, etc.
Order number: ST-02P

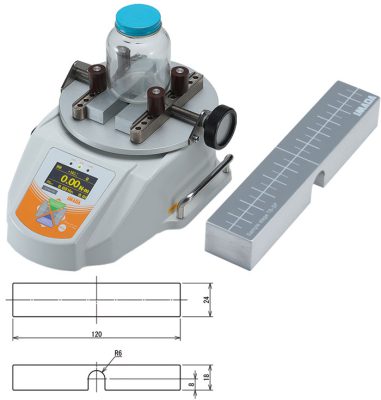

TB-SP – Sample Stage

To get a flat working face on the table, for placing the sample. 1 set = 2 pieces.
Only for DT-TB, DT-TB-01 and DT-TB-02
Order number: TB-SP



















MT-EXT – Extension Shaft

For lengthening the main shaft to clamp samples with lower height.
Length 100 mm
Order number: MT-EXT

 40018I – Accumulator

Nickel metal hydride accumulator, 2-pole connector
3.6 V, 1300 mAh
Order number: 40018I

CABLES OPTIONAL

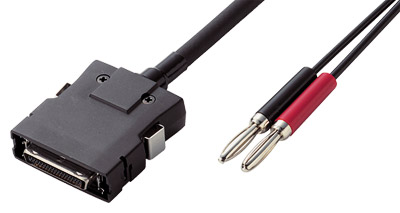

CB-108 – Connecting Cable analog

For analog output, for connection to a line recorder.
Length approx. 3 m
Order number: CB-108

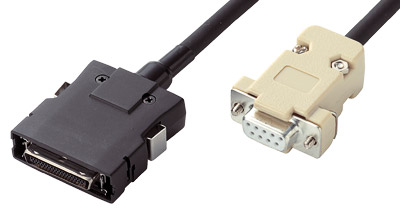

 CB-208 – Connecting Cable RS-232

For RS-232 output with sub D 9 female, for connection to PC.
Length approx. 3 m
Order number: CB-208

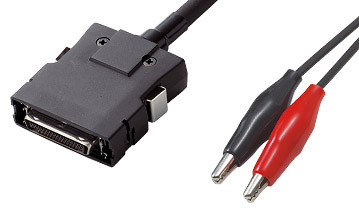

 CB-808 – Connecting Cable Trigger Input

For trigger input (input signal from an external device e. g. electronic switch to stop the measurement)
Order number: CB-808

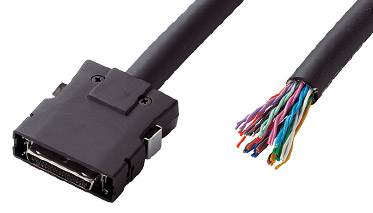

 CB-908 – Connecting Cable Open Ends

With open ends (37-pin) for all available output signals to connect an unique device.
Order number: CB-908

DELIVERY INCLUDES

Torque stand MTS, torque meter, upper and lower clamping device, AC adapter, manufacturer`s inspection certificate, USB cable 1.5 m, CD-ROM with driver, simple software for communication and data logging »ZT-Logger«, connecting cable and operation instructions in English

DOWNLOADS

PRODUCT VIDEO
