TSTM-DC
Advanced Motorized Torque Test Stand

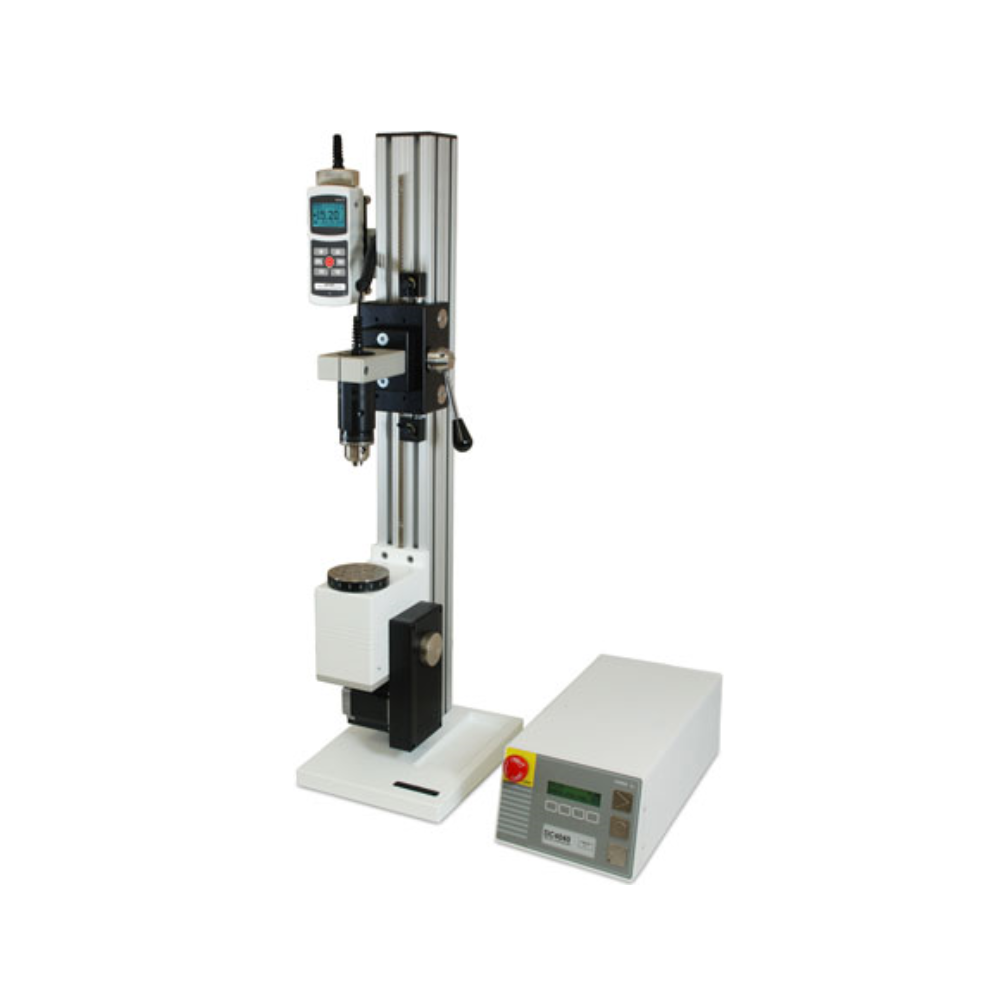

The TSTM-DC Advanced Motorized Torque Test Stand offers all the mechanical specifications of the TSTM motorized test stand, including standard 100 lbFin (11.5 Nm) torque capacity, versatile modular design, quick engagement and disengagement of samples, fixture mounting plate, stepper motor design that prevents speed variation with load, and more. A 200 lbFin (22 Nm) capacity upgrade is available as an option.

The TSTM-DC Advanced Motorized Torque Test Stand offers all the mechanical specifications of the TSTM motorized test stand, including standard 100 lbFin (11.5 Nm) torque capacity, versatile modular design, quick engagement and disengagement of samples, fixture mounting plate, stepper motor design that prevents speed variation with load, and more. A 200 lbFin (22 Nm) capacity upgrade is available as an option.
The TSTM-DC offers expanded capabilities, including full PC control, programmable angle limits, programmable cycling, auto return, password protection, and other features.

The TSTM-DC is a motorized test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.

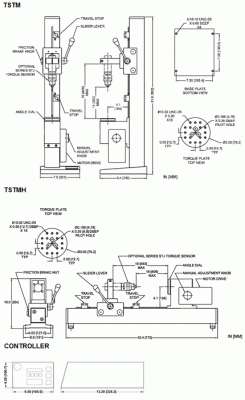

 Dimensions

 TSTM-DC, What’s in the box

The TSTM-DC and TSTMH-DC test stands are shipped as shown at left, and include the following accessories:
(1) DC controller
(1) Controller connection cable
(1) Indicator mounting kit
(1) Encoder cable
(1) Column cap with hardware
(1) Allen wrench set
(4) Thumb screw for mounting indicator
(1) Power cord
(1) Resource CD
(1) Base with hardware (TSTM-DC)
(2) Mounting leg with hardware (TSTMH-DC)
(1) Additional column cap with hardware (TSTMH-DC)

FEATURES

  • Digital Angle Indication; Rotational travel is indicated in degrees or revolutions, with RS-232 output of angle data.
  • Programmable Angle Limits; The TSTM-DC can stop at or cycle between programmable upper and lower angle limits.
  • Programmable in degrees or revolutions.
  • Overload Protection; Protects the torque sensor against overload (requires a Model 7i or 5i force/torque indicator and 09-1162 multi-function cable). The user programs the desired percentage of full scale of the sensor.
  • Auto-return; The torque table rotates to an angle limit or torque set point (requires a Model 7i or 5i force/torque indicator and 09-1162 cable), stops, and reverses direction at full speed to the other angle limit or torque set point.
  • Cycling / Dwell Time; Same as auto-return, but with the ability to program up to 100,000 cycles. Programmable dwell time for upper and lower limits (set independently) can be set up for up to 10,000 seconds. Independent CW and CCW speeds may be programmed.
  • Programmable Button Functions; Programmable CW and CCW button functions – momentary motion, maintained motion, or auto.
  • Independent CW and CCW Speeds; Configurable speeds for CW and CCW directions
  • Selectable speed units of measurement (RPM and °/s)
  • Password protection; Prevents unauthorized changes to controller settings.
  • Computer Control; An RS-232 port is provided to interface with a PC. A command set is provided to allow for full control from a PC.

SPECIFICATIONS

Maximum Load Standard: 100 lbFin [11.5 Nm] Optional: 200 lbFin [22.0 Nm]
Speed Range Standard: 0.01 – 15 RPM [0.05 – 90°/s] Optional: 0.04 – 60 RPM [0.2 – 360°/s] *
Speed Accuracy +/-0.2% of setting, +/-0% variation with load
Rotational travel accuracy +/-0.7° / 0.02 rev.
Rotational travel repeatability 0.1° / 0.01 rev.
Rotational travel resolution 0.1° / 0.01 rev.
Throat 4.10″ [104 mm]
Manual adjustment 12° / adjustment knob rev
Maximum slider travel 15.5″ [394 mm]
Slider travel rate 1.047″ [26.6 mm] / lever rev
Universal power supply 80-250 VAC
Operating Temperature Range 40 – 100°F, max. 96% humidity, non-condensating
Certifications CE
