CTM
Tension Meter

2 Tension ranges available
up to 10 kN and 45 kN
For ropes up to Ø 25,4 mm (1 inch)

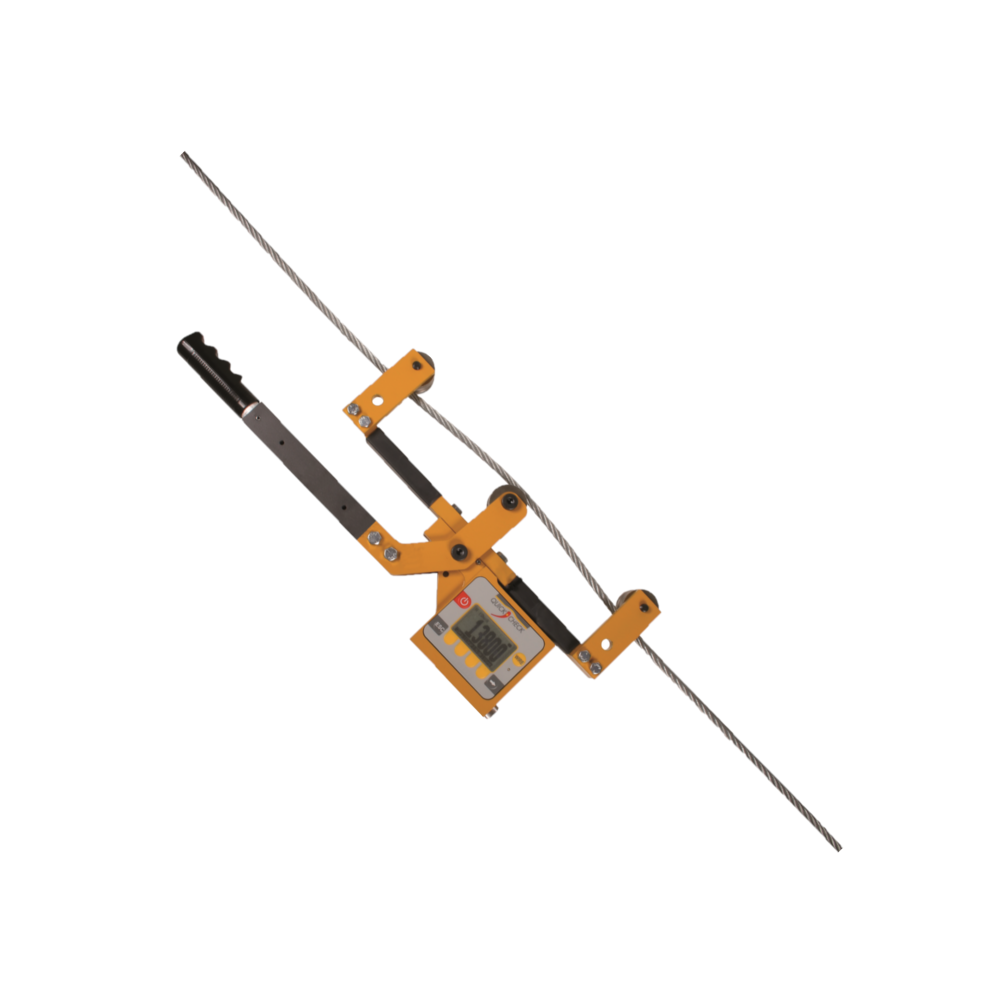

Electronic wire rope tension meter to determine the tension of pretensioned, non-moving ropes, wires, overhead lines, guy wires, cables, zip lines, guardrail cables etc. up to max. Ø 25.4 mm (1 inch).

Battery operated hand-held tension meter tension meter for quick measurements with a large easy to read LCD display

Special Features

  • Rigid, portable tension meter CTM for rope diameters from 4.75 up to 25.4 mm (3/16 up to 1 inch), designed for outdoor use
  • The reading is shown directly in the display; their is no need for comparison tables
  • Large, easy to read, backlighted LCD display; digit hight 2.54 cm
  • User selectable units kN, lbf, kgf
  • Delivery includes calibration for one material. Calibrations for total 20 different materials can be made and saved.
  • The instrument is supplied with one set of sheaves (rollers). Three sheave sizes are available. For most applications one sheave set for the entire assortment of wire they tension will be sufficient. The operator must use the appropriate sheave set for the wire size and calibration stored. Changing sheaves sets can be done quickly.
  • A extended long handle engages meter quickly with minimal effort
  • The readings can be stored and later transferred using the RS-232 interface to PC

Standard Features

  • Easy to operate – force sensor and display are integrated in the same housing
  • Battery operation (AA)
  • CE approved (tested for electromagnetic compatibility)
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

 Available Models

Model Measuring Range
in kN		 Measuring Range
in lbf		 Measuring Range
in kgf
CTM-2000 10 kN 2000 lbf 1000 kgf
CTM-10000 45 kN 10000 lbf 4500 kgf

Delivery includes one roller set (as requested). Additional roller sets are optional available.

SPECIFICATIONS

Accuracy: ± 3 % full scale
Measuring unit: N, lbf, kgf switchable
Material diameter: 4.75 – 25.4 mm (3/16 – 1 inch)
Loading Error: Rope elongation of only 2 mm
Display information: Unit, wire, shaver and battery status
Display: LCD 2.54 cm high, full text prompts
Number of calibrations: Up to 20 calibrations can be saved
Resolution: CTM-2000: low (50 N/10 lbf/5 kgf), middle (20 N/5 lbf/2 kgf), high (10 N/2 lbf/1 N)
CTM-10000: low (200 N/50 lbf/20 kgf), middle (100 N/20 lbf/10 kgf), high (50 N/10 lbf/5 kgf)
Output Signal: RS-232
Power supply: 2 batteries, size AA (approx. 120 h of use)
Temperature range: -20 up to +70 °C
Dimensions: 61 x 24 x 8 cm
Weight, net (gross): Approx. 5 kg (11 kg)

Specifications subject to change without notice!

GUIDE ROLLER

Model Rope Diameter mm Rope Diameter inch
CTM-SH-L 4.75 – 6.35 3/16 – 1/4
CTM-SH-P 4.75 – 12.7 3/16 – 1/2
CTM-SH-S 6.35 – 19.05 1/4 – 3/4
CTM-SH-T 12.7 – 25.4 1/2 – 1

Delivery includes one set of shavers (roller set) as requested. Additional roller sets are optional available.

DELIVERY INCLUDES

Tension meter CTM with carrying case including calibration for one material, roller set (as requested), operating instructions in English
