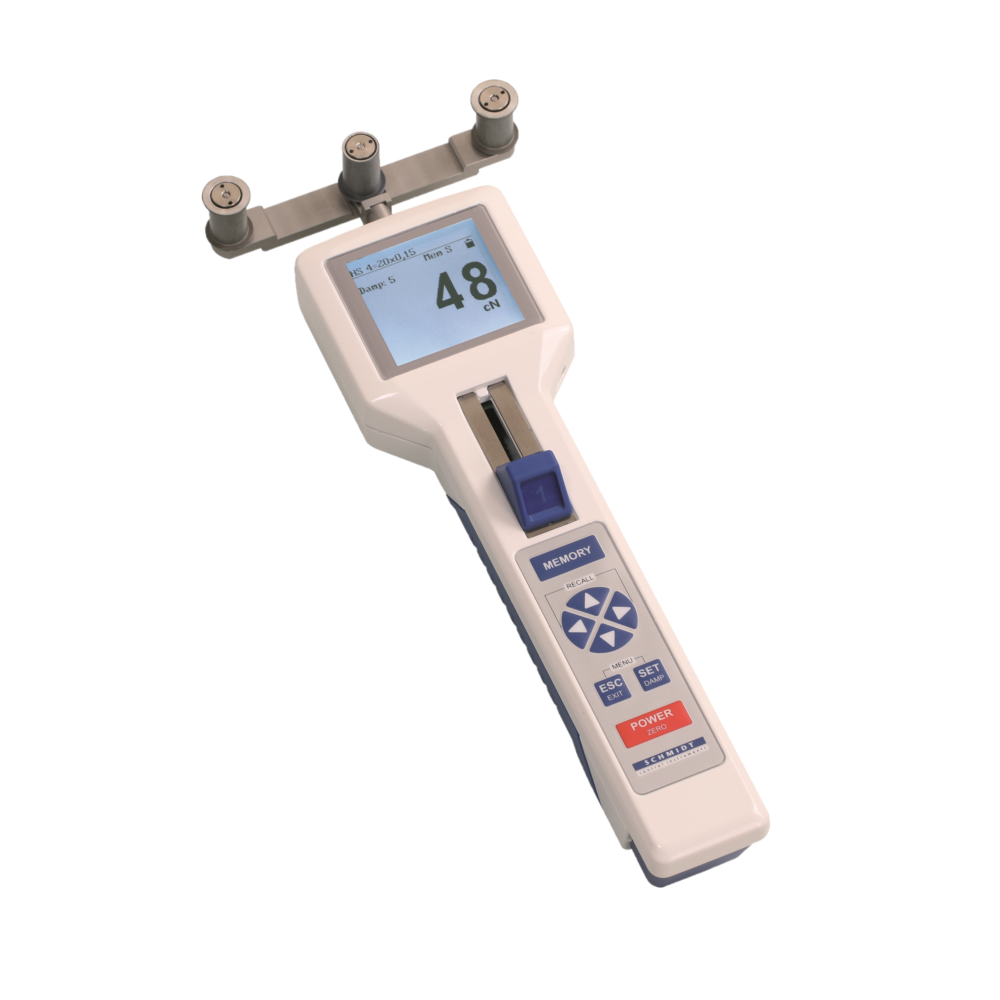

DTXB
Tension Meter

Special Features

Additional functions in comparison to basic instrument DTSB

• Memory for 60.000 readings
• USB interface
• 4 different memory modes:
  Mode S: statistics only
  Mode H: storage of the X-Y-diagram for reviewing after finishing a series of measurement (e.g. short time spooling)
  Mode C: continuous logging over a user set time and different series of measurement (2 Hz)
  Mode F: fast, continuous logging over a user set time and different series of measurement (1000 Hz)
  Mode D: storage of single readings and statistic
• Standard, factory side calibration of tension meter DTXB with only one material
• 10 Material memory locations for customer made calibrations
• Software Tension Inspect 3 for displaying real-time readings on a PC and to store them into a file

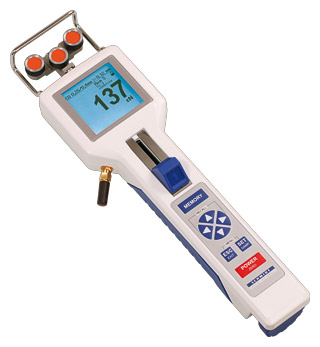

• Wi-Fi module for wireless communication with a PC (optional)

Function of basic instrument DTSB

• Dual-flanged outer guide rollers with various widths, from 7 mm to 41 mm (single-flanged rollers optional, recommendable if the material being measured is wider than the tape roller)
• Tension meter DTXB with large, backlight LCD-display
• 3 different display modes:
  – numeric
  – numeric with bargraph
  – numeric with graph (Time-Tension)
• The display rotates in 90° steps for better reading
• New, unique, force reduced material catching system
• The tension meter has no material thickness compensator
• Automatic „Zero-Setting“ in each measuring position using a special sensor technique
• 4 Material memory locations for customer made calibrations
• Calibration adjustment for fine tuning of the calibration if material differs from the used calibration material
• Programmable MIN- and MAX alarms: indication in the display, if reading is out of limits
• High speed data sampling (internal 8 kHz) and recording of MIN-, MAX-, last reading, PEAKS, average and standard deviation
• Selectable units of measurement: cN, daN, g, kg, N, lb
• Menu set-up in English or German language
• Flexible menu set-up to meet operators demand
• Some functions can be password protected

Standard Features

• Everything in operator’s view:
  – the guide rollers
  – the measured material
  – the readings
• Roller shifting mechanism ensure easy acquisition of the running material
• Ball-bearing mounted, tape rollers
• Rubberized handle provides a secure hold in the operators‘ hand
• Tension meter DTXB with rugged aluminium housing
• LiPo accumulator (approx. 40 hours continuous operation) with AC adapter
• CE certified, interference resistant against static electrifications
• Certificate of Compliance with the order 2.1 according EN 10204 is included
• Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

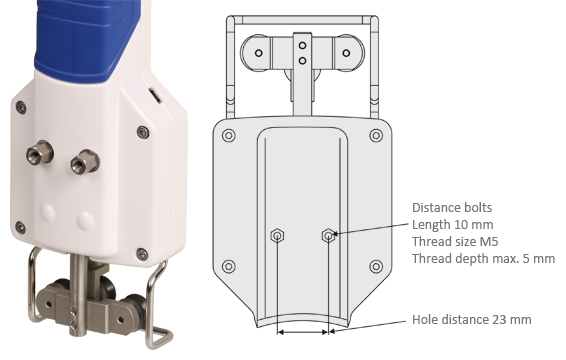

Available Models

Model	Measuring Range*	Resolution	Measuring Head Width**	Roller Width
DTXB-500	5.0 – 500.0 cN	0.1 cN	55 mm	7, 10, 15, 20
DTXB-1000	50 – 1000 cN	1 cN	55 mm	7, 10, 15, 20, 30, 41
DTXB-2000	100 – 2000 cN	1 cN	55 mm	7, 10, 15, 20, 30, 41
DTXB-2500	150 – 2500 cN	1 cN	117 mm	7, 10, 15, 20, 30, 41
DTXB-4000	200 – 4000 cN	1 cN	55 mm	7, 10, 15, 20, 30, 41
DTXB-5000	250 – 5000 cN	1 cN	117 mm	7, 10, 15, 20, 30, 41
DTXB-10K	0.5 – 10.00 daN	0.01 daN	117 mm	7, 10, 15, 20, 30
DTXB-20K	1 – 20.00 daN	0.01 daN	167 mm	7, 10, 15, 20, 30
DTXB-30K	1.5 – 30.00 daN	0.01 daN	217 mm	7, 10, 15
DTXB-50K	2.5 – 50.00 daN	0.01 daN	217 mm	7, 10

* SCHMIDT calibration material textile ribbon or film, depending on tension range and roller width
** Outer distance between outside guide rollers

 When selecting the instrument for your specific application, please keep in mind that:

1. Rollers of different widths are not interchangeable by the user.
2. The roller width should correspond with the width of the material to be measured.
Otherwise incorrect measuring results may occur and the instrument may be damaged.

SCHMIDT has the solution to any tension measuring problem! Please contact us to discuss your application requirements.

To assist you in selecting the right tension meter for your specific application, please furnish:
– Kind and dimensions of the material to be measured
– Expected tension range
– Material sample of about 5 m
