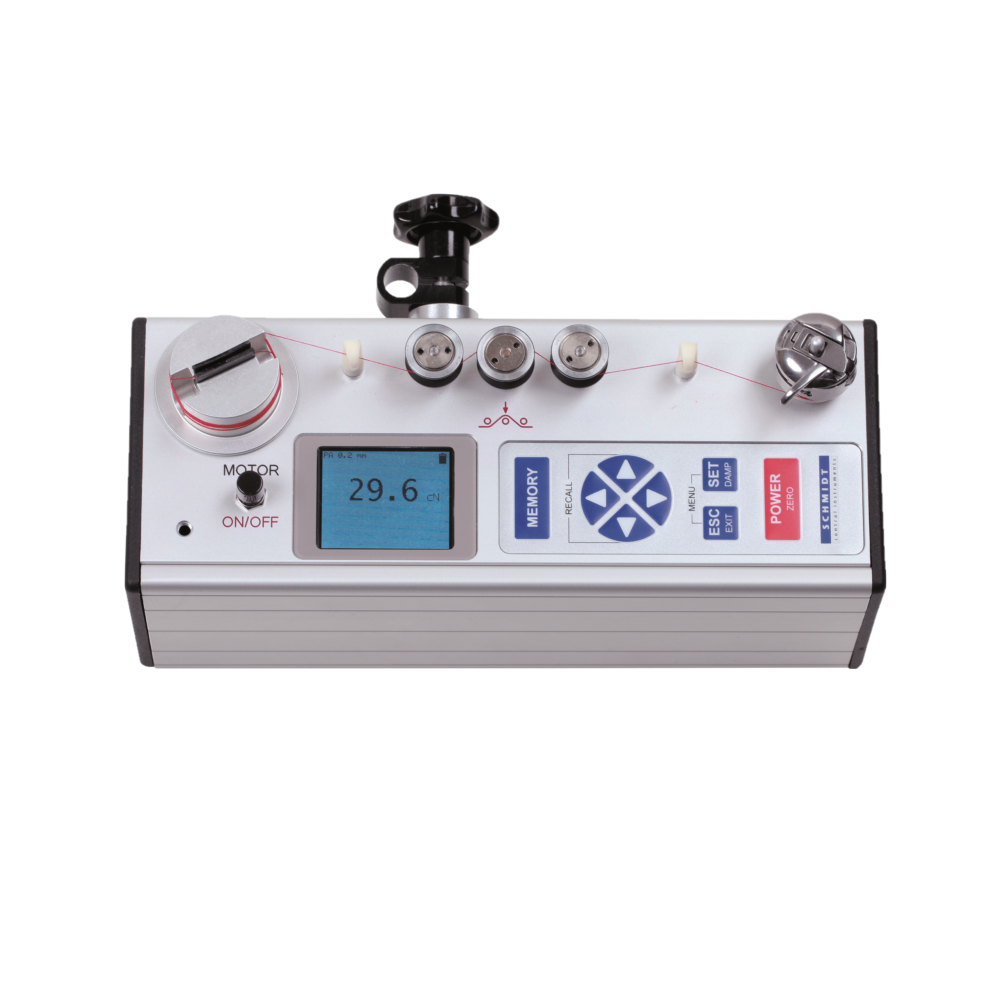

MST
Tension Meter

4 Tension ranges available
from 1 – 200.0 cN up to 1 – 2000 cN
For fibers up to 2000 tex

Electronic yarn tension meter with motorized take-up fixture for measuring and adjusting the tension of sewing machines to get best and highest quality stitched seams. Therefore e. g. yarn breaks can be adjusted under constant conditions (speed of the thread).

Tension meter to control the tension at sewing machines as well as the take-off tension of shuttles

Special Features

  • Electronic yarn tension meter MST with motorized take up with tension range up fixture
  • The electronic tension meter ETX is the basis of this instrument
  • Motorized take-up fixture to have constant speed of the thread 9 m/min
  • Adjustable electronic damping for better reading when tension is constantly fluctuating
  • Vacuum base for positioning the unit on the work plate when tension is measured at the sewing machine
  • Special fixture to determine shuttle tension
  • Tension meter MST has a coloured, backlight TFT display with 3 different display modes
    – numeric
    – numeric with live bargraph
    – numeric with graph (time-tension)
  • The display rotates in 90° steps for better reading
  • Tension meter MTS can be connected to a PC using the USB interface to monitor readings constantly on a PC
  • Memory for 60.000 readings
  • 5 different memory modes can be selected by the operator:
    • Mode S: only statistical values per series are displayed
    • Mode H: storage of the X-Y-diagram for reviewing after finishing a series of measurement
    • Mode C: continuous logging over a user set time and max. 999 series of measurement (2 Hz)
    • Mode F: as C with higher sampling rate (200 Hz)
    • Mode D: storage of single readings and statistic

Model MTS can be connected to a PC with the USB cable. With the software SW-TI3-M »Tension Inspect 3« readings can be displayed, statistically analysed and saved. For more information see “Optional Accessories









  •  Selectable units of measurement: cN, g, N and lb
  • Very high data sampling rate (internal 1 kHz)
  • Storage of MIN, MAX, last reading, average and standard deviation per measuring interval
  • User-set MIN and MAX alarms with indication of TFT display if reading is out of limits
  • Adjustable electronic damping for better reading when tension fluctuates
  • Automatic “Zero-Setting” in each measuring position using a special sensor technique
  • 3 separate calibration material memory locations for custom calibrations
  • Calibration adjustment for fine tuning of the calibration if material differs from the used calibration material
  • Menu set-up in English or German language

Standard Features

  • Battery or mains operation
  • Rugged aluminium housing
  • Easy to operate
  • CE approved (tested for electromagnetic compatibility)
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Left: Seam with correct adjusted thread tension
Right: Too much threat results in not sufficient linkage of the threat the the used material

SPECIFICATIONS

Calibration: According SCHMIDT factory procedure
Accuracy: ±1 % full scale ±1 digit or better (typical ±0.5 % full scale)
Measuring units: cN, g, N or lb, switchable
Overrange: Approx. 10 % full scale, without accuracy guarantee
Overload protection: 200 % full scale
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Signal processing: Digital
Damping: Adjustable electronic damping, averaging
Sampling rate internal: approx. 1 kHz
Sampling rate: Max. 200 Hz (200 readings/sec)
Display: Colour-TFT 128 x 160
Display update rate: Approx. 2 times per second
Memory: Last, average, MAX and MIN
Output signal: USB
Memory: Max. 60000 at 999 measuring periods
Memory Modes: 5 memory modes with statistical evaluation and PEAK capture
Vacuum base: Adjustable height for measuring position above working plate 120 to 220 mm
Motor: Take-up fixture with speed of 9 m/min
Temperature coefficient: Gain: less than ± 0.01% full scale/°C
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: Li-Ion battery (approx. 2 h during motor operation), charging time approx. 5 h
AC Adapter 100 – 240 V AC with 4 adapters (EU, USA, UK, AUS-NZL)
Housing material: Aluminium profile
Dimensions: See dimensions
Weight, device (base): Approx. 840 g (500 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

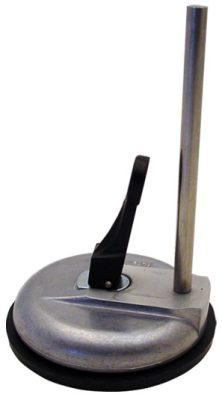

305002 – Vacuum Base

Vacuum base for fast, save placing the measuring device at the working base beside the sewing machine. The tension meter MST can be horizontal positioned in exactly measurement position. Adjustable height for measuring position above working plate 125 to 210 mm. To save the vacuum base on the working plate, the rocker must be activated.



















 K50202 – USB AC Adapter

USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ) for 100 – 240 V AC and USB cable for loading the accumulator (serial no. 306-0001 and higher).

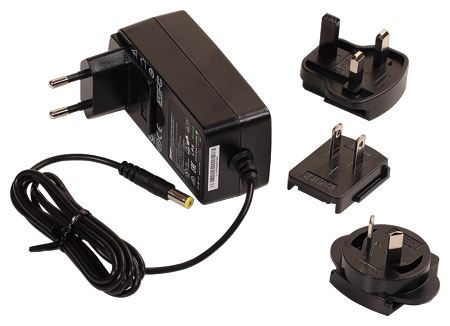

 K50100 – AC Adapter

AC adapter with 4 adapters (EU/USA/UK/AUS-NZ) for 100 – 240 V AC for loading the accumulator (up to serial no. 305-9999).

OPTIONAL ACCESSORIES

SW-TI3-M – Software Tension Inspect 3

Software to display and save readings on a PC (Win 7 and higher; 32 bit and 64 bit)

Features:
– Real-time reading
– The readings are also shown in a X-Y- diagram (time/date-tension)
– For data analysing the buffered diagram can be zoomed and scaled
– Recording of the buffered readings as CSV-file (on user request)
– Download of values to Excel

DELIVERY INCLUDES

Tension meter MST with carrying case, vacuum base, Li-Ion battery, USB AC-Adapter with 4 adapters (EU/USA/UK/AUS-NZL) and operating instruction in German or English (as requested)
