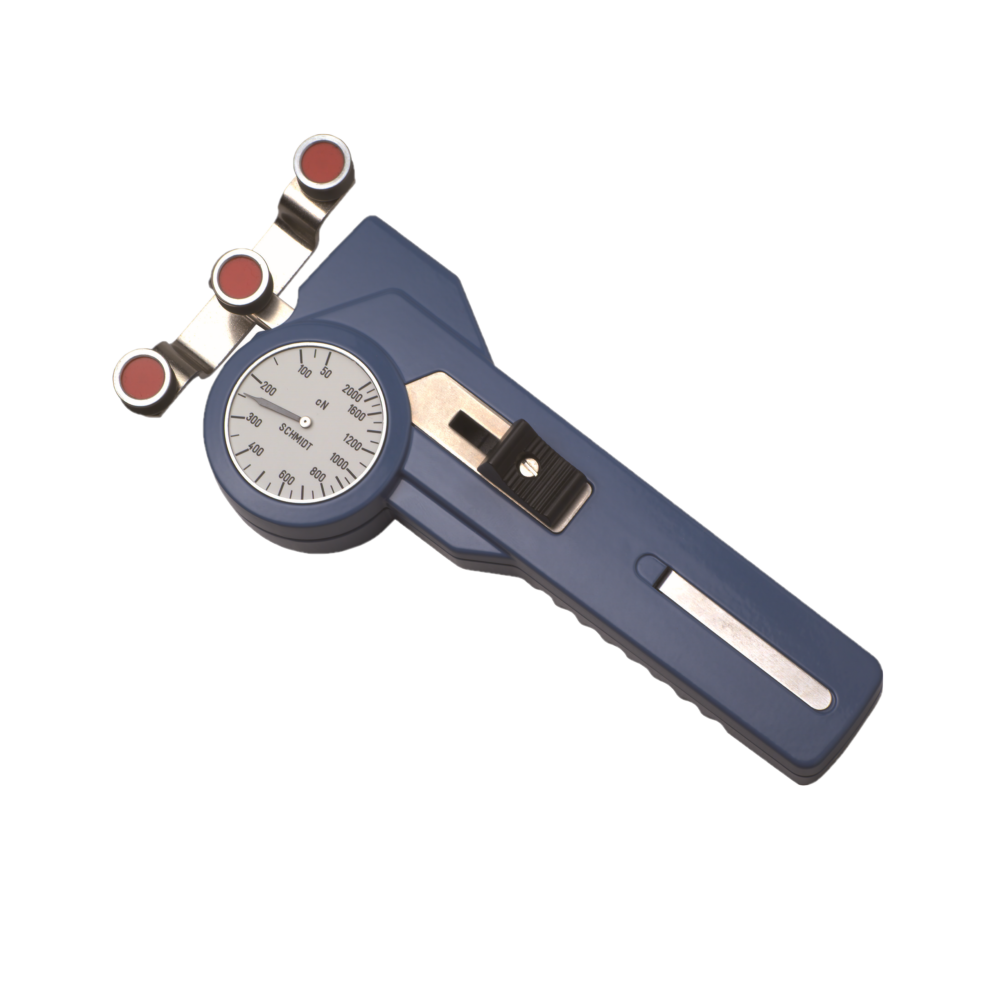

DX2-EDM
Tension Meter

Special Features

• The analog display of tension meter DX2-EDM enables an optimal process adjustment
• Easy to operate
• Roller shifting mechanism ensure easy acquisition of the running material
• Hand-held unit with built-in mounting holes permit fixed installation for continuous tension measurement
• Special finger support located on the rear side reduces the effort to move the outer roller assembly

Standard Features

• Everything in operator’s view:
  – the guide rollers
  – the measured material
  – the readings
• Ball-bearing mounted, V-grooved guide rollers
• Each instrument is individually calibrated for highest accuracy

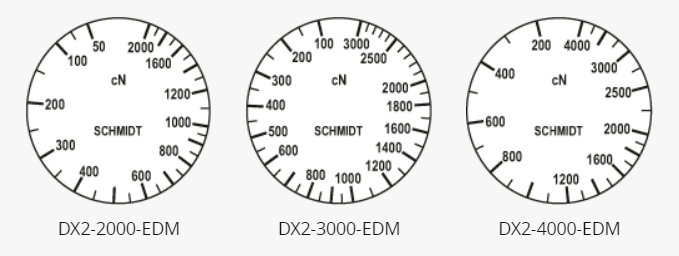

• 41 mm Ø scale
• Tension meter with rugged aluminium housing
• Certificate of Compliance with the order 2.1 according EN 10204 is included
• Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Finger Support

We recommend mounting a finger support for higher tension ranges



 Note:

Tension meter DX2-EDM does not include a material thickness compensator

 Available Models

Model	Measuring Range	Measuring Head Width*	SCHMIDT Calibration Material **
DX2-2000-EDM	50 – 2000 cN	91 mm	PA: 0.30 mm Ø
DX2-3000-EDM	100 – 3000 cN	91 mm	PA: 0.30 mm Ø
DX2-4000-EDM	200 – 4000 cN	116 mm	PA: 0.40 mm Ø

Other tension ranges and measuring head widths available on request.
Other units of measure available, such as g.
* Depending on model, either width of wire guide or outer distance between outside guide rollers
** Suitable for 95 % of applications – PA = Polyamide Monofilament

Calibration to customized material:

If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.
