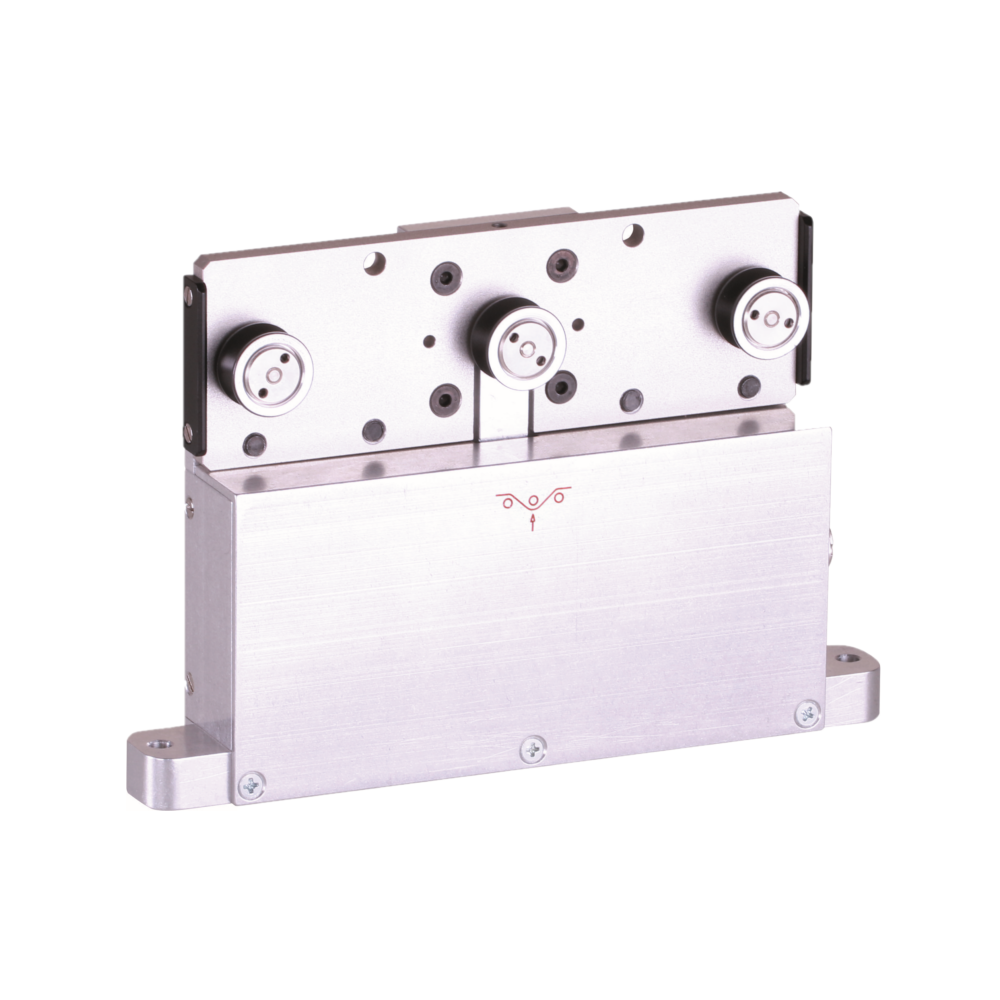

MZ1-422
Tension Sensor

4 Tension ranges available
from 0 – 1000 cN up to 0 – 10 daN
Stationary electronic tension sensor for measuring narrow, parallel running threads, fibers and thin wires with a diameter up to approx. 2 mm

Universal sensors for continuous tension measuring in wire and textile industry

Tension sensor with RS-422 output for multi station system and connection to a with PC

Special Feature

  • Small, compact housing
  • Tension sensor MZ1-422 with integrated microprocessor controlled measuring amplifier and RS-422 interface for multi station system
  • Typical material path – warping the 3 rollers
  • Different guide rollers are available, according to the application
  • Easy installation, even afterwards, on existing machines
  • Universal mounting possibility – easy to install, even afterwards, on existing machines:
    The sensor can be mounted using the two threads at the underside of the housing body. Alternative it can be fixed on two flanges on the side of the unit.
  • Easy calibration to customized material by operator – zero and gain calibration is required
  • Measuring principle – load cell with high quality strain gauge bridge

Standard Features

  • V-grooved guide rollers, ball-bearing mounted
  • Control lamp shows operative mode availability
  • Tension sensor MZ1-422 with aluminium housing
  • CAT 5 cables are used for data transfer
  • Required power supply +15…24 V DC (regulated)
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Special features of the RS-422 interface:

  • Up to 24 sensors with different tension ranges and designs may be connected in one line (data transfer max. 200 readings/sec.)
  • Connection to RS-232 using a converter (RS-422 – RS-232).
  • The RS-422 signal can be used for a single sensor over a distance of 1000 m.
  • Each sensor can individually be addressed and set up
  • Can be connected to PLC controls with digital input
  • Simple connection to BUS-Systems using gateways

 Available Models

Model Measuring Range
 Measuring Head Width*
 SCHMIDT Calibration Material**
MZ1-1000-422 0 – 1000 cN 120 mm PA: 0.30 mm Ø
MZ1-2000-422 0 – 2000 cN 120 mm PA: 0.50 mm Ø
MZ1-5000-422 0 – 5000 cN 120 mm PA: 0.80 mm Ø
MZ1-10K-422 0 – 10 daN 120 mm PA: 1.00 mm Ø

Other tension ranges and measuring head widths available on request.
Other measuring units available, such as g or kg.
* Outer dimensions of front plate
** Suitable for 95 % of applications PA = Polyamide Monofilament

Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

SPECIFICATIONS

Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale and ±1 digit or better
other calibration material:
±3 % full scale and ±1 digit or better
Overload protection: 100 % of tension range
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Natural frequency: Approx. 500 Hz, depending on tension range
Signal processing: Digital 12-bit A/D converter, Internal averaging up to 4 sec.
Communication frequency: 200 readings/s
Temperature coefficient: Less than ±0.05 % full scale/°C
Output signal: RS-422 (57600, 8, N, 1)
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: +15…24 V DC, 50 mA (regulated)
Housing material: Aluminium
Dimensions: See dimensions
Weight net (gross): Approx. 420 g (580 g)

Specifications subject to change without notice!

GUIDE ROLLERS

Order-Code Line Speed vmax. … m/min Roller Material
Standard 2000 Hard-coated aluminium
Code K
 3500 Hard-coated aluminium
Code H
 5000 Plasma-coated aluminium
Code ST 1000 Hardened steel
Code B 1000 Tempered steel (for tire cord)
Code CE2 1000 Aluminium ceramic-coated
Code ASY 1000 Hard-coated aluminium, asymmetrical groove
Code ASYB 1000 Tempered steel (for tire cords), asymmetrical groove
Code U 2000 Hard-coated aluminium (radius R3)

OPTIONAL ACCESSORIES

Software Tension Inspect 3

For displaying and saving readings on a PC (Win 7 and higher; 32 Bit und 64 Bit).
Features:
– Real-time reading
– The readings are also shown in a X-Y- diagram (time/date-tension)
– For data analysing the buffered diagram can be zoomed and scaled
– Recording of the buffered readings as CSV-file (on user request)
– Download of values to Excel







EBG800 – Serial Port Converter

Converter from RS-422 to RS-232 with terminal strip.
Order number: EBG800





















EK0715 – Connecting Cable Cat 5 with open ends

Cat 5 cable with open ends for RS-422/RS-232 converter and power supply to connect the last sensor. Length 3 m.
Order number: EK0715



















EK0711 – Connecting Cable Cat 5

Cat 5 cable for series connection of the sensors, length 3 m.
Order number: EK0711















EK0643 – RS-232 Connecting Cable

Connecting cable for connecting EBG-800 converter to PC, length 2 m.
Order number: EK0643















 K50204 – Mains Adapter

Recharger with 4 adapters (EU/USA/UK/AUS-NZL) for worldwide use,
100 – 240 V AC
Order number: K50204

OUTPUT SIGNAL

Standard

output signal: digital RS-422
Up to 200 readings can be transferred per second (internal sampling rate max. 57600 times/sec).

DELIVERY INCLUDES

Tension sensor MZ1-422 with transport packaging, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
