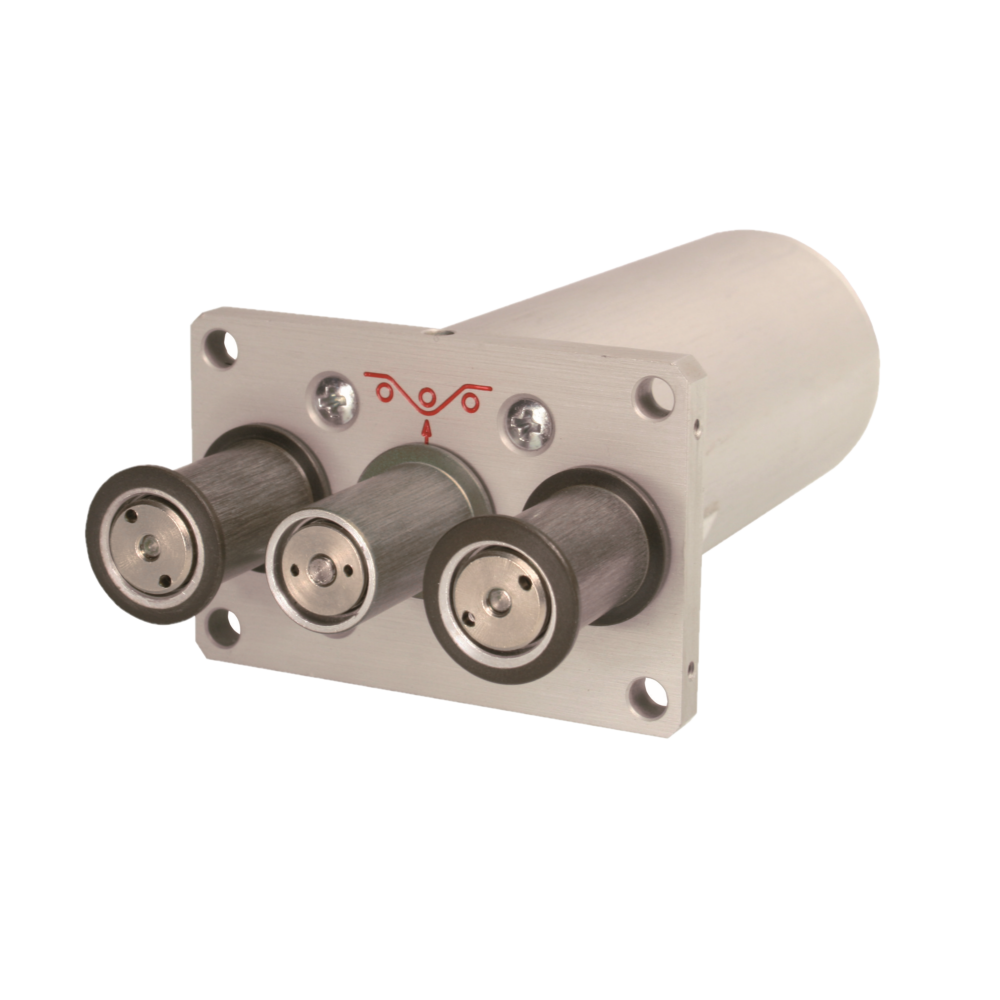

TSB1
Tension Sensor

8 Tension ranges available
from 0 – 100 cN up to 0 – 20 daN
Stationary electronic tension sensor for measuring low tensions of textile ribbons, films, foils, fibre bunches etc.

Cylindrical tape rollers with up to max. 30 mm width, one-sided mounting

Tension sensor for quick and easy mounting

Special Features

  • Tension sensor TSB1 with integrated measuring amplifier and high accuracy of 1 % FS
  • Various roller widths from 7 mm up to 30 mm, according to the application are available. The roller width must correspond with the width of the material to be measured
  • Various output signal are available:
    – analog: 0 – 1 V DC (standard), 0 – 10 V DC (optional)
    – current: 4 – 20 mA (optional)
    – analog DMS: mV/V (optional)
  • Easy installation, even afterwards, on existing machines
  • Easy calibration to customized material by operator – zero and gain calibration is required
  • Measuring principle – load cell with high quality strain gauge bridge
  • Tension sensor with mechanical overload protection

Note: a wide range of custom designed models as well modifications are available on request. Please contact us with your demand!

Standard Features

  • Tape rollers, ball-bearing mounted
  • Tension sensor TSB1 with rugged aluminium housing
  • Required power supply +15…24 V DC (regulated)
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

 Available Models

Model Tension Range*
 Measuring Head Width**
 Roller Width
TSB1-100 0 – 100 cN 60 mm 7, 10, 15, 20 mm
TSB1-200 0 – 200 cN 60 mm 7, 10, 15, 20 mm
TSB1-500 0 – 500 cN 60 mm 7, 10, 15, 20 mm
TSB1-1000 0 – 1000 cN 60 mm 7, 10, 15, 20, 30 mm
TSB1-2000 0 – 2000 cN 120 mm 7, 10, 15, 20, 30 mm
TSB1-5000 0 – 5000 cN 120 mm 7, 10, 15, 20, 30 mm
TSB1-10K 0 – 10 daN 120 mm 7, 10, 15, 20 mm
TSB1-20K 0 – 20 daN 220 mm 7, 10, 15, 20 mm

Other tension ranges available on request.
Other measuring units available, such as g or kg
* SCHMIDT calibration material depending on tension range and roller width
** Outside dimensions of front plate

Important for your order:
Please specify model and roller width. Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order.

Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

SPECIFICATIONS

Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale and ±1 digit
Other calibration material:
±3 % full scale or better
Overload protection: 100 % of tension range
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Natural frequency: Approx. 500 Hz, depending on tension range
Signal processing: Analog
Temperature drift: Less than ±0.05 % full scale/ºC
Output signal: Standard: 0 – 1 V DC (analog) impedance: ≥ 5 kΩ
Option: 0 – 10 V DC (analog), 4 – 20 mA (current) or mV/V (DMS)
Damping (fg): Standard: 30 Hz (other values on request)
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: +15…24 V DC, 21 mA regulated
Code A3: max. 50 mA regulated
Code A10: max. +5 V DC, max. 20 mA regulated
Housing material: Aluminium
Dimensions: See dimensions
Weight, net (gross): Up to model TSB1-1000 approx. 250 g (400 g)
Model TSB1-2000 up to TSB1-10K approx. 280 g (430 g)
Model TSB1-20K approx. approx. 330 g (500 g)

Specifications subject to change without notice!

GUIDE ROLLERS

Roller Width Line Speed vmax. … m/min Roller Material*
7 mm
 1000 Hard-coated aluminium
10 mm
 1000 Hard-coated aluminium
15 mm
 1000 Hard-coated aluminium
20 mm
 1000 Hard-coated aluminium
30 mm
 1000 Hard-coated aluminium

*Other roller materials (nickel-plated steel or plastic), as well as special coatings (Code CF – for carbon fibre, NAV optimized, Code KE – ceramic,
Code AH – anti adhesive) are available on request.

OPTIONAL ACCESSORIES

E10061 – Diode Plug with Bayonet Cap

Diode Plug suitable for sensors of TS series,
cable outlet 3.5 – 6 mm
Order number: E10061







 EK0603, EK0605 and EK0610 – Connecting Cable with 2 diode plugs

Connecting cable with 2 diode plugs, for analog output and voltage signal.
For connecting the TS sensor to the display unit SCD-1.
Order number: EK0603, Length 3 m
Order number: EK0605, Length 5 m
Order number: EK0610, Length 10 m

















 EK0612, EK0614 and EK0615 – Connecting Cable with 1 diode plug and open ends

Connecting cable with 1 diode plug and open ends, for analog output and current signal.
For connecting sensors of TS series to the display unit SC-PM.
Order number: EK0612, Length 3 m
Order number: EK0614, Length 5 m
Order number: EK0615, Length 10 m

OUTPUT SIGNAL

Standard

Output signal: 0 – 1 V DC











 Code A2

Output signal: 0 – 10 V DC











 Code A3

Output signal: 4 – 20 mA











 Code A10

Output signal: mV/V
For sensors without amplifier
incl. firmly connected cable with open ends, 3 m long

DELIVERY INCLUDES

Tension sensor TSB1 with transport packaging, operating instruction in german or english (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
