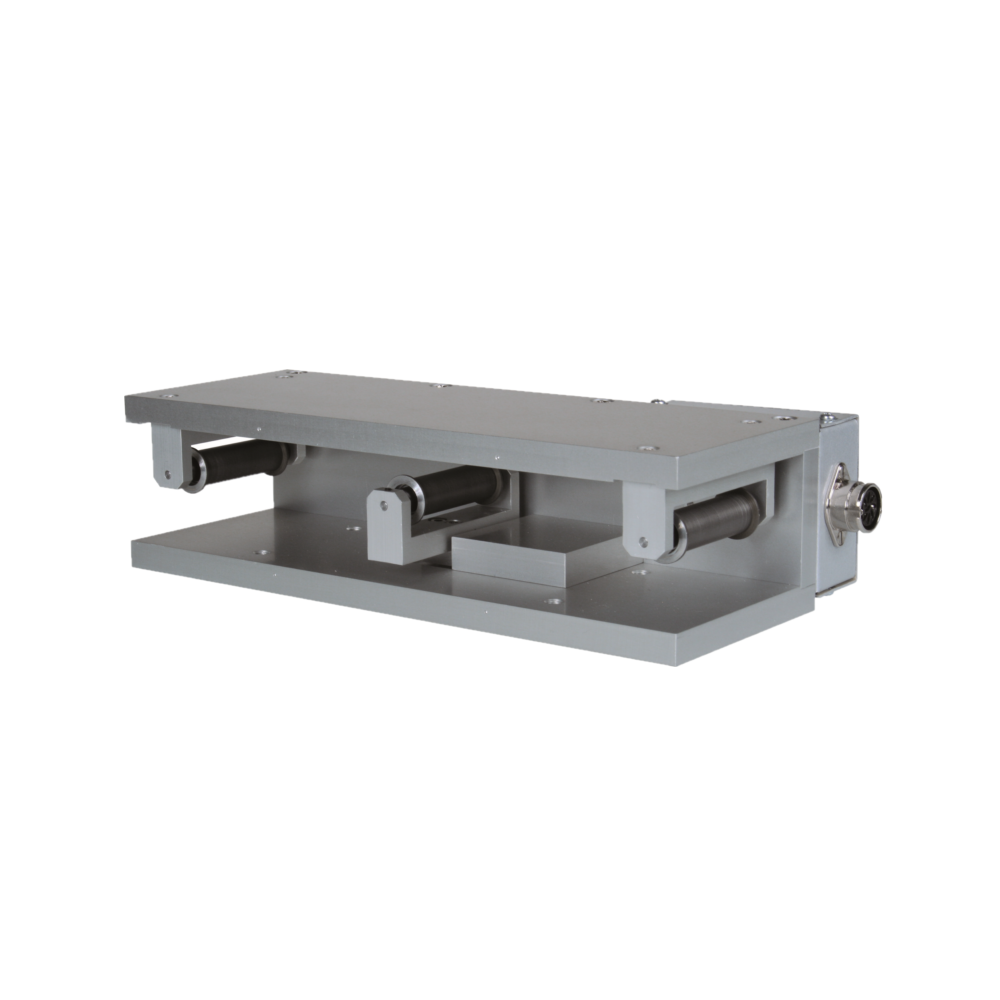

TSB2
Tension Sensor

8 Tension ranges available
from 0 – 500 cN up to 0 – 100 daN
Stationary electronic tension sensor for continuous measuring low and high tensions of textile ribbons, films, foils, fibre bunches etc.

Tape rollers, supported on both sides, with width from 15 mm up to 100 mm

Tension sensor for quick and easy mounting

Special Features

  • Tension sensor TSB2 with integrated measuring amplifier and high accuracy of 1 % FS
  • Various roller widths from 15 mm up to 100 mm, according to the application are available. The roller width should correspond with the width of the material to be measured
  • Various output signals are available:
    – analog: 0 – 1 V DC (standard), 0 – 10 V DC (optional)
    – current: 4 – 20 mA (optional)
    – analog DMS: mV/V (optional)
  • Easy installation, even afterwards, on existing machines
  • Easy calibration to customized material by operator – zero and gain calibration is required
  • Measuring principle – load cell with high quality strain gauge bridge

Standard Features

  • Tension sensor with zylindrical tape roller, ball-bearing mounted
  • Tension sensor TSB2 with rugged aluminum housing
  • Required power supply +15…24 V DC (regulated)
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

 Available Models

Model Tension Range*
 Roller Width
TSB2-500 0 – 500 cN 20, 30, 36, 41, 50, 100 mm
TSB2-1000 0 – 1000 cN 20, 30, 36, 41, 50, 100 mm
TSB2-2000 0 – 2000 cN 20, 30, 36, 41, 50, 100 mm
TSB2-5000 0 – 5000 cN 20, 30, 36, 41, 50, 100 mm
TSB2-10K 0 – 10 daN 15, 20, 30, 36, 41, 50, 100 mm
TSB2-20K 0 – 20 daN 15, 20, 30, 36, 41, 50, 100 mm
TSB2-50K 0 – 50 daN 15, 20, 30, 36, 41, 50, 100 mm
TSB2-100K 0 – 100 daN 15, 20, 30, 36, 41, 50, 100 mm

Andere Messbereiche und Messkopfbreiten auf Anfrage.
Other measuring units available, such as g or kg.
* SCHMIDT calibration material depending on tension range and roller width

Important for your order:
Please specify model and roller width! All 3 rollers are small dual-flanged.

Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in dimension, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

SPECIFICATIONS

Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale and ±1 digit
Other calibration material:
±3 % full scale or better
Overload protection: 100 % of tension range
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Natural frequency: Approx. 500 Hz, depending on tension range
Signal processing: Analog
Temperatur drift: Less than ±0.05 % full scale/ºC
Output signal: Standard: 0 – 1 V DC (analog) impedance: ≥ 5 kΩ
Option: 0 – 10 V DC (analog), 4-20 mA (current) or mV/V (DMS)
Damping (fg): Standard: 30 Hz (other values on request)
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: +15…24 V DC, 21 mA regulated
Code A3: max. 50 mA regulated
Code A10: max. +5 V DC, max. 20 mA regulated
Housing material: Aluminium
Weight, net (gross): E. g. model TSB2-2000-50 approx. 1000g (1400 g)

Specifications subject to change without notice!

TAPE ROLLERS

Roller Width
 Line Speed vmax. … m/min Roller Material
15 mm
 1000 Aluminium hardcoated
20 mm
 1000 Aluminium hardcoated
30 mm
 1000 Aluminium hardcoated
36 mm
 1000 Aluminium hardcoated
41 mm
 1000 Aluminium hardcoated
50 mm
 1000 Aluminium hardcoated
100 mm
 1000 Aluminium hardcoated

OPTIONAL ACCESSORIES

E10061 – Diode Plug with Bayonet Cap

Diode Plug suitable for sensors of TS series,
cable outlet 3.5 – 6 mm
Order number: E10061







 EK0603, EK0605 and EK0610 – Connecting Cable with 2 diode plugs

Connecting cable with 2 diode plugs, for analog output and voltage signal.
For connecting the TS sensor to the display unit SCD-1.
Order number: EK0603, Length 3 m
Order number: EK0605, Length 5 m
Order number: EK0610, Length 10 m

















 EK0612, EK0614 and EK0615 – Connecting Cable with 1 diode plug and open ends

Connecting cable with 1 diode plug and open ends, for analog output and current signal.
For connecting sensors of TS series to the display unit SC-PM.
Order number: EK0612, Length 3 m
Order number: EK0614, Length 5 m
Order number: EK0615, Length 10 m

OUTPUT SIGNAL

Standard

Output signal: 0 – 1 V DC











 Code A2

Output signal: 0 – 10 V DC











 Code A3

Output signal: 4 – 20 mA











 Code A10

Output signal: mV/V
For sensors without amplifier
incl. firmly connected cable with open ends, 3 m long

DELIVERY INCLUDES

Tension sensor TSB2 with packaging, operating instruction in german or english (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
