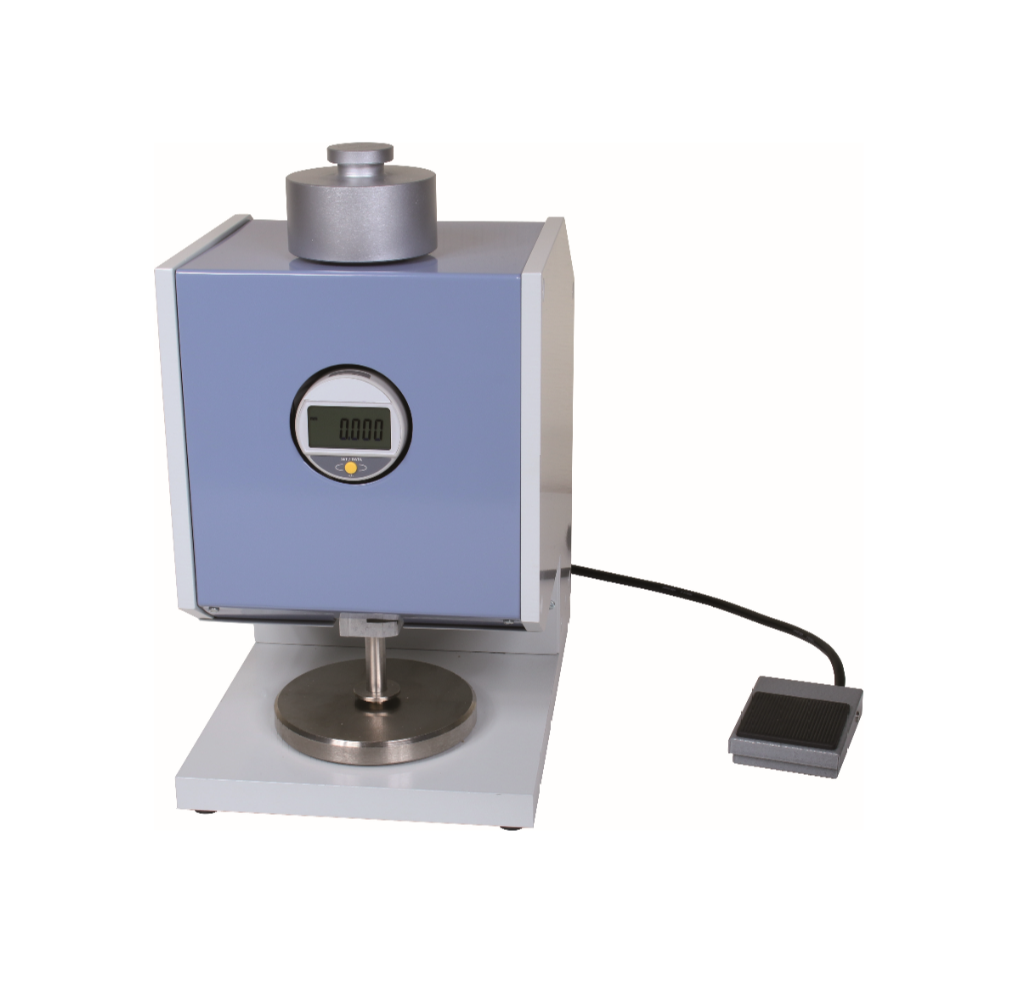

D-2005
Thickness Gauge

Measuring range up to 10, 25 or 50 mm
Resolution 0.01 / 0.001 mm
Thickness Gauge to determine the material thickness of all kinds of fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc.

Thickness according to international standards DIN, EN ISO or ASTM

Special Features

  • Thickness gauge D-2005 is working according international DIN, EN, ISO and ASTM standards. They measure with highest accuracy.
  • The instruments are mainly designed for laboratory use
  • Different measuring feelers and additional weights are available depending on the application area and test standard; on request different standards can be combined in one instrument
  • The standard measuring range is 0 – 10 mm; 25 and 50 mm are optional available
  • The resolution is 0.01 mm; as option 0.001 is available
  • Thickness gauge D-2005 with USB interface (Sub-D9 socket) and Sub-D9/USB adapter cable for data transfer and power supply for the dial gauge
  • The motorized feeler will be moved down by using a pedal switch (V= 2.5 mm/sec)
  • Robust, bend-resistant device construction, encapsulated against external influences, e.g. shock; this ensures maximum measurement and repeatability

Standard Features

  • Thickness gauge D-2000 with LCD display – switchable measuring units mm / inch
  • The dial gauge is powered using the Sub-D9/USB adapter cable via PC or with plugged on USB AC adapter to a power supply.
    Power supply of the motor by AC adapter.
  • The instrument is easy to use
  • Calibration report for free, DAkkS inspection certificate optional

 Available Models

Model Standard Application Feeler
Ø mm		 Feeler
cm²		 Test Pressure
D-2005-T DIN EN ISO 5084 Textiles 50.42 20 0.1 kPa and 1 kPa
D-2005-V DIN EN ISO 9073-2 Standard Fleece 56.42 25 0.1 and 0.5 kPa
D-2005-G1 DIN EN ISO 9863-1 Geomaterials 56.42 25 2 kPa
D-2005-G2 DIN EN ISO 9863-1 Geomaterials 56.42 25 2 kPa, 20 kPa and 200 kPa
D-2005-NW EN ISO 9073-2 Non-woven textiles 56.42 25 0.5 kPa and 1 kPa
D-2005-P* DIN EN ISO 534 Paper 16 2 50 kPa and 100 kPa
D-2005-HY DIN EN ISO 54540 Hygienic paper 56.42 25 2 kPa
D-2005-L DIN EN ISO 2589 Leather 10 0.785 49,1 kPa
D-2005-Gi Rubber 35.68 10 5 kPa
Feeler
Calotte
D-2005-F* DIN 53370 Foil R 30 mm 0.5 N

*Resolution 0.001 mm is standard

We also supply custom designed models, which cover different standards within one instrument. Please inform us, which standards you use and what measuring force and feeler size is required. We will send you our suggestion.
The device is also available as mechanical thickness gauge D-1000 and D-2000 or motorized thickness gauge D-2006, D-2010 and D-2020 with automatic material feed.

Here you can find a comparison table.

SPECIFICATIONS

Measuring range: 0 – 10 mm, Option 0 – 25 mm or 0 – 50 mm
Resolution: 0.01 mm, Option 0.001 mm
Accuracy: ±0.02 mm, Option ±0.002 mm
Measuring depth: 110 mm (centre of the stamp)
Measuring system: Capacitive -> Sylvac
Display: LCD 6 digit, 8.5 mm high
Measuring unit: mm or inch (switchable)
Feeler shape and surface pressure: According international Standards DIN, EN and ISO
Output signal: USB (Sub-D9 socket)
Power supply dial gauge: Sub-D9/USB adapter cable
Power supply motor: AC adapter 100 – 250 V AC
Temperature range: 10 – 45 °C
Air humidity: 85 % RH, max.
Dimensions: 300 x 240 x 300 mm (LxWxH)
Weight, net (gross): Approx. 23 kg (26 kg)

Specifications subject to change without notice!

OPTIONAL ATTACHMENT

Code R Higher resolution 0.001 instead of 0.01 mm
Code E25 Higher measuring range 0 – 25 mm
Code E50 Higher measuring range 0 – 50 mm
DKD-Cal Calibration report from a DAkkS authorized laboratory

STANDARD ACCESSORIES

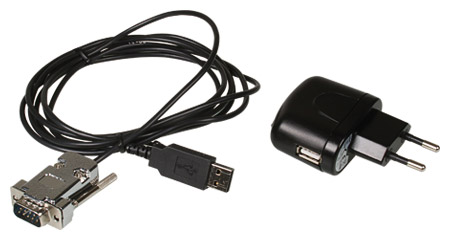

Adapter Cable

from Sub-D9 to USB for data transfer to a PC.
The cable also serves the power supply via PC or by using it with the adapter plug at a power source.
Order number: 35008W

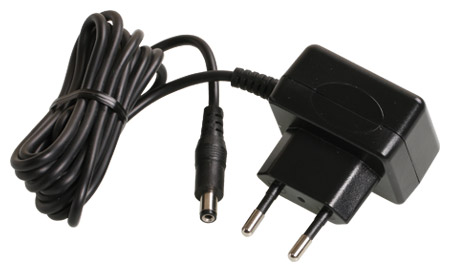

 AC adapter

AC adapter for power supply of the motor with 100 – 250 V AC.

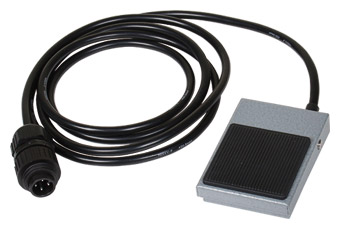

 Pedal Switch

Pedal switch for moving the motorized feeler.

SOFTWARE OPTIONAL

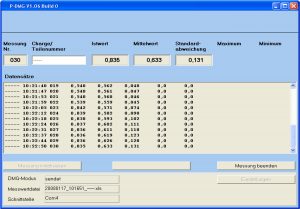

Software P-DMG

Software for data transfer, displaying and analysis of measured data on PC

  • Adjusting menu:
    – Language (German/English)
    – Data storage
    – Charge No
  • Statistical analysis:
    – Actual value
    – Average value
    – Standard deviation
    – Maximum
    – Minimum
    – Register of all readings
  • Data storage in Excel is possible
    Order number: SW-50

DELIVERY INCLUDES

Thickness Gauge D-2005 with transport packing case, Sub-D9/USB adapter cable, USB AC adapter, AC adapter, switch pedal, calibration report of manufacturer and operating instructions in English or German
