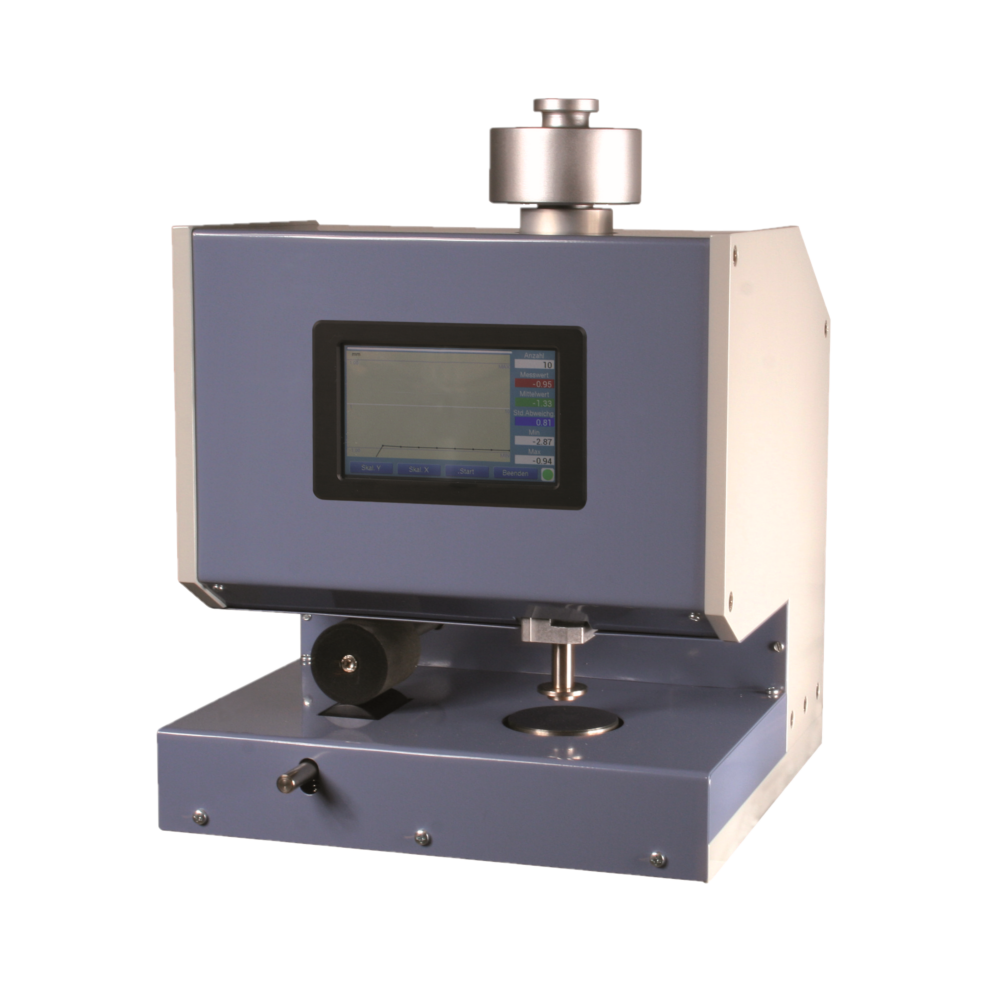

D-2020
Thickness Gauge

Special Features

• The thickness gauge D-2020 is mainly designed for laboratory use; They are working according international DIN, EN, ISO and ASTM standards
• Different measuring feelers and additional weights are available depending on the application area and test standard; on request different standards can be combined in one instrument
• Thickness gauge D-2020 is equipped with graphic display for readings and statistics as well as a motor driven feeding system
• Touch screen for adjusting e. g.:
  – Number of measurings 1 – 250
  – Adjustable measuring range 0 … 10 mm
  – Measuring time 1 – 60 sec.
  – Measuring units mm or inch
  – Travel distanced 10 – 100 mm
  – 2 different travel speeds
• 2 selectable modes:
  – “AUTO” – executing a series of measurements
  – “MAN” – executing a single measurement
• Time saving during series measuring by ideal set up according the measuring task (motorized feeler, adjustable measuring time and adjustable measuring path)
• Adjustable, automatic material feed by series of measurements (travel distance: 10 – 100 mm, speed: slow or fast)

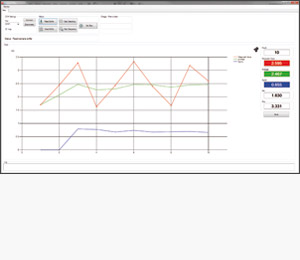

• Statistical analysis of series of measurement (Number of measurings, average value, min, max, standard deviation)
• 2 display modes:
  – numeric
  – numeric and graph
• Interface:
  – USB for data transmission
  – RS-232 for printer
• The standard measuring range is 0 – 10 mm; 25 is optional available
• The standard resolution is 0.001 mm

Standard Features

• Robust, bend-resistant device construction, encapsulated against external influences, e.g. shock; this ensures maximum measurement and repeatability
• Thickness gauge D-2020 with selectable measuring units mm / inch
• The display language can be changed between German and English
• Easy to use
• Calibration report for free, DAkkS inspection certificate optional

 Available Models

Model	Standard	Application	Feeler Ø mm	Feeler cm²	Test Pressure
D-2020-T	DIN EN ISO 5084	Textiles	50.42	20	0.1 kPa and 1 kPa
D-2020-V	DIN EN ISO 9073-2	Standard fleece	56.42	25	0.1 and 0.5 kPa
D-2020-G1	DIN EN ISO 9863-1	Geomaterials	56.42	25	2 kPa
D-2020-NW	EN ISO 9073-2	Non-woven textiles	56.42	25	0.5 kPa and 1 kPa
D-2020-P	DIN EN ISO 534	Paper	16	2	50 kPa and 100 kPa
D-2020-HY	DIN EN ISO 54540	Hygienic paper	56.42	25	2 kPa
D-2020-L	DIN EN ISO 2589	Leather	10	0.785	49,1 kPa
D-2020-Gi		Rubber	35.68	10	5 kPa
			Feeler Calotte
D-2020-F	DIN 53370	Foil	R 30 mm		0.5 N

We also supply custom designed models, which cover different standards within one instrument. Please inform us, which standards you use and what measuring force and feeler size is required. We will send you our suggestion.
The device is also available as mechanical thickness gauge D-1000 and D-2000, as well as motorized thickness gauge D-2005, D-2006 and D-2010 without automatic material feed.

Here you can find a comparison table.
