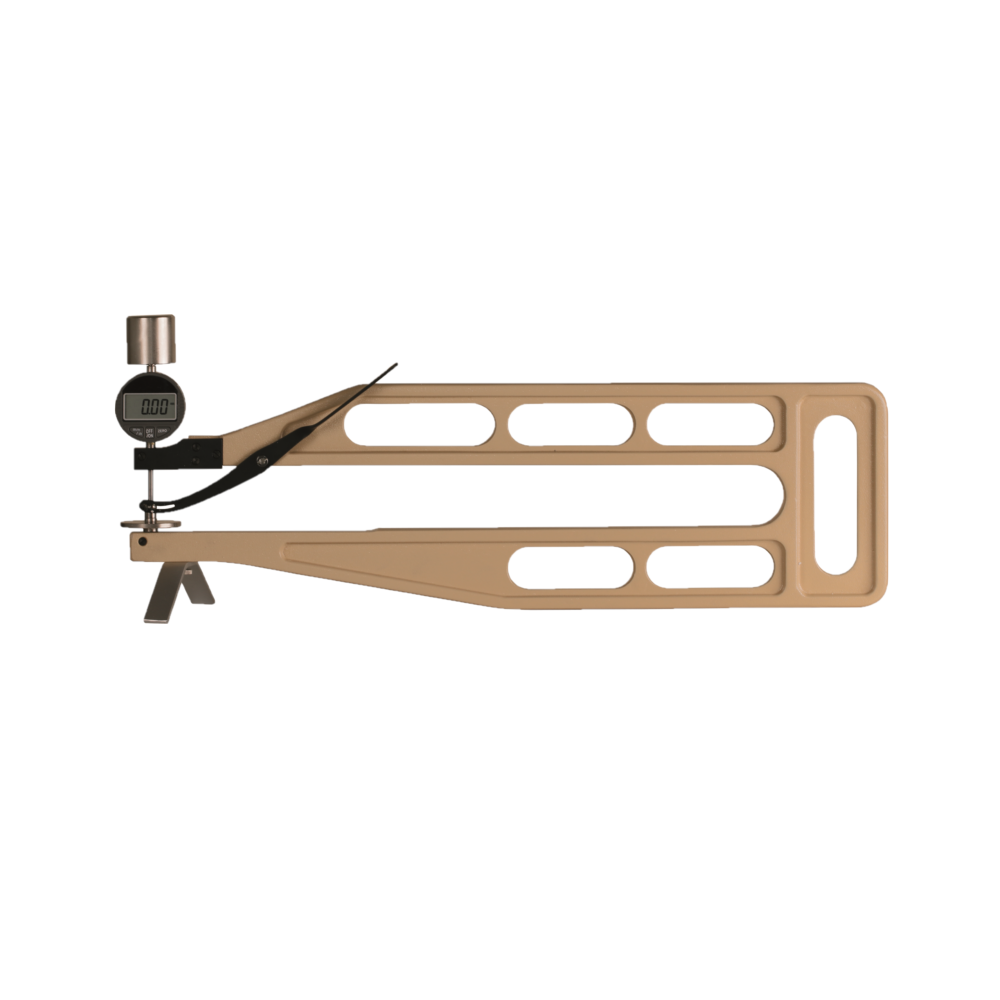

DD-500
Thickness Gauge

Special Features

• Thickness gauge DD-500 features an easy to read digital display along with the high accuracy
• The thickness gauge is available with different feelers and measuring pressure according the material to be used
• Standard measuring range up to 10 mm; optional 25 mm (code E) is available
• The instrument is equipped with a swing-out foot for on-table operation
• USB interface for data transfer to PC
• Opening by lifting device (lever) – self closing thickness gauge DD-500

 Standard Features

• Easy to use
• Digital display with selectable units of measurement (mm or inch)
• Zero setting by pushing a button

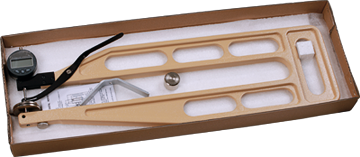

• Manufacturer calibration report is included

 Available Models

Model	Standard	Measuring Range	Depth of jaw	Application	Feeler Ø in mm	Feeler cm²	Pressure
DD-500-T	similar to DIN EN ISO 5084	0 – 10 mm 0.4 Inch	500 mm	Textiles and Non- woven textiles	50.42	20	1 kPA
DD-500-V	similar to DIN EN ISO 9073-2	0 – 10 mm 0.4 Inch	500 mm	Standard fleece	56.42	25	0.5 kPA
DD-500-L	similar to DIN EN ISO 2589	0 – 10 mm 0.4 Inch	500 mm	Leather	10	0.785	49.1 kPA

 Please indicate when the optional measuring range 0 – 25 mm (e. g. DD-500-T Code E) is required.
The thickness gauge is available with 50 mm, 200 mm or 300 mm depth of jaw .
