Special Features

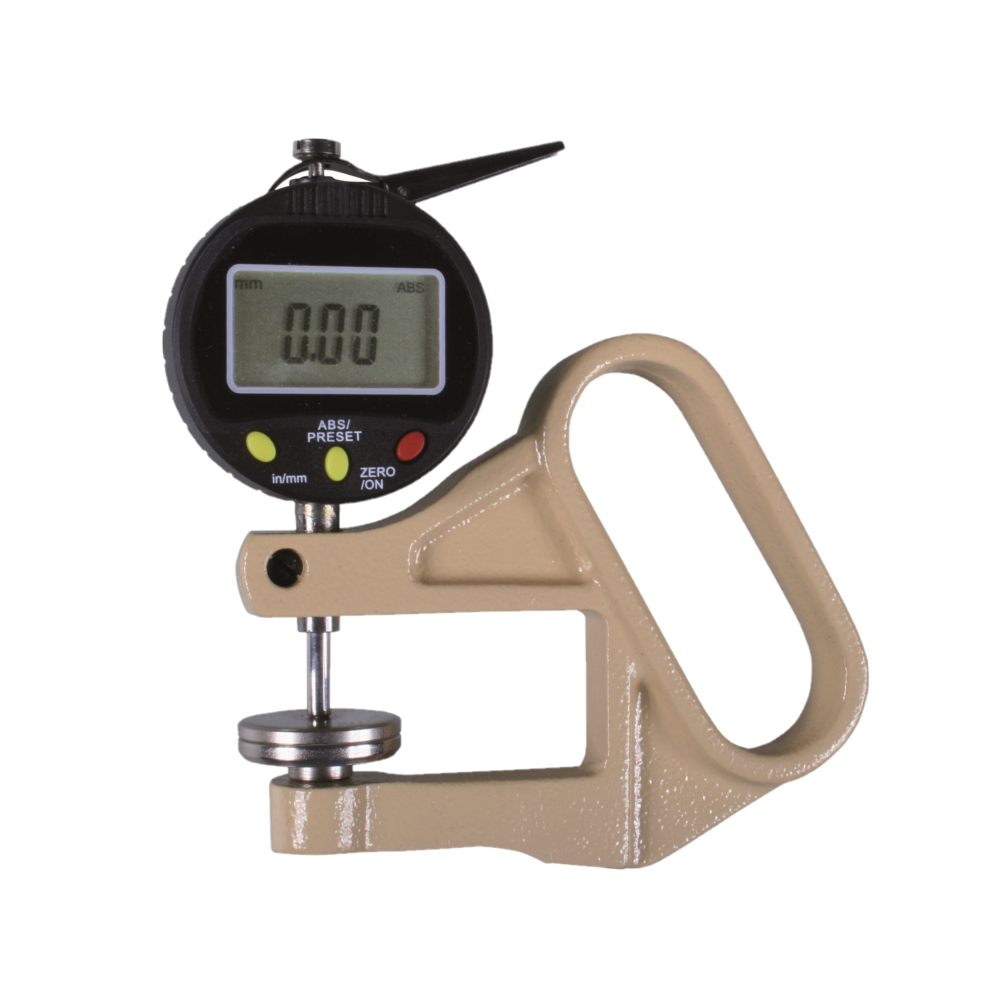

- Thickness gauge DMD-3 features an easy to read digital display along with the high accuracy
- The thickness gauge is available with 5 different feelers, which can be found below
- Measuring by spring force approx. 2 N
- Opening by lifting device (lever) – self closing thickness gauge DMD-3
- The thickness gauge is optional available with a foot (Code F) for on table use
- Output signal: USB
Standard Features
- LCD display with user selectable units of measurement (mm or inch)
- Zero setting by pushing a button
Available Models
| Model | Measuring Range |
Resolution | Depth of Jaw |
|
| DMD-3 | 10 mm 0.4 inch |
0.01 mm 0.0005 inch |
50 mm | |
| alternative | ||||
| DMD-3-1 | 25 mm 1 inch |
0.01 mm 0.0005 inch |
50 mm | |
| DMD-820 | 10 mm 0.4 inch |
0.01 mm 0.0005 inch |
200 mm | |
| DMD-820-1 | 25 mm 1 inch |
0.01 mm 0.0005 inch |
200 mm | |
| DMD-830-F | 10 mm 0.4 inch |
0.01 mm 0.0005 inch |
300 mm | |
| DMD-830-1-F | 25 mm 1 inch |
0.01 mm 0.0005 inch |
300 mm | |
| DMD-850-F | 10 mm 0.4 inch |
0.01 mm 0.0005 inch |
500 mm | |
| DMD-850-1-F | 25 mm 1 inch |
0.01 mm 0.0005 inch |
500 mm |
To order, please indicate the desired feeler, e.g. DMD-3-B for gauge with feeler “B”
Thickness gauge DMD-3 can optionally be equipped with an additional weight, to achieve a measuring pressure according international standards:
DD-50-T for DIN EN ISO 5084 (textiles)
DD-50-V for DIN EN ISO 9073-2 (standard fleece)
DD-50-L for DIN 2589 (leather)

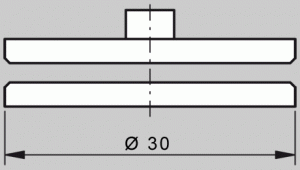

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm
For rubber, felt*, soft materials*, non wovens*, etc.
Suitable for rubber, felt*, soft materials*, non wovens*, etc. diameter 20 mm
For soft leather, cardboard, paper, foils, etc., diameter 10 mm
Suitable for sheet metal, etc. radius 1.5 mm
For hard leather, plywood, fiberboard, etc., radius 6 mm
Software for data transfer, displaying and analysis of measured data on PC
Data cable USB used for data transfer via USB interface
